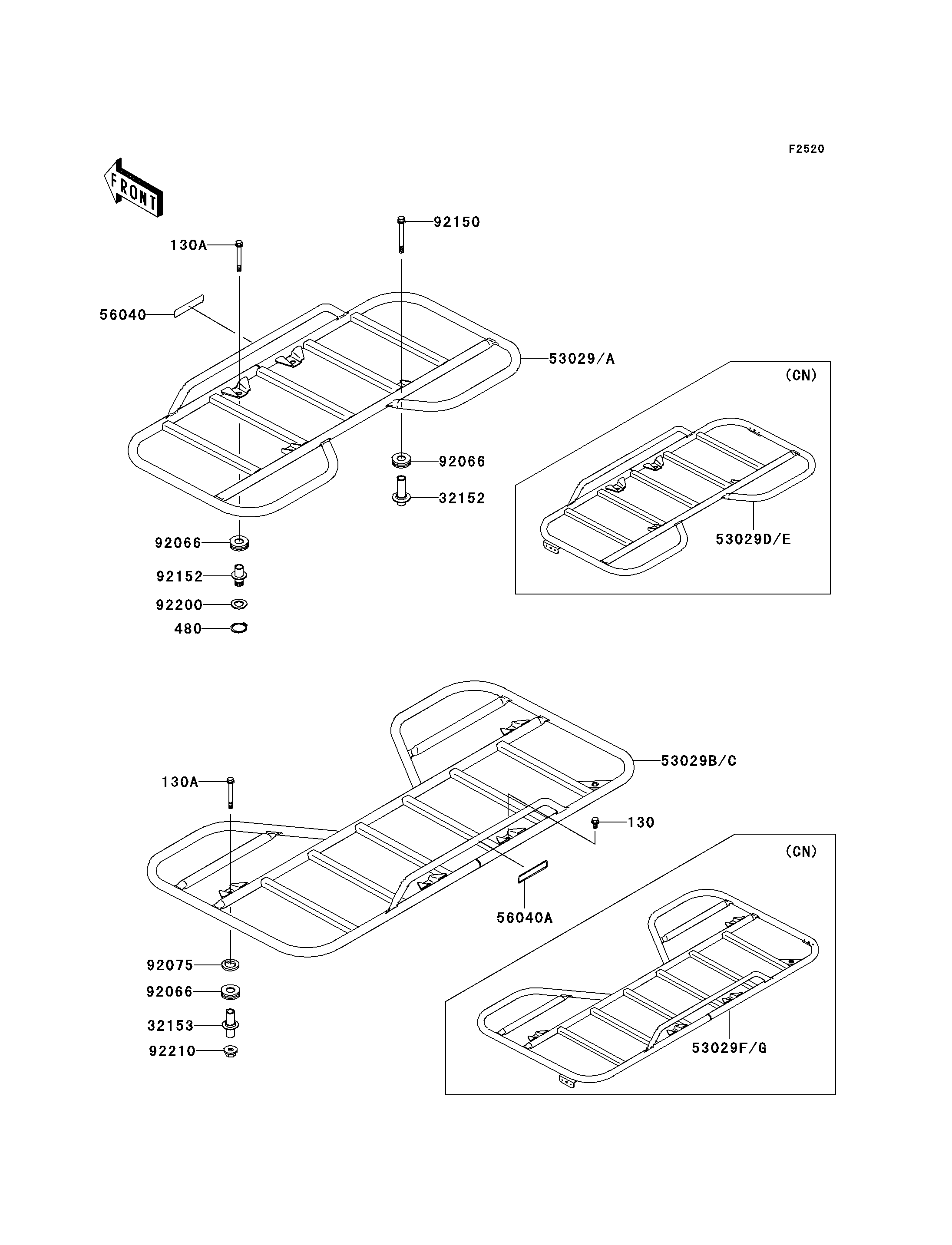

2003 Prairie 360 4X4 Advantage Classic - Carrier(s)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130S0814 | 2 | ||
| BOLT-FLANGED | 130A | 130S0865 | 4 | ||
| CIRCLIP-TYPE-C,17MM | 480 | 480J1700 | 2 | ||
| PIPE,FRONT CARRIER | 32152 | 32152-1067 | 2 | ||
| PIPE | 32153 | 32153-7527 | 2 | ||
| LABEL-WARNING,MAXIMUM LOAD | 56040 | 56040-1321 | 1 | ||
| LABEL-WARNING,MAXIMUM LOAD | 56040A | 56040-1322 | 1 | ||
| PLUG | 92066 | 92066-1438 | 6 | ||
| DAMPER | 92075 | 92075-1842 | 2 | ||
| BOLT,FLANGED,8X80 | 92150 | 92150-1808 | 2 | ||
| COLLAR,L=42.5 | 92152 | 92152-7504 | 2 | ||
| WASHER,18.5X32X2.3 | 92200 | 92200-1043 | 2 | ||
| NUT,FLANGED,LOCK,8MM | 92210 | 92210-0005 | 2 | ||
| CARRIER,FR,S.GOLD | 53029 | 53029-7501-UF | 1 | US | |
| CARRIER,RR,S.GOLD | 53029B | 53029-7502-UF | 1 | US | |
| CARRIER,FR,S.GOLD | 53029D | 53029-7503-UF | 1 | CN | |
| CARRIER,RR,S.GOLD | 53029F | 53029-7504-UF | 1 | CN |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,17MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE,FRONT CARRIER | |
| REF # | 32152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,MAXIMUM LOAD | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,MAXIMUM LOAD | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X80 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=42.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.5X32X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,LOCK,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CARRIER,FR,S.GOLD | |
| REF # | 53029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARRIER,RR,S.GOLD | |
| REF # | 53029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CARRIER,FR,S.GOLD | |
| REF # | 53029D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CARRIER,RR,S.GOLD | |
| REF # | 53029F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
