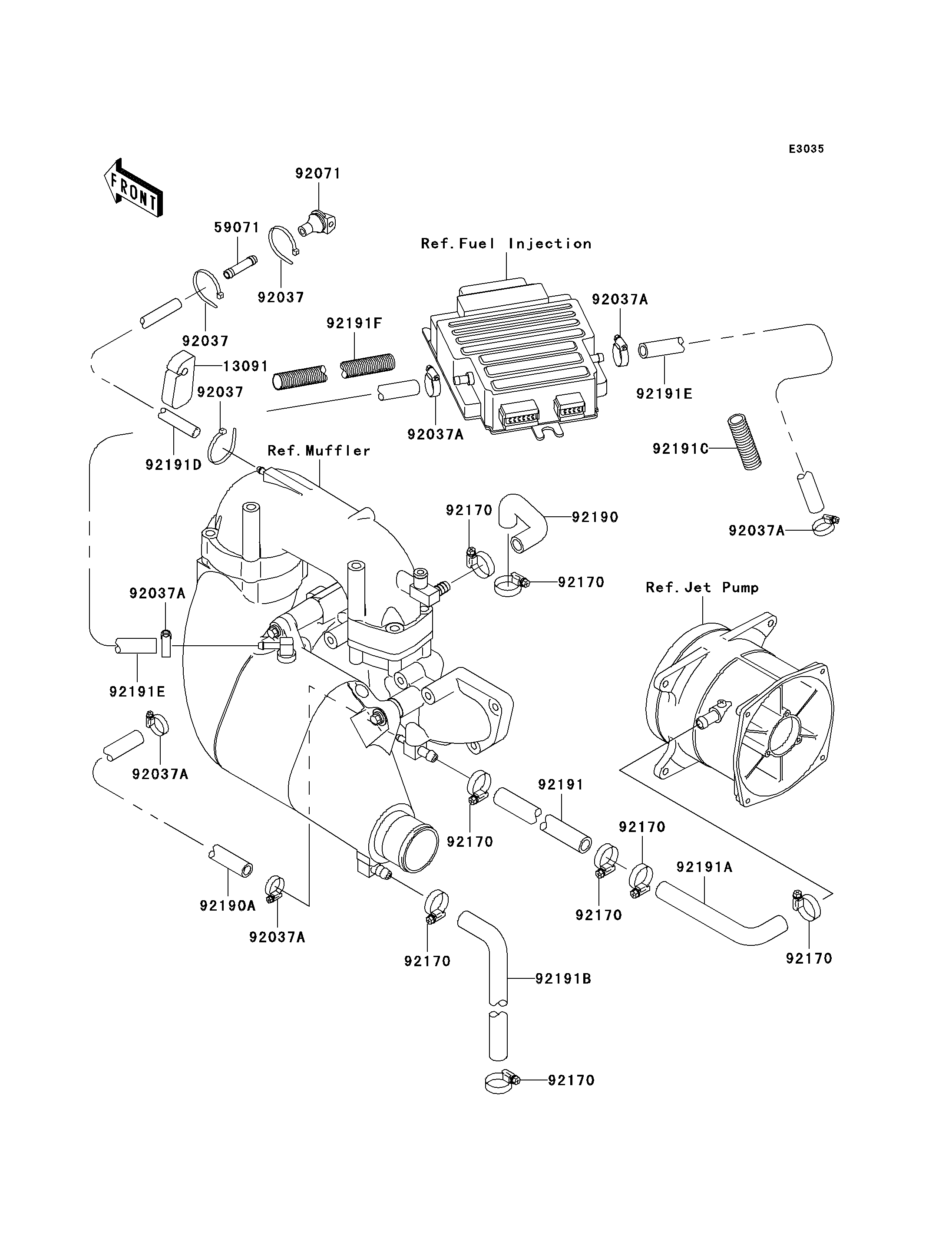

Parts Diagrams |
13091
59071
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92071
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190A
92191
92191A
92191B
92191C
92191D
92191E
92191E
92191F
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3712 | 1 | ||
| JOINT | 59071 | 59071-3764 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 3 | ||
| CLAMP | 92037A | 92037-3726 | 6 | ||
| GROMMET | 92071 | 92071-3815 | 1 | ||
| CLAMP | 92170 | 92170-3718 | 8 | ||
| TUBE,HEAD-EXHAUSTPIPE | 92190 | 92190-3955 | 1 | ||
| TUBE,MANIFOLD-COVER | 92190A | 92190-3974 | 1 | ||
| TUBE,EXHAUSTMANIFOLD-HULL | 92191 | 92191-3745 | 1 | ||
| TUBE,PUMP-HULL | 92191A | 92191-3785 | 1 | ||
| TUBE,CHAMBER-TAIL PIPE | 92191B | 92191-3850 | 1 | ||
| TUBE | 92191C | 92191-3868 | 1 | ||
| TUBE,7X12X1590 | 92191D | 92191-3874 | 1 | ||
| TUBE,5.8X11.8X620 | 92191E | 92191-3875 | 2 | ||
| TUBE | 92191F | 92191-3916 | 1 |
