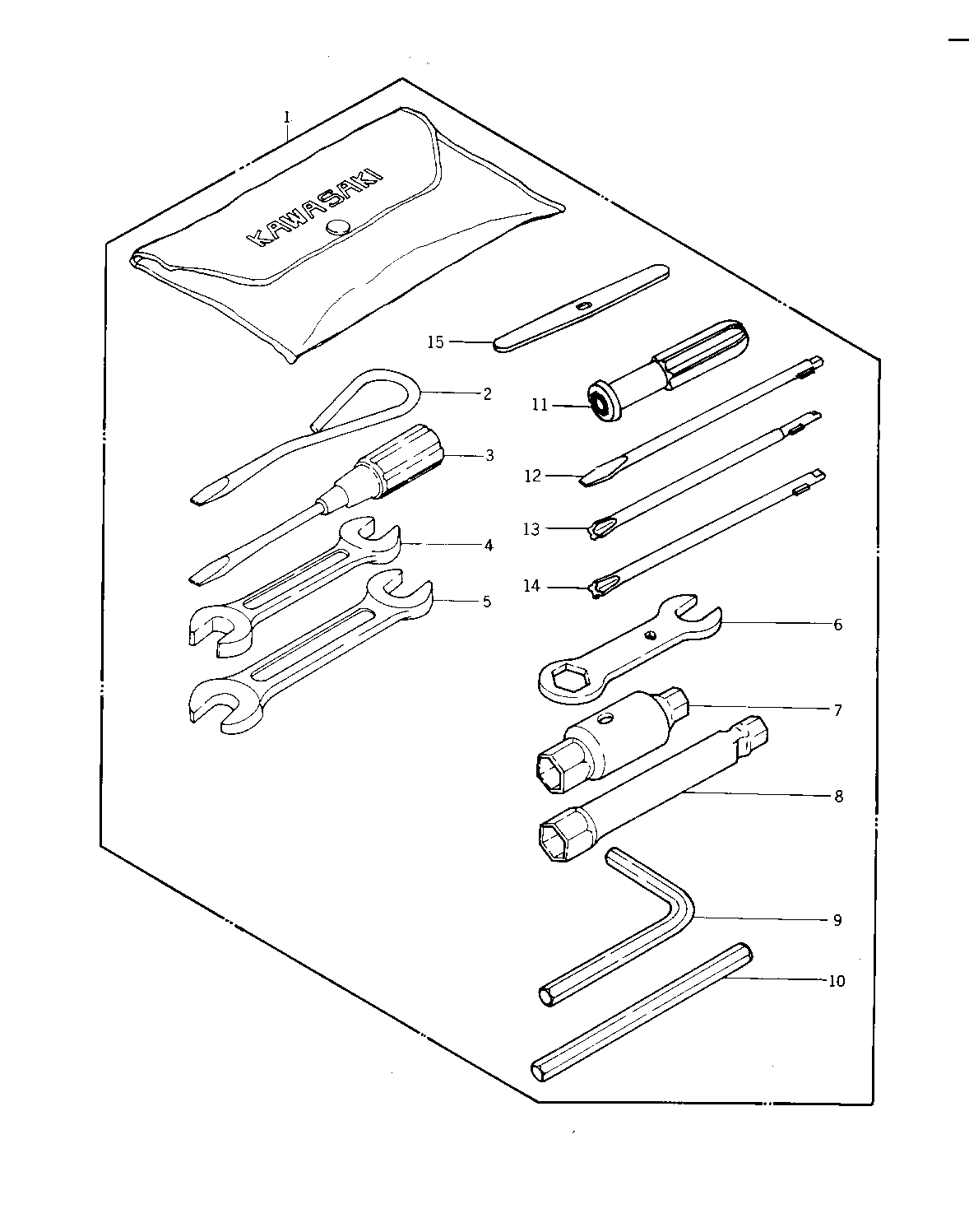

1978 JS440 - OWNER TOOLS ('77-'78 A1/A1A/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOLKIT | 1 | 56007-3706 | |||
| TOOLKIT | 1 | 56007-3706 | HULL I.D. 101870177~ | ||
| DRIVER(-) | 2 | 92107-501 | USE FOR 56007-503 | ||
| DRIVER(-) | 3 | 954F0400 | USE FOR 56007-503 | ||
| UNAVAILABLE IN PRICE BOOK | 4 | 960B1013 | |||
| UNAVAILABLE IN PRICE BOOK | 5 | 960B1722 | |||
| WRENCH,BOX 27X32 | 6 | 92108-503 | |||
| WRENCH,SOCKET 20X27 | 7 | 92110-502 | |||
| WRENCH,SOCKET 8X10 | 8 | 92110-503 | |||
| WRENCH,HEXAGON | 9 | 92127-503 | |||
| UNAVAILABLE IN PRICE BOOK | 10 | 92111-502 | |||
| 92106-1001 (Canada) | 11 | 92106-004 | USE FOR 56007-504 | ||
| 92107-1052 (Canada) | 12 | 92107-007 | USE FOR 56007-504 | ||
| TOOL-DRIVER | 13 | 92107-1052 | USE FOR 56007-504 | ||
| 92107-1002 (Canada) | 14 | 92107-008 | USE FOR 56007-504 | ||
| LEVER,SCREW DRIVER | 15 | 92111-006 | USE FOR 56007-504 |
| TOOLKIT | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TOOLKIT | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | HULL I.D. 101870177~ |
| DRIVER(-) | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-503 |
| DRIVER(-) | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-503 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WRENCH,BOX 27X32 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WRENCH,SOCKET 20X27 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WRENCH,SOCKET 8X10 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WRENCH,HEXAGON | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| 92106-1001 (Canada) | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-504 |
| 92107-1052 (Canada) | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-504 |
| TOOL-DRIVER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-504 |
| 92107-1002 (Canada) | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-504 |
| LEVER,SCREW DRIVER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 56007-504 |
