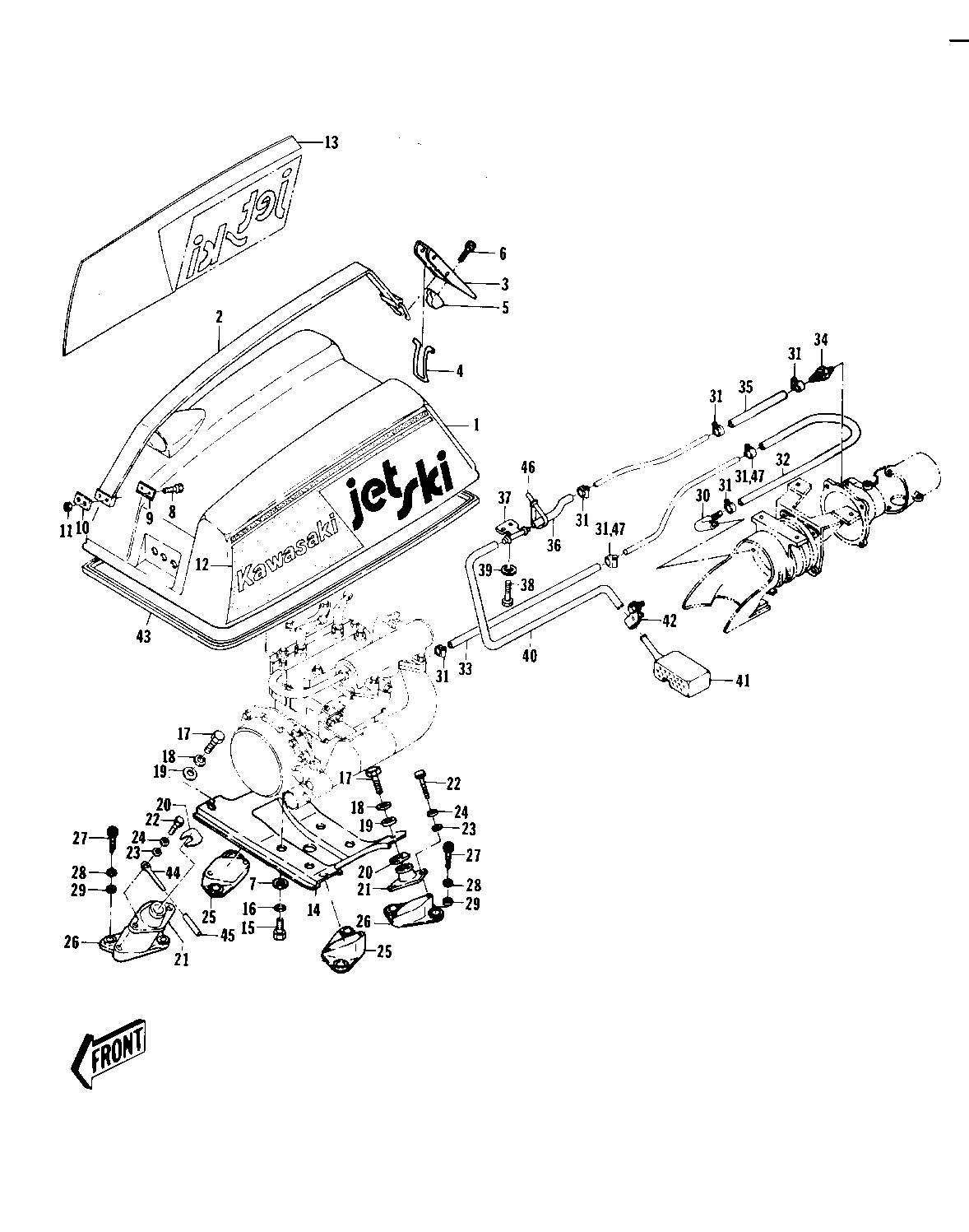

1978 JS440 - ENGINE HOOD/COOLING & BILGE ('77-'78 A1/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOOD-COMP-ENGINE,JET 1 59456-3719-8C
HOOD-COMP-ENGINE,JET 1 59456-3719-8C HULL I.D. 150001277~
BAND,HOOD 2 92072-3746
LEVER 3 13168-3701
HINGE-HOOD LEVER 4 53009-503
DETENT-HOOD LEVER 5 59346-503
SCREW 0.16X0.5 6 92011-562
WASHER 7 411S1400
BOLT,6X30 8 92001-3022
WASHER,BAND 9 92022-509
PLATE-ENG. CVR. STRAP 10 59086-501
NUT,6M/M 11 311R0600
NUT,6M/M 11 311R0600 HULL I.D. 162000178~
DECAL-ENG COVER,LH 12 56027-536
DECAL-ENG COVER,RH 13 56027-535
BED,ENGINE 14 59181-509-9G
BOLT 1/2 IN.X31 15 92003-533
WASHER-SPRING,14MM 16 461S1400
BOLT 10X25 17 110R1025
WASHER-SPRING,10MM 18 461S1000
WASHER,O32XO10.5X4T 19 92022-3023
SHIM,T=0.3 20 92025-3701
SHIM,T=0.3 20 92025-3701
SHIM.T=0.5 20 92025-3702
SHIM,T=1.0 9 92025-3703
DAMPER,ENGINE MOUNT 21 92160-3756
BOLT,8X20 22 110R0820
WASHER 23 411S0800
WASHER SPRING 8MM 24 461S0800
BRACKET-ENGINE BED 25 59016-532
BRACKET-ENGINE BED 26 59016-533
BOLT 8X22 27 92003-528
WASHER SPRING 8MM 28 461S0800
WASHER 29 411S0800
ELBOW 30 52014-503
ELBOW-WATER HOSE 30 52014-3002 HULL I.D. 162000178~
CLAMP,HOSE 31 92037-504
CLAMP,HOSE 31 92037-504 HULL I.D. 101870177~
CLAMP,HOSE 31 92037-504 HULL I.D. 150001277~
HOSE,WATER (1) 32 92059-503
HOSE,WATER (3) 33 92059-534
HOSE,BILGE (2) 33 92059-535 HULL I.D. 101870177~
JOINT,HOSE 34 92005-3001
JOINT,HOSE 34 92005-3001 HULL I.D. 162000178~
HOSE,BILGE (3) 35 92059-536
TUBE,9X16X90 35 92059-557 HULL I.D. 101870177~
HOSE,WATER (1) 36 92059-503
BREATHER-BILGE LINE 37 43056-501
SCREW 0.16X0.5 38 92011-562
WASHER 39 92022-563
HOSE,BILGE (1) 40 92059-506
FILTER,BILGE PUMP 41 59236-504
CLAMP 42 92037-537
GROMMET 43 92071-532 NOT REQ. FOR HULL I.D.
CLAMP,LEAD WIRE 44 92037-3006 HULL I.D. 162000178~
TUBE,VINYL,5X73 45 92059-3017 HULL I.D. 162000178~
BAND,MIDDLE 46 92072-031 HULL I.D. 162000178~
CLAMP,HOSE 47 92037-504 HULL I.D. 150001277~
