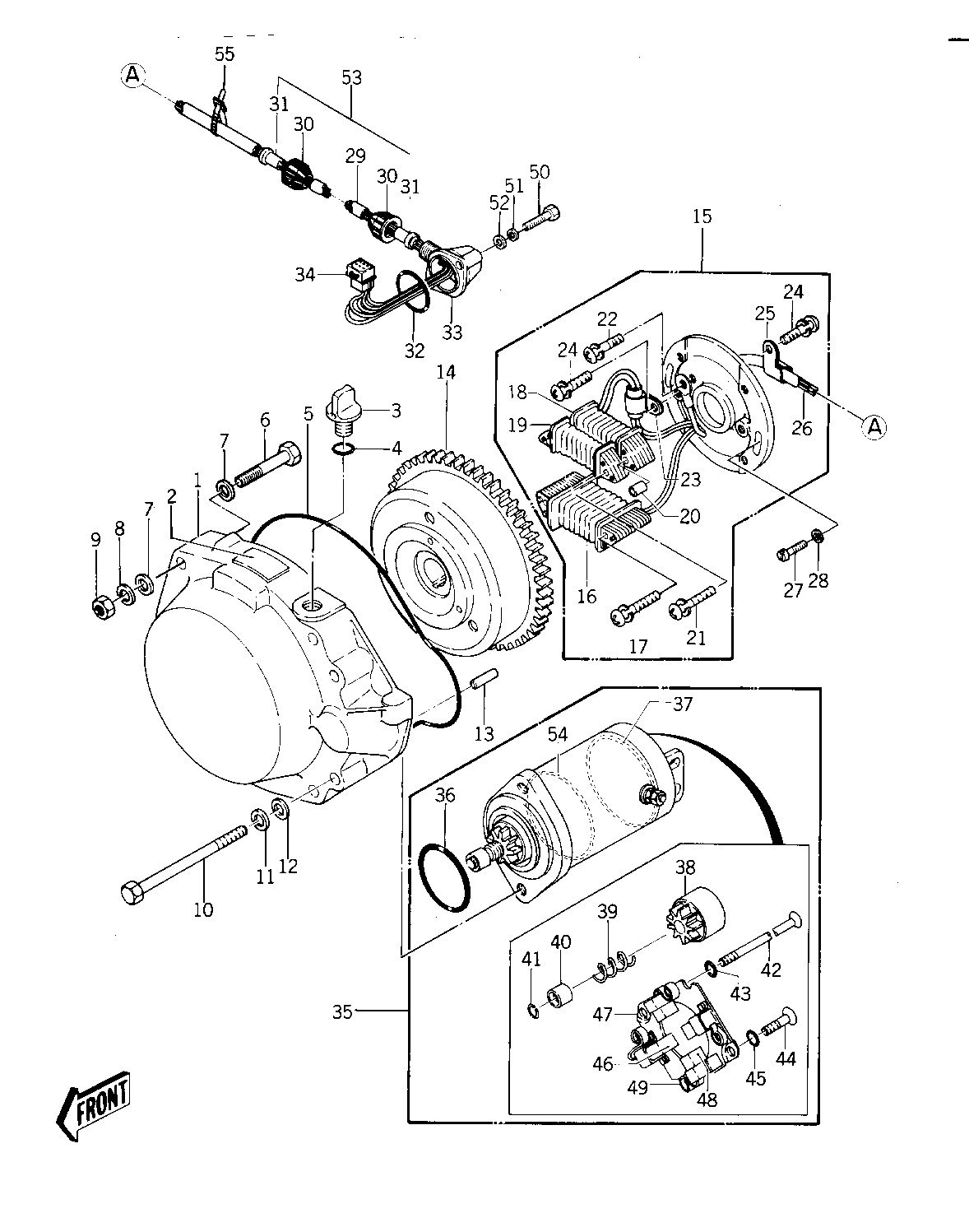

1978 JS440 - GENERATOR/STARTER MOTOR ('77-'78 A1/A1A/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-GENERATOR 1 14031-3705
LABEL,HORSE POWER 2 56019-561
BREATHER 3 14069-3709
"0" RING 4 92055-515
"O" RING 5 92055-521
BOLT 8X50 6 110R0850
WASHER 7 410S0800
WASHER SPRING 8MM 8 461S0800
NUT 8MM 9 311R0800
BOLT,8X80 10 92001-3011
BOLT,8X80 10 92001-3011
WASHER SPRING 8MM 11 461S0800
WASHER 12 410S0800
PIN,DOWEL 13 551R0612
FLYWHEEL ASSY 14 21050-3005 E/NO. TIE93-265249~
FLYWHEEL ASSY 14 21050-3005 E/NO. TC440B-000001~
STATOR ASSY 15 21003-524
COIL,CHARGE 16 59031-501
SCREW 5X34 17 92011-530
COIL,EXCITING 18 21049-506
COIL,PULSING 19 59026-504
COLLAR,COIL 20 92027-509
SCREW 5X40 21 92011-533
SCREW 4X6 22 92011-559
CLAMP 23 92037-520
SCREW 4X8 24 92011-560
CLAMP 25 92037-547
HARNESS,MAGNETO 26 26001-3006
SCREW 5X20 27 232B0520A
WASHER 28 92022-544
CAP-ASSY 29 14075-3001 E/NO. TIE93-265249~
TUBE,10X335 29 92059-3019 E/NO. TIE93-272279~
CAP-ASSY 30 14075-3001 E/NO. TIE93-265249~
CAP 30 11012-3012 E/NO. TIE93-272279~
CAP-ASSY 31 14075-3001 E/NO. TIE93-265249~
GROMMET 31 92071-3001 E/NO. TIE93-272279~
"O" RING 32 92055-520
CAP-MAGNETO HARNESS 33 59176-517-YR
CONNECTOR,CORD 34 59221-506
STARTER-ELECTRIC 35 21163-3710 "S108-43K"
STARTER-ELECTRIC 35 21163-3710 "S108-61"
STARTER-ELECTRIC 35 21163-3710 E/NO. TC440B-000001~
"0" RING,65MM 36 671B2565
"0" RING(4) 37 92055-517
PINION ASSY 38 59051-505 USE FOR 21163-502
PINION ASSY-STARTER 38 59051-3005 USE FOR 21163-503
PINION ASSY-STARTER 38 59051-3005 USE FOR 21163-3001
SPRING,RETURN 39 92081-541
STOPPER,PINION 40 92027-513
RING,SNAP 41 92036-517
SCREW 6X107 42 92011-549
"O" RING,6M/M 43 670B1506
SCREW 4X8 44 92011-550
'O'RING(1) 45 92055-519 USE FOR 21163-502
"O" RING,5MM 45 670B1505 USE FOR 21163-503/21163-3001
BRUSH(+) 46 21039-3003 USE FOR 21163-502
BRUSH(+) 46 21039-3003 USE FOR 21163-503/21163-3001
HOLDER ASSY,BRUSH 47 14079-3002 USE FOR 21163-502
HOLDER ASSY,BRUSH 47 14079-3002 USE FOR 21163-503/21163-3001
BRUSH(-) 48 21039-3004 USE FOR 21163-502
BRUSH(-) 48 21039-3004 USE FOR 21163-503/21163-3001
SPRING,BRUSH 49 92081-540
BOLT,6X36 50 110R0636
WASHER-SPRING,6MM 51 461S0600
WASHER 52 410S0600
CAP-ASSY 53 14075-3001
"0" RING(4) 54 92055-517 USE FOR 21163-3001
BAND,SHORT 55 92072-030
