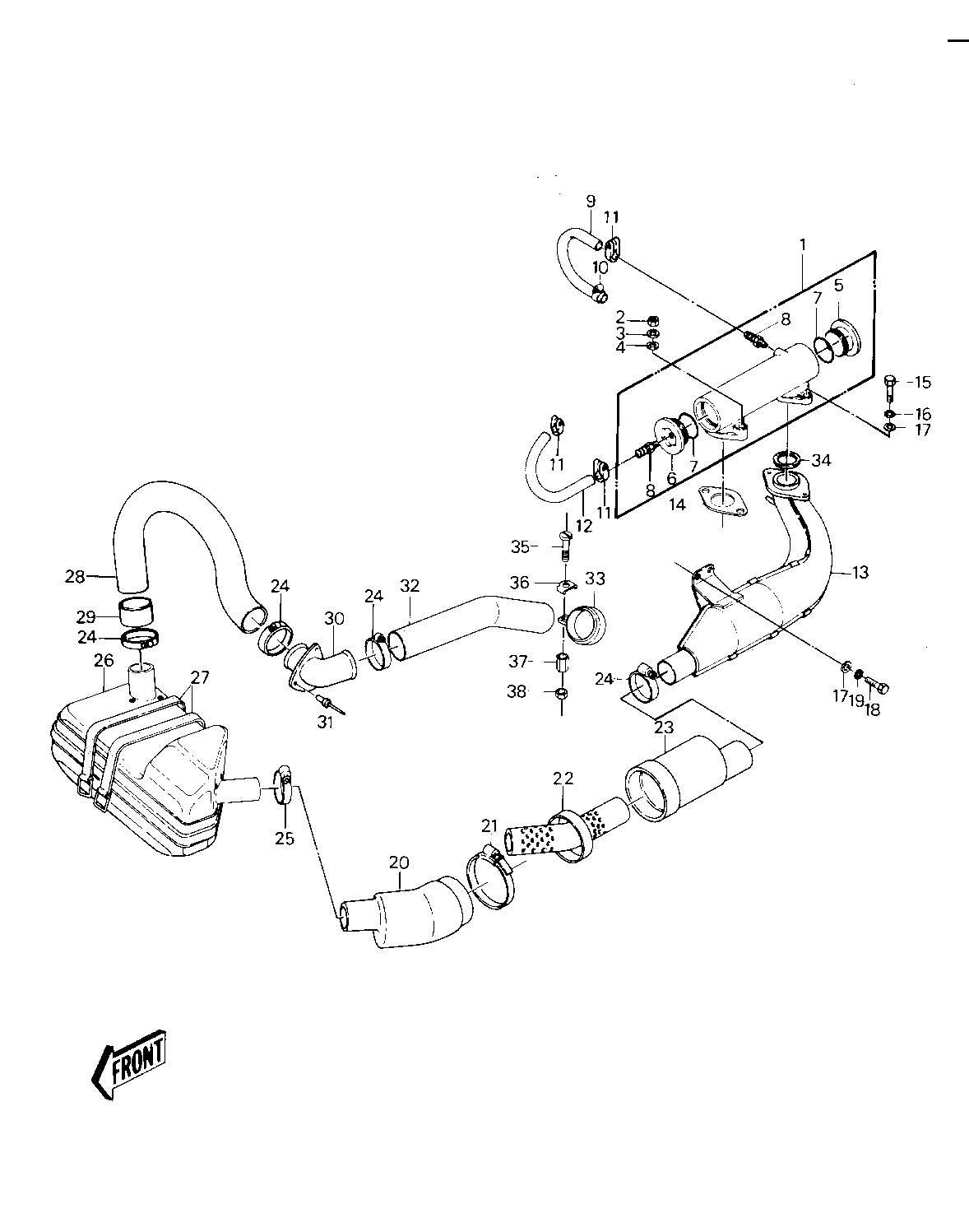

1978 JS440 - MUFFLER ('77-'78 A1/A1A/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-EXHAUST 1 18049-3006-YR
NUT,8 M/M 2 311M0800
NUT,8 M/M 2 311M0800 E/NO. TC440B-000001~
WASHER SPRING 8MM 3 461S0800
WASHER 4 410S0800
PLUG,EXHAUST(1) 5 92066-501-9G
PLUG,EXHAUST(2) 6 92066-502-9G
"0" RING 7 671B2545
JOINT,HOSE 8 92005-3001
JOINT,HOSE 8 92005-3001 E/NO. TC440B-000001~
HOSE 9 92059-523
CLAMP,HOSE 10 92037-504
CLAMP,HOSE 11 92037-504
CLAMP,HOSE 11 92037-504 HULL I.D. 101870177~
HOSE 12 92059-523
EXPANSION CHAMBER 13 18001-520
GASKET,EXHAUST 14 11060-3710
BOLT,8X45 15 110R0845
WASHER SPRING 8MM 16 461S0800
WASHER 17 410S0800
BOLT,8X20 18 110R0820
WASHER SPRING 8MM 19 461S0800
TUBE 20 92059-543
CLAMP 21 92037-541
PIPE-RESNTR. CONNECTR 22 59151-528
TUBE 23 92059-542
CLAMP 24 92037-509
CLAMP,HOSE 25 92037-506
MUFFLER-COMP,WATERBOX 26 49070-3714
BAND 27 92072-511
HOSE 28 92059-528
TUBE 29 92059-550 NOT REQ. FOR E/NO.
PIPE,TAIL 30 59156-506
RIVET 31 59281-506
HOSE,TAIL 32 92059-549
CLAMP 33 92037-545
GASKET,EXHAUST 34 11009-3784
SCREW,6X45 35 214R0645 SLOTTED HEAD
SCREW,6X45 35 92009-3747 PHILLIPS HEAD, HULL I.D.
WASHER 36 92095-513
NUT,6M/M 37 92015-532
NUT,6M/M 38 311R0600
