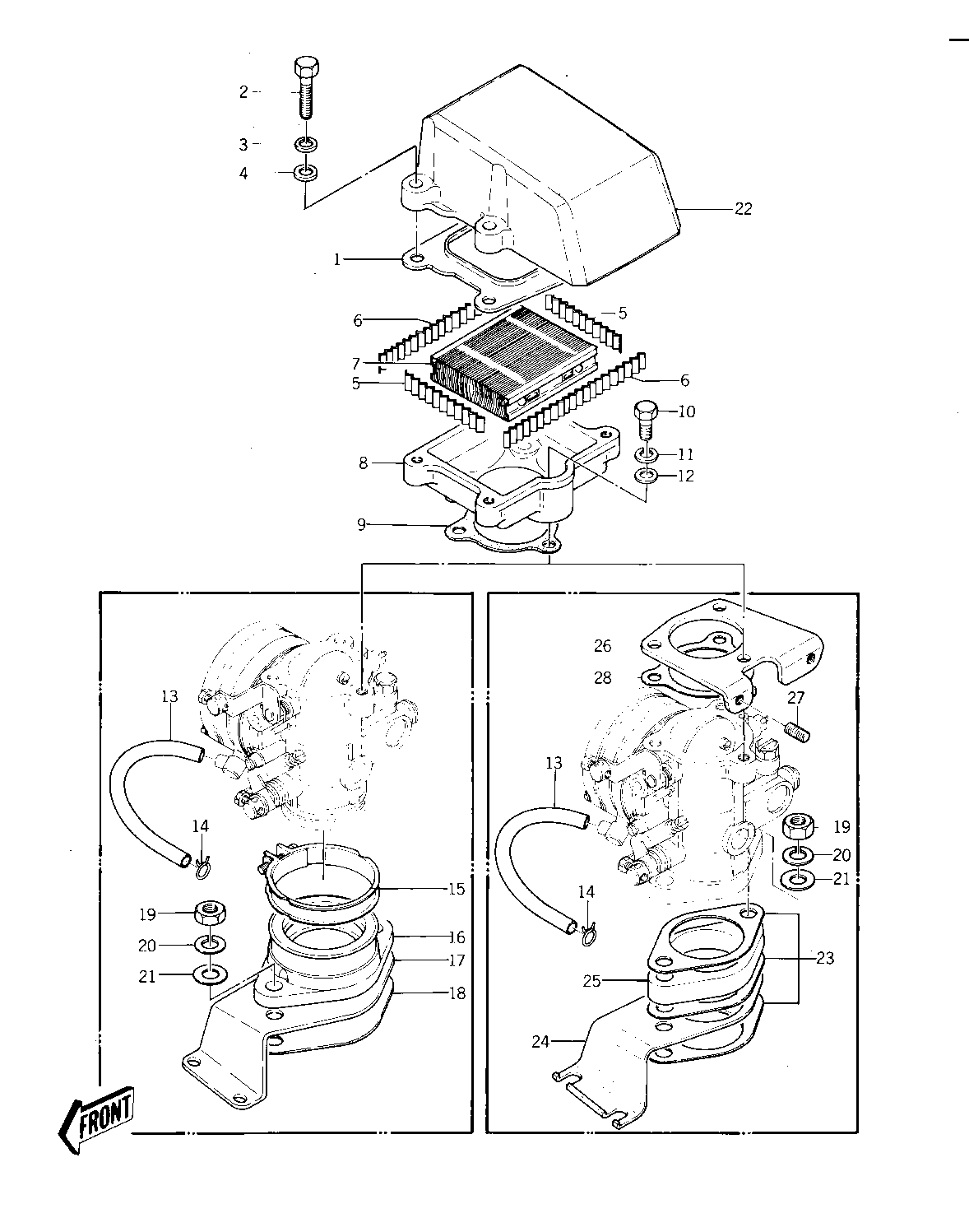

1978 JS440 - CARBURETOR BRACKETS/FLAME ARRESTER ('77-

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,FLAME ARRESTER 1 59086-540
BOLT,6X28 2 110R0628
WASHER-SPRING,6MM 3 461S0600
WASHER 4 410S0600
SPRING 5 92081-544
SPRING 6 92081-545
ARRESTER,FLAME 7 59006-502
CASE,FLAME ARRESTER 8 59021-527-9G
GASKET 9 11060-3702
BOLT 6X20 10 110R0620 E/NO. TIE93-26524
BOLT,HEX HEAD,6X25 10 110R0625 E/NO. TC440B-0000
WASHER-SPRING,6MM 11 461S0600
WASHER 12 410S0600
PIPE,PULS 13 92059-518
CLAMP,SPARK PLUG CAP 14 92037-1173
CLAMP 15 92037-550 E/NO. TIE93-26524
CLAMP 15 92037-550 E/NO. TIE93-26524
HOLDER-CARBURETOR 16 16065-516
BRACKET,CONTROL 17 59016-558 E/NO. TIE93-26524
BRACKET,CONTROL 17 59016-558 E/NO. TIE93-26927
GASKET,INTAKE 18 16062-521
NUT,8MM 19 312R0800
WASHER SPRING 8MM 20 461S0800
WASHER 21 410S0800
COVER,AIR INTAKE 22 59036-563
GASKET,INSULATOR 23 11009-3786 E/NO. TC440B-0000
BRACKET,CONTROL 24 11034-3004 E/NO. TC440B-0000
INSULATOR 25 16061-511 E/NO. TC440B-0000
BRACKET,CARBURETOR 26 11034-3003 E/NO. TC440B-0000
STUD,6X12 27 171R0612 E/NO. TC440B-0000
GASKET 28 11060-3702 E/NO. TC440B-0000
