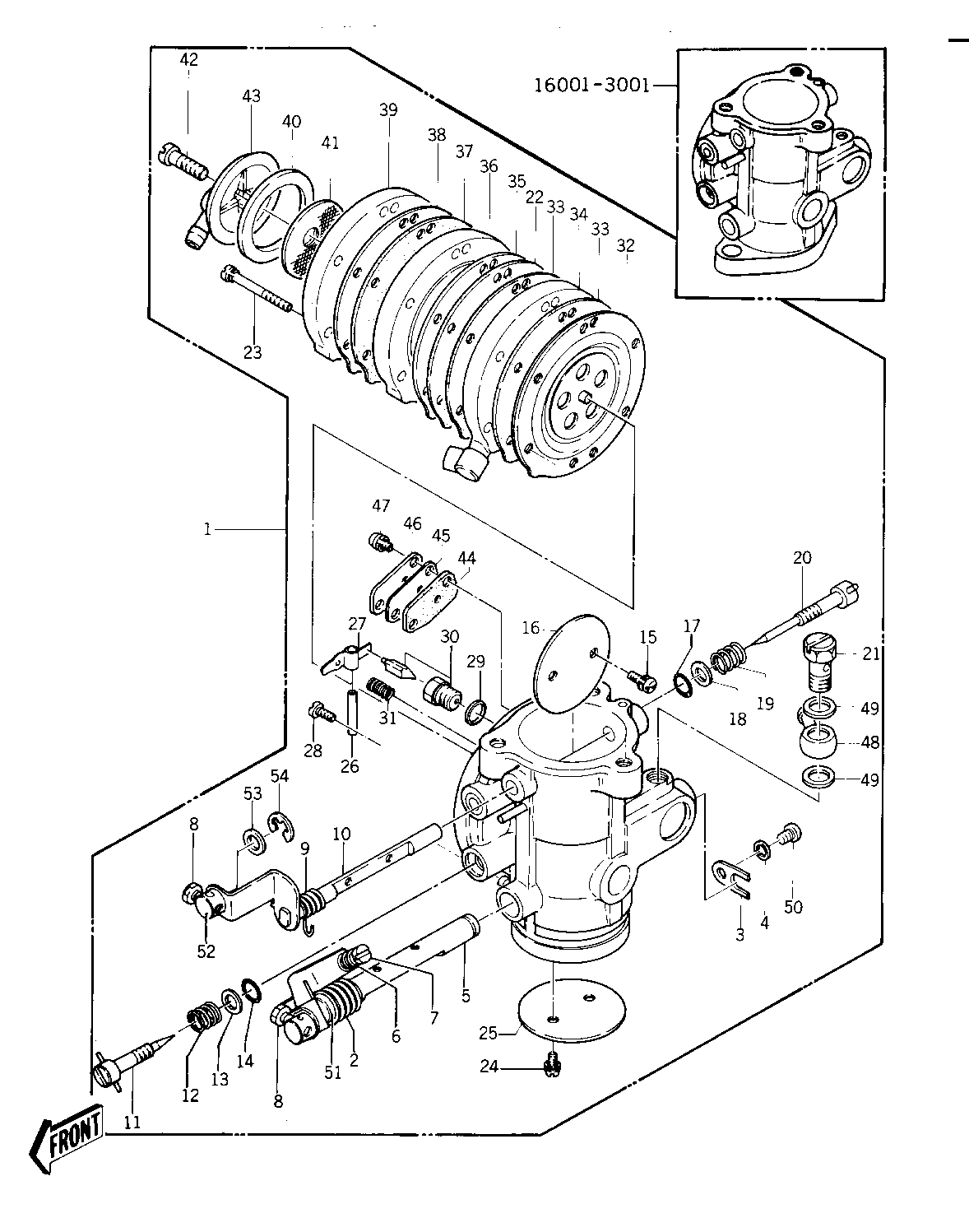

1978 JS440 - CARBURETOR ('77-'78 A1/A1A/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-512 E/NO. TIE93-265249~
CARBURETOR 1 16001-3003-YR E/NO. TC440B-000001~
SPRING,THROTTLE SHAFT 2 92081-547
PLATE,THROTTLE SHAFT 3 59086-543
WASHER SPRING 4MM 4 461F0400
THROTTLE SHAFT ASSY 5 59111-520
SPRING,CABLE PULLY 6 16040-022
SCREW,4X20 7 92009-3009
BOLT,4X8 8 92001-3026
SPRING 9 92081-525
CHOKE SHAFT ASS'Y 10 59111-513
SCREW,LOW SPEED 11 59271-506
SPRING 12 92081-528
WASHER 13 92022-537
"0" RING 14 92055-510
SCREW 3X5 15 92011-517
VALVE,CHOKE 16 16126-3001
"0" RING,DRAIN PLUG 17 92055-1093
WASHER 18 92065-528
SPRING 19 92081-534
SCREW,HIGH SPEED 20 59271-507
BOLT,BANJO 21 92003-521
GASKET 22 11009-3036
SCREW 4X30 23 92011-515
SCREW 3X7 24 92011-516
VALVE,THROTTLE 25 16025-503
FLOAT PIN 26 16032-006
ARM 27 59001-506
SCREW 3X7 28 92011-516
WASHER FLOAT VLV SEAT 29 16029-004
VALVE-SEAT 30 16030-503
SPRING 31 92081-536
DIAPHRAGM,MAIN 32 51069-502
GASKET 33 11060-3704
BODY,DIAPHRAGM(1) 34 59021-514
DIAPHRAGM,PUMP 35 43028-3002
BODY,DIAPHRAGM(2) 36 59336-3002
GASKET 37 11060-3705
DIAPHRAGM,PUMP 38 43028-3001
BODY,DIAPHRAGM(3) 39 59336-3003
GASKET 40 92065-526
FILTER 41 14037-504
SCREW 4X12 42 92011-510
COVER-CARB. SIDE 43 59036-530
GASKET 44 11060-3706
DIAPHRAGM,CHECK SEAT 45 51069-501
PLATE-CARB. SIDE 46 59086-541
SCREW 3X7 47 92011-516
BANJO-CARB 48 59071-505
GASKET-BANJO BOLT 49 92065-078
SCREW PAN HEAD 4X6 50 220B0406
BUSHING,THRTLE SHAFT 51 92028-514
TERMINAL,CHOKE SHAFT 52 21169-3008
WASHER,PLAIN,6NYLON 53 92022-3020
CIRCLIP,5M/M,SUS304 54 92033-3004
