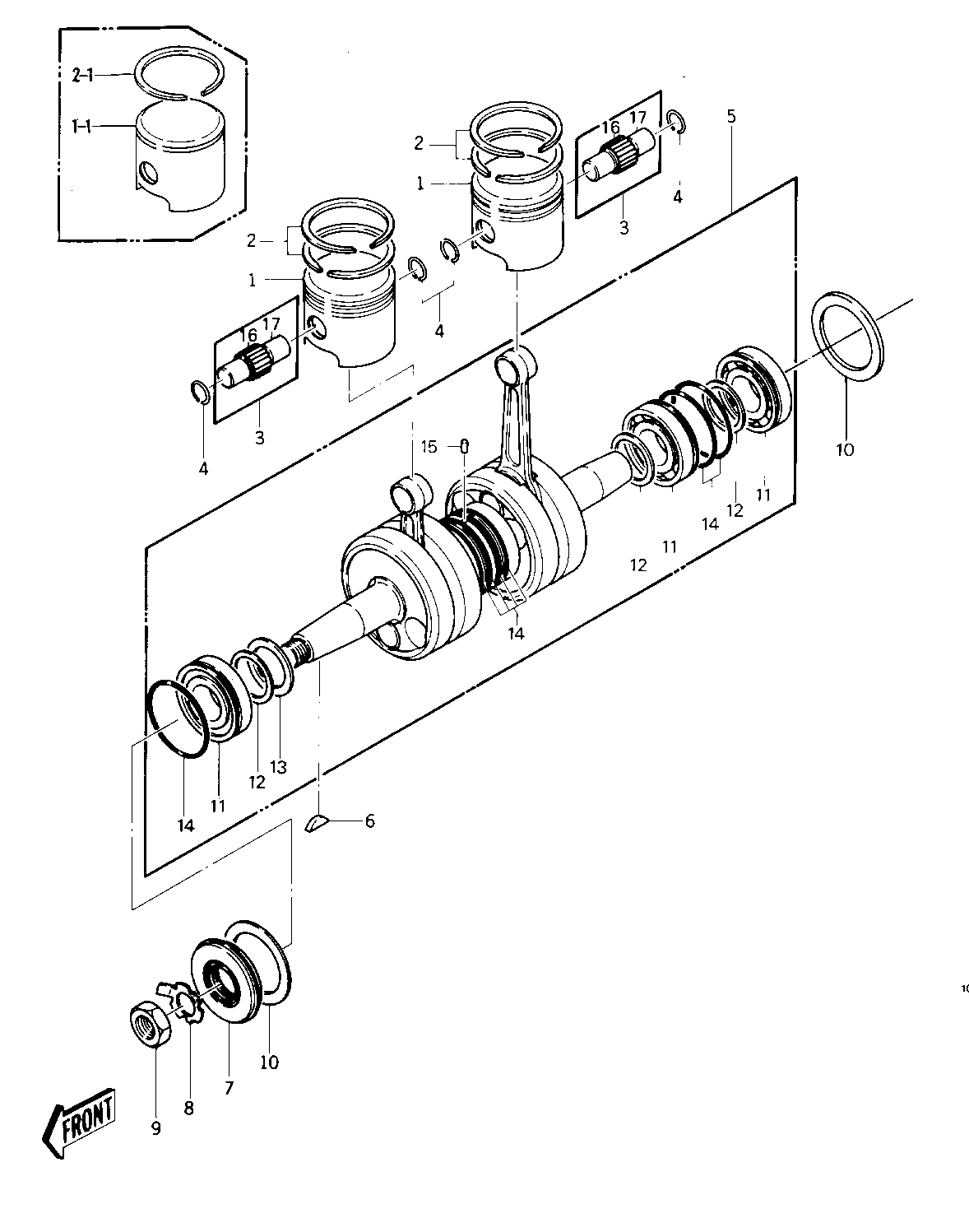

1978 JS440 - CRANKSHAFT/PISTONS ('77-'78 A1/A1A/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 1 13001-6001 USE RING SET 13008
PISTON,0.25,O.S. 1 13030-502 NO LONGER AVAILABLE
PISTON-ENGINE,STD 1-1 13001-3017 USE RING SET 13003
PISTON-ENGINE,0.50 1-1 13029-3001 USE RING SET 13003
PISTON RING SET 2 13008-530 USE FOR 13001-505
PISTON RING SET,0.25 2 13026-502 USE FOR 13030-502
RING-PISTON TOP,STD 2-1 13003-3014 USE FOR 13001-3017
RING-PISTON TOP,0.50 2-1 13003-3015 USE FOR 13029-3001
PISTON PIN SET 3 59146-503 NO LONGER AVAILABLE
CIRCLIP PISTON PIN 4 92036-004
CIRCLIP PISTON PIN 4 92036-004
CRANKSHAFT ASSY 5 13036-523
WOODRUFF KEY 6 510A5200
SEAL,OIL TCY306210 7 92050-507
WASHER,LOCK,20M/M 8 92022-569
NUT,20M/M 9 92015-535
WASHER 10 92022-3021
BEARING-BALL 11 92045-505
SHIM 0.1T 12 92025-513
SHIM 0.2T 12 92025-518
SHIM 0.3T 12 92025-523
SHIM 0.4T 12 92025-527
SHIM 0.5T 12 92025-530
SHIM 0.6T 12 92025-533
SHIM-1.0T 13 92025-532
O-RING 14 92055-504
PIN,DOWEL 15 551A0410
BEARING-SMALL END 16 13033-3005
BEARING-SMALL END 16 13033-3005
PIN-PISTON 17 13002-504
