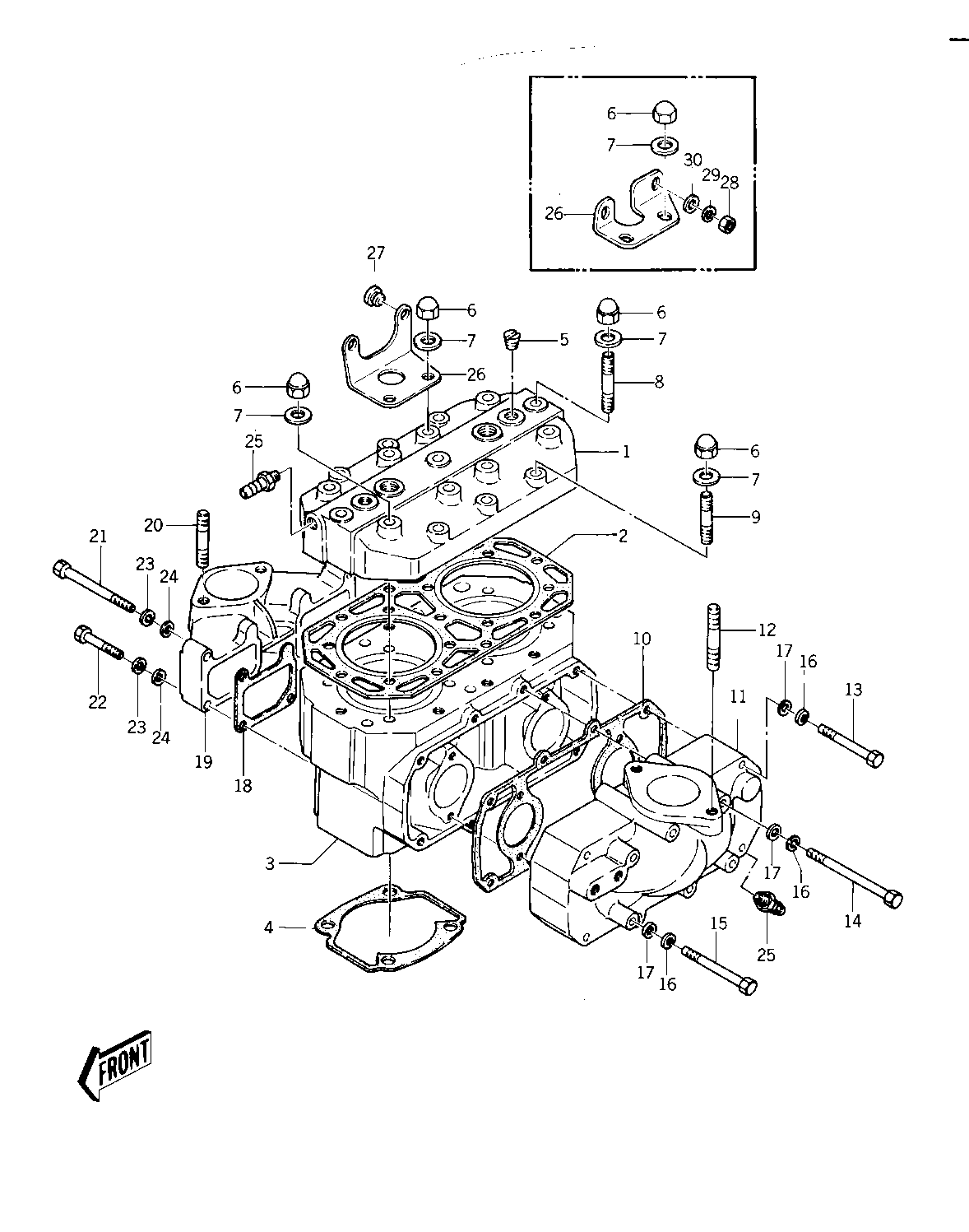

1978 JS440 - CYLINDER HEAD/CYLINDER ('77-'78 A1/A1A/A

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD ASSY,CYLINDER 1 49086-3001
GASKET-HEAD 2 11004-3711
CYLINDER ASSY 3 11005-3033
GASKET-CYLINDER 4 11009-505
PLUG,DRAIN 5 92066-3001
PLUG,DRAIN 5 92066-3001
NUT-CAP,8MM 6 92015-3003
WASHER 7 411S0800
STUD,8X50 8 92004-3010
STUD,8X42 9 92004-3009
GASKET,EXHAUST MANIF 10 11009-3779
MANIFOLD-EXHAUST 11 59081-504-YR
STUD 12 172R0834
BOLT 6X55 13 110R0655
BOLT 6X90 14 110R0690
BOLT 6X75 15 110R0675
WASHER-SPRING,6MM 16 461S0600
WASHER 17 410S0600
GASKET,INTAKE 18 11009-3785
MANIFOLD,INTAKE 19 59076-508 E/NO. TIE93-265249~
MANIFOLD-INTAKE 19 59076-505-YR E/NO. TC440B-000001~
STUD 20 172R0822 E/NO. TIE93-265249~
STUD 20 172R0834 E/NO. TC440B-000001~
BOLT,6X70 21 110R0670
BOLT 6X35 22 110R0635
WASHER-SPRING,6MM 23 461S0600
WASHER 24 410S0600
JOINT,HOSE 25 92005-3001
JOINT,HOSE 25 92005-3001 E/NO. TC440B-000001~
BRACKET,CARBURETOR 26 59016-559 E/NO. TIE93-268279~
BRACKET,CARBURETOR 26 11034-3002 E/NO. TC440B-000001~
DAMPER 27 92075-523 USE FOR 59016-559
NUT,6M/M 28 311R0600 USE FOR 11034-3002
WASHER-SPRING,6MM 29 461S0600 USE FOR 11034-3002
WASHER,PLAIN,6M/M 30 92022-3018 USE FOR 11034-3002
