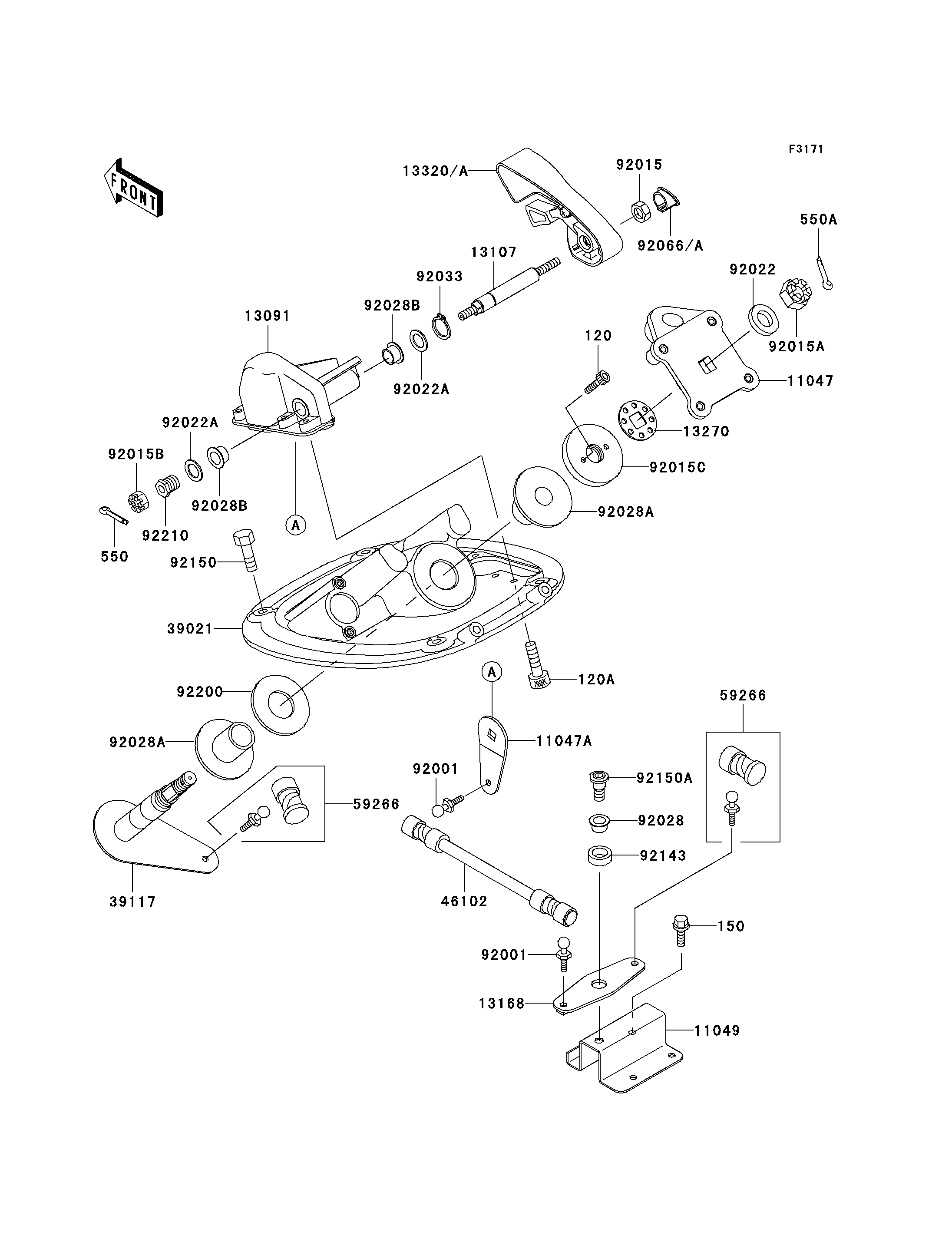

1999 1100 STX - Handle Pole

DOWNLOAD PDF
SELECT A NEW PART
120
120A
150
550
550A
11047
11047A
11049
13091
13107
13168
13270
13320A
39021
39117
46102
59266
59266
92001
92001
92015
92015A
92015B
92015C
92022
92022A
92022A
92028
92028A
92028A
92028B
92028B
92033
92066A
92143
92150
92150A
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X10 120 120R0510 2
BOLT-SOCKET,6X16,BLACK 120A 120S0616 4
BOLT-WS,6X18 150 150R0618 1
PIN-COTTER 550 550S2020 1
PIN-COTTER,3X35 550A 550S3035 1
BRACKET,HANDLE HOLDER 11047 11047-3759 1
BRACKET,STEERING LEVER 11047A 11047-3790 1
BRACKET,REVERSE 11049 11049-3762 1
HOLDER 13091 13091-3809 1
SHAFT 13107 13107-3751 1
LEVER,REVERSE 13168 13168-3739 1
PLATE,STEERING NUT 13270 13270-3808 1
LEVER-ASSY,REVERSE 13320A 13320-3716 1
BRACKET-HANDLE POLE 39021 39021-3706 1
SHAFT-STRG 39117 39117-3710 1
ROD 46102 46102-3723 1
JOINT-BALL 59266 59266-3707 2
BOLT,BALL,6MM 92001 92001-3703 2
NUT,8MM 92015 92015-3709 1
NUT,CASTLE,14MM 92015A 92015-3805 1
NUT,CASTLE,8MM 92015B 92015-3813 1
NUT,STEERING,20MM 92015C 92015-3854 1
WASHER,15X34X2.0 92022 92022-3738 1
WASHER,15.5X24X1.5 92022A 92022-3739 2
BUSHING 92028 92028-3740 1
BUSHING,STEERING 92028A 92028-3748 2
BUSHING 92028B 92028-3755 2
RING-SNAP,15MM 92033 92033-3710 1
PLUG,REVERSE LEVER 92066A 92066-3761 1
COLLAR,16X24X8 92143 92143-3768 1
BOLT,FLANGED,8X30 92150 92150-3803 4
BOLT 92150A 92150-3827 1
WASHER,32.5X70X2 92200 92200-3718 1
NUT,8MM 92210 92210-3703 1
