Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

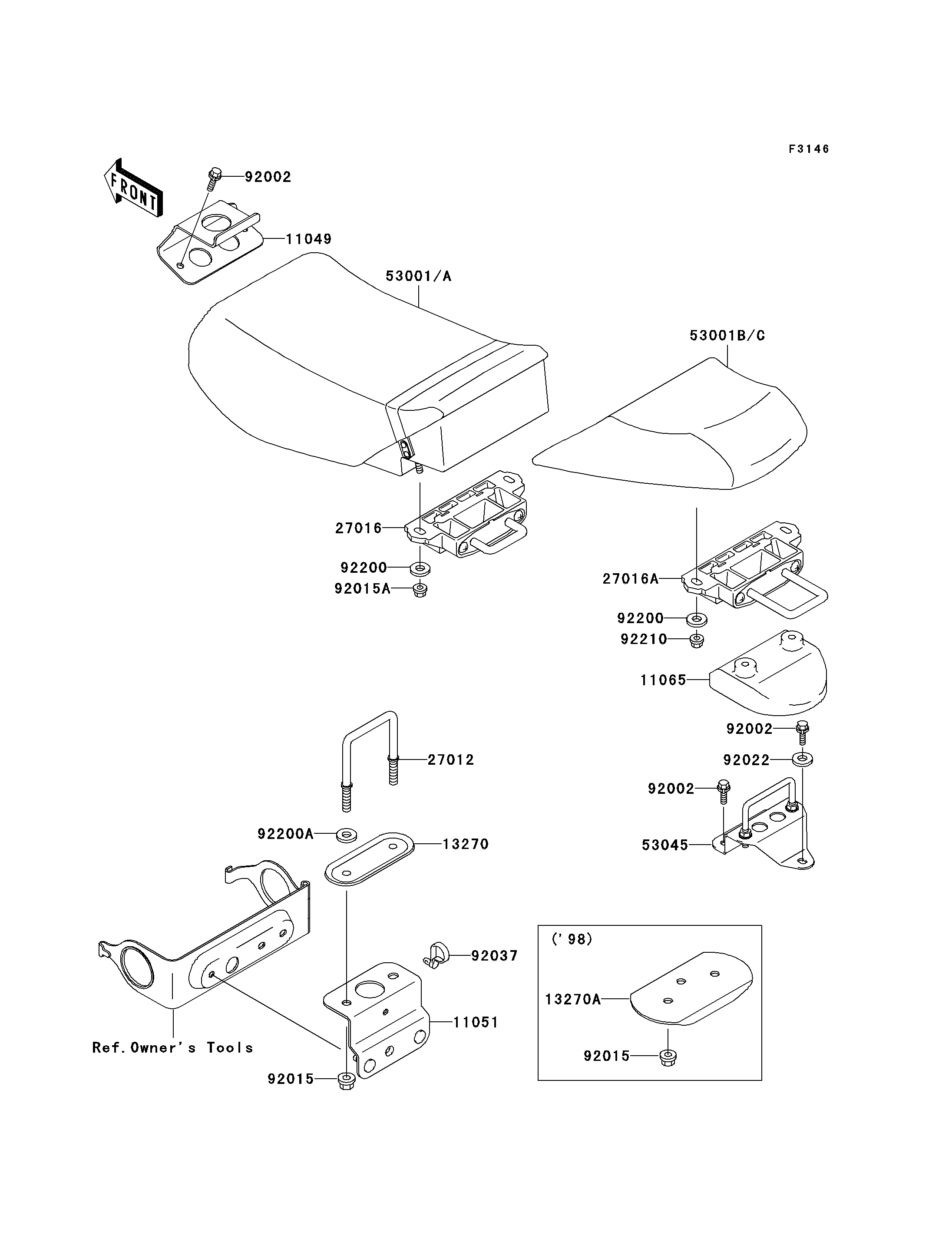

Parts Diagrams |
11049
11051
11065
13270
27012
27016
27016A
53001A
53001C
53045
92002
92002
92002
92015
92015
92015A
92022
92037
92200
92200
92200A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SEAT | 11049 | 11049-3735 | 1 | ||
| BRACKET,DECK,INSIDE | 11051 | 11051-3727 | 1 | ||
| CAP,SEAT LOCK HOOK | 11065 | 11065-3702 | 1 | ||
| PLATE,FRONT SEAT HOOK,OUTER | 13270 | 13270-3910 | 1 | ||
| HOOK,FRONT SEAT LOCK | 27012 | 27012-3814 | 1 | ||
| LOCK-ASSY,FRONT SEAT | 27016 | 27016-3747 | 1 | ||
| LOCK-ASSY,REAR SEAT | 27016A | 27016-3749 | 1 | ||
| SEAT-ASSY,FR,F.SILVER | 53001A | 53001-3733-MN | 1 | ||
| SEAT-ASSY,RR,S.GRAY | 53001C | 53001-3741-NJ | 1 | ||
| HOOK-ASSY,SEAT LOCK | 53045 | 53045-3706 | 1 | ||
| BOLT,6X25 | 92002 | 92002-3714 | 5 | ||
| NUT,8MM | 92015 | 92015-3709 | 2 | ||
| NUT,6MM | 92015A | 92015-3767 | 2 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 1 | ||
| CLAMP,SPEED,L=43 | 92037 | 92037-1290 | 1 | ||
| WASHER,6.5X20X1.5 | 92200 | 92200-3715 | 4 | ||
| WASHER,8.5X18X3 | 92200A | 92200-3761 | 2 | ||
| NUT,FLANGED,6MM | 92210 | 92210-3718 | 2 |
| BRACKET,SEAT | |
| REF # | 11049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,DECK,INSIDE | |
| REF # | 11051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,SEAT LOCK HOOK | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,FRONT SEAT HOOK,OUTER | |
| REF # | 13270 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,FRONT SEAT LOCK | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,FRONT SEAT | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,REAR SEAT | |
| REF # | 27016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,FR,F.SILVER | |
| REF # | 53001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY,RR,S.GRAY | |
| REF # | 53001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK-ASSY,SEAT LOCK | |
| REF # | 53045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,SPEED,L=43 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X18X3 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
