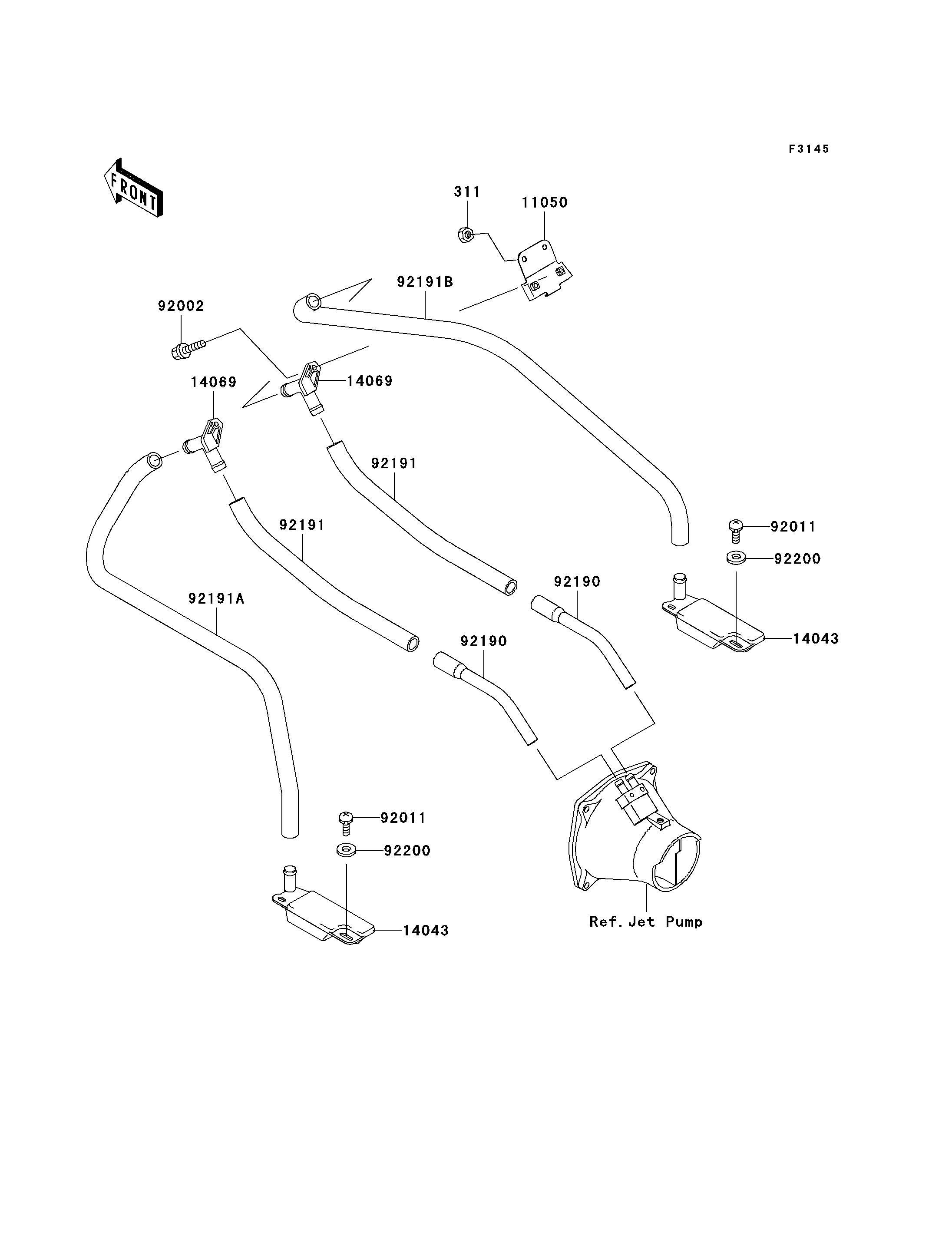

1999 1100 STX - Bilge System

DOWNLOAD PDF
SELECT A NEW PART
311
11050
14043
14043
14069
14069
92002
92011
92011
92190
92190
92191
92191
92191A
92191B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 2
BRACKET 11050 11050-3734 1
FILTER 14043 14043-3708 2
BREATHER 14069 14069-3708 2
BOLT,6X16 92002 92002-3728 2
SCREW,TAPPING 92011 92011-561 4
TUBE,HULL-NOZZLE 92190 92190-3971 2
TUBE,BREATHER-HULL 92191 92191-3820 2
TUBE,FILTER-BREATHER(LH) 92191A 92191-3821 1
TUBE,FILTER-BREATHER(RH) 92191B 92191-3822 1
WASHER,5.9X16X1.5 92200 92200-3714 4
