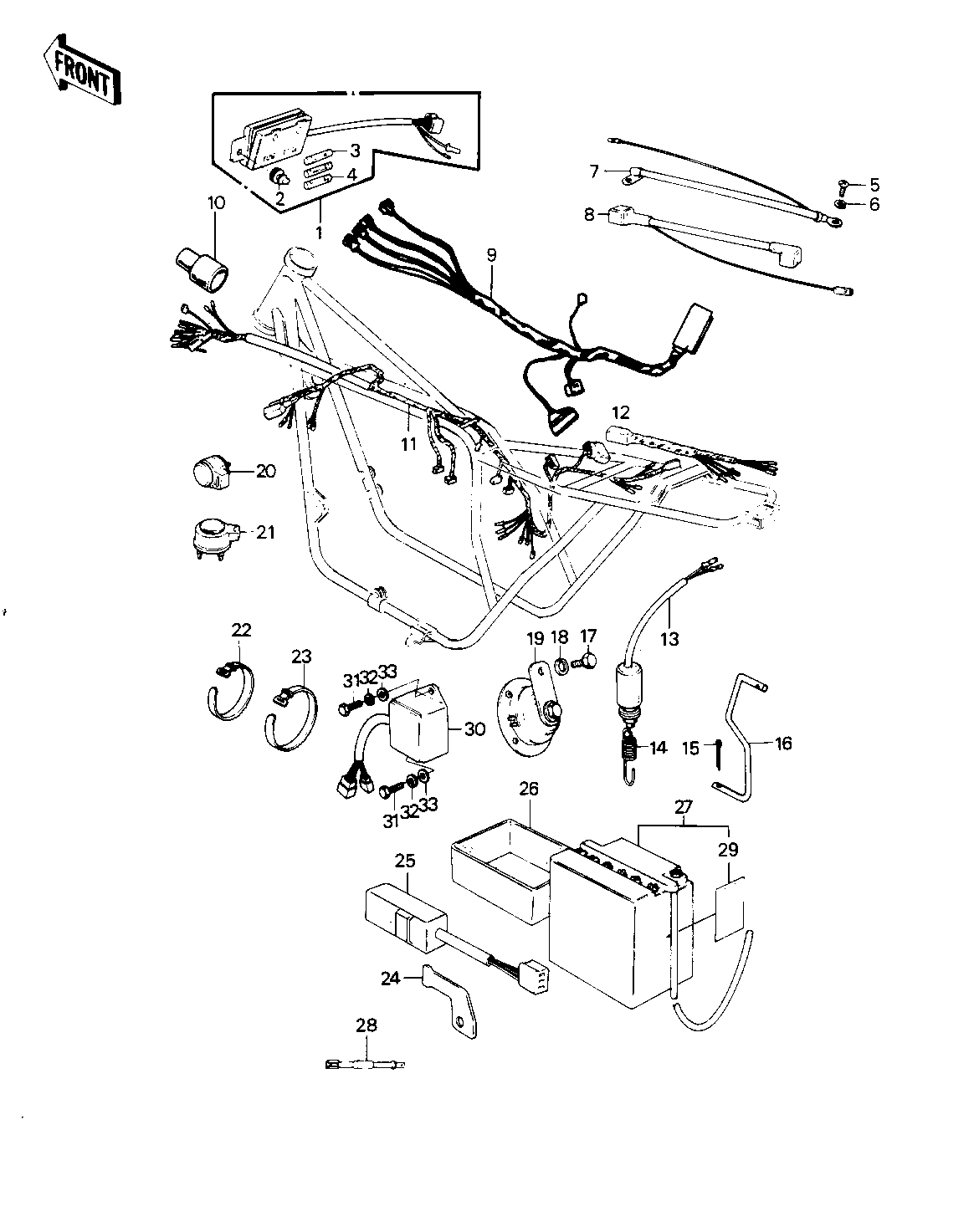

1980 Classic - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE ASSY 1 26004-1006 1
DAMPER RUBBER,FUSE 2 92075-279 1
FUSE-20A 3 26006-005 2
FUSE 10A 4 26006-003 3
BOLT,HEX HEAD,6MM 5 92001-137 1
WASHER SPRING 6MM 6 461F0600 1
WIRE,BATTERY GROUND 7 26010-054 1
WIRE,LEAD 8 26011-1071 1
WIRING HARNESS,SUB 9 26001-1142 1
COVER WIRING HARNESS 10 26009-003 1
WIRING,HARNESS,MAIN 11 26001-1141 1
WIRING HARNESS,REAR 12 26002-031 1
SWITCH-BRAKE LAMP 13 27010-017 1
SPRING BRAKE LAMP SW 14 27011-009 1
PIN COTTER 1.6X10 15 550D1610 1
HOOK,BRK LAMP SW SPR 16 27012-010 1
BOLT-SMALL-UPSET,8X16 17 115G0816 1
WASHER SPRING 8MM 18 461F0800 1
HORN 19 27003-1006 1
RELAY-TURN SIGNAL 20 27002-011 1
RELAY,TURN SIGNAL 21 27002-016 1
BAND,SHORT 22 92072-030 1
BAND,WIRING HARNESS 23 92072-056 8
BRACKET,OUTAGE SWITCH 24 32060-014 1
SWITCH,OUTAGE,INDICTR 25 28019-001 1
CASE,BATTERY 26 32099-015 1
YUA BAT YB14L-A2 27 26012-1008 1 YB-14
REGULATOR 28 21066-026 1
LABEL-WARNING,BATTERY 29 56040-1036 1
SWITCH,RESERVE LIGHTI 30 27010-1024 1
SCREW PAN HEAD 6X20 31 220B0620 2
WASHER PLAIN 6MM 32 410B0600 4
WASHER SPRING 6MM 33 461F0600 4
