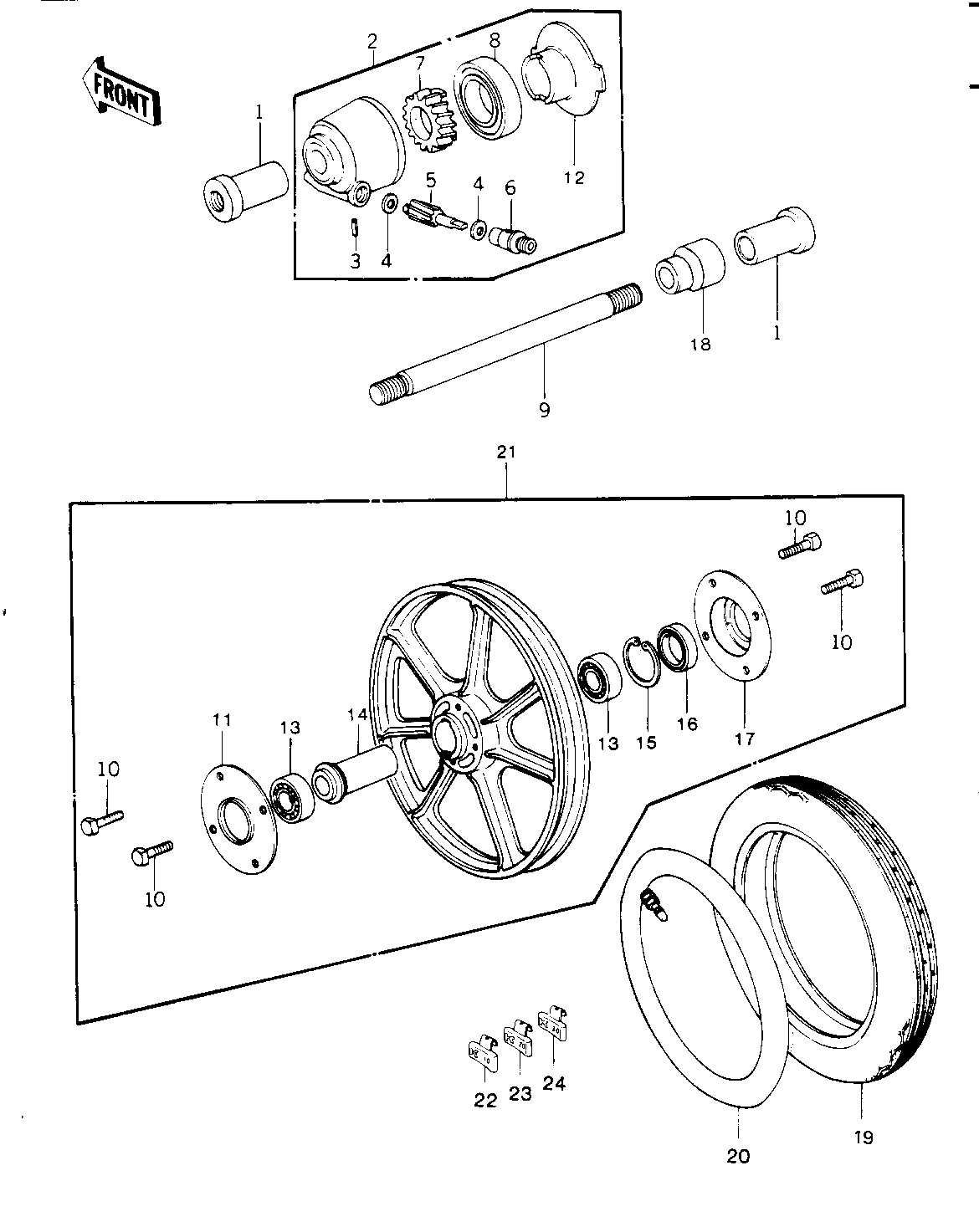

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COLLAR,FRONT AXLE | 1 | 41069-033 | 2 | ||
| GEAR BOX ASSY,SPEEDO | 2 | 41078-1012 | 1 | ||
| PIN,SPRING | 3 | 41082-001 | 1 | ||
| WASHER THRST SPD PINI | 4 | 41063-001 | 2 | ||
| PINION,SPEEDOMETER | 5 | 41060-017 | 1 | ||
| BUSHING,SPEEDOMET CBL | 6 | 92028-1066 | 1 | ||
| GEAR,SPEEDOMETER | 7 | 41059-026 | 1 | ||
| OIL SEAL,BJN30427-C3 | 8 | 92049-1057 | 1 | ||
| AXLE,FRONT | 9 | 41068-049 | 1 | ||
| BOLT,HEX HEAD,10X30 | 10 | 92001-1173 | 8 | ||
| DUST COVER | 11 | 41042-014 | 1 | ||
| RECEIVER,GEAR | 12 | 41064-013 | 1 | ||
| BRG,BALL,#6203ZZC3 | 13 | 601B6203ZZ | 2 | ||
| COLLAR,BRG | 14 | 41039-028 | 1 | ||
| RING, SNAP,43.5M/M | 15 | 92033-1040 | 1 | ||
| OIL SEAL | 16 | 654A254008 | 1 | ||
| DUST COVER | 17 | 41042-015 | 1 | ||
| COLLAR,FRONT AXLE | 18 | 41069-032 | 1 | ||
| TIRE-FRONT | 19 | 41021-071 | 1 | ML90-90 EAGLE G/T | |
| TUBE 350/375/410-19 | 20 | 41022-046 | 1 | ||
| WHEEL ASSY-FRONT,GOLD | 21 | 41073-1084 | 1 | ||
| BALANCER-WHEEL,10G | 22 | 41075-1011 | AR | ||
| BALANCER-WHEEL,20G | 23 | 41075-1012 | AR | ||
| BALANCER-WHEEL,30G | 24 | 41075-1013 | AR |
