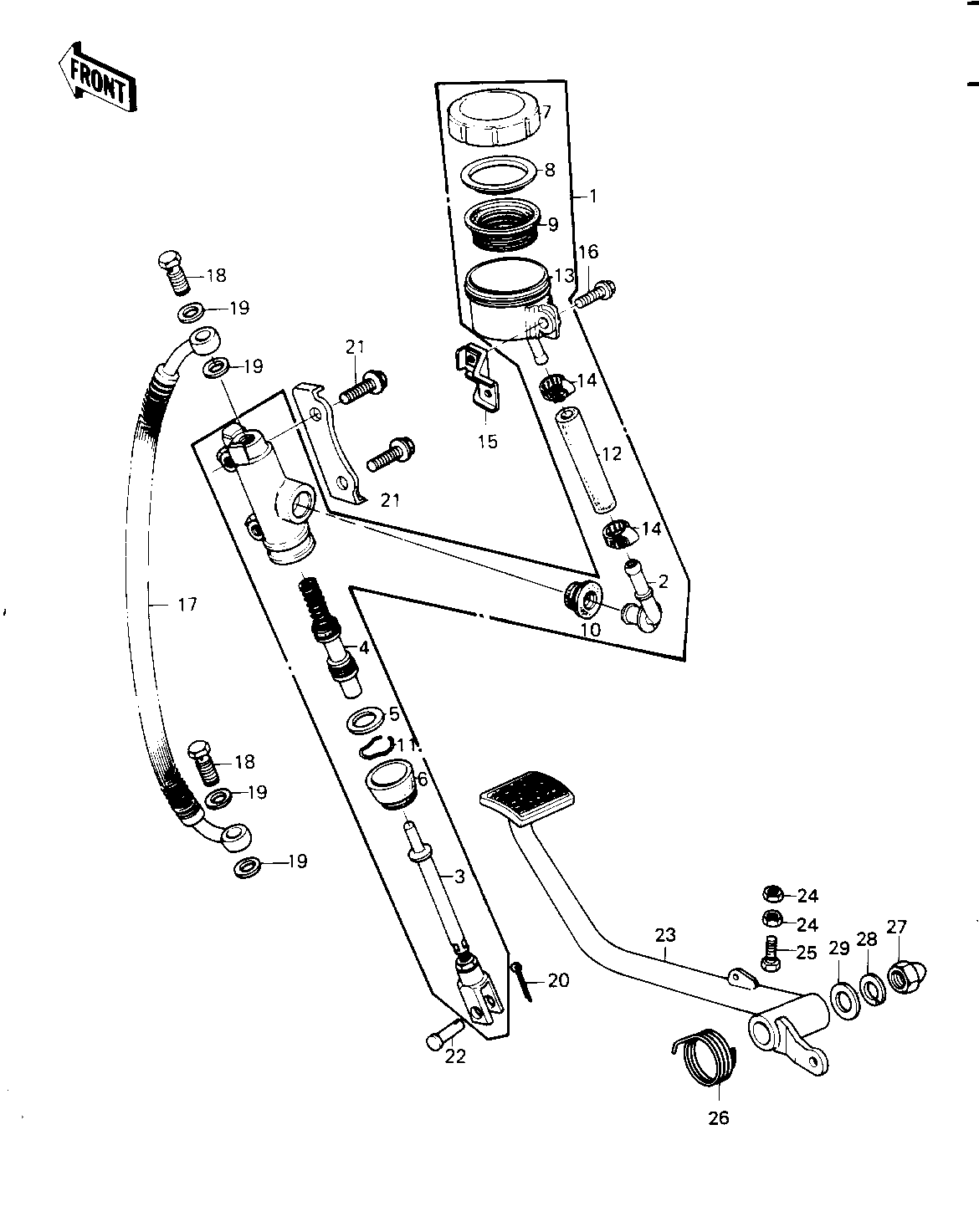

1980 Classic - REAR MASTER CYLINDER/BRAKE PEDAL
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER ASSY,RR MAST | 1 | 43015-1047 | 1 | ||
| CONNECTOR | 2 | 13159-1005 | 1 | ||
| ROD ASSY,REAR BRAKE | 3 | 43010-1003 | 1 | ||
| PISTON ASSY,RR BRAKE | 4 | 43020-1015 | 1 | ||
| STOPPER,PISTON | 5 | 43022-1002 | 1 | ||
| DUST COVER | 6 | 43024-003 | 1 | ||
| CAP,OIL CUP | 7 | 43026-1010 | 1 | ||
| PLATE,DIAPHRAGM | 8 | 43027-1005 | 1 | ||
| DIAPHRAGM | 9 | 43028-1016 | 1 | ||
| PACKING | 10 | 43049-1008 | 1 | ||
| RING,DUST SEAL | 11 | 43058-004 | 1 | ||
| HOSE,BRAKE | 12 | 43059-1044 | 1 | ||
| RESERVOIR | 13 | 43078-1008 | 1 | ||
| CLAMP,BRAKE HOSE | 14 | 92037-1154 | 2 | ||
| BRACKET,RR M/CYLINDER | 15 | 11034-1580 | 1 | ||
| BOLT,FLANGED,6X20 | 16 | 130B0620 | 1 | ||
| HOSE, RR M/CYL BRAKE | 17 | 43059-1046 | 1 | ||
| BOLT,OIL,L=23 | 18 | 92002-1888 | 2 | ||
| WASHER-OIL BOLT | 19 | 43067-001 | 4 | ||
| PIN COTTER 2.0X15 | 20 | 550D2015 | 1 | ||
| BOLT,8X28 | 21 | 92001-1095 | 2 | ||
| PIN | 22 | 92043-1013 | 1 | ||
| PEDAL,BRAKE | 23 | 43001-1040 | 1 | ||
| NUT 6MM | 24 | 311B0600 | 2 | ||
| BOLT-UPSET,6X20 | 25 | 112G0620 | 1 | ||
| SPRING,BRAKE PEDAL | 26 | 92081-1046 | 1 | ||
| NUT,CAP AND LOCK,8MM | 27 | 92019-013 | 1 | ||
| WASHER SPRING 8MM | 28 | 461F0800 | 1 | ||
| WASHER,8.5X20X1.6 | 29 | 92022-1561 | 1 |
