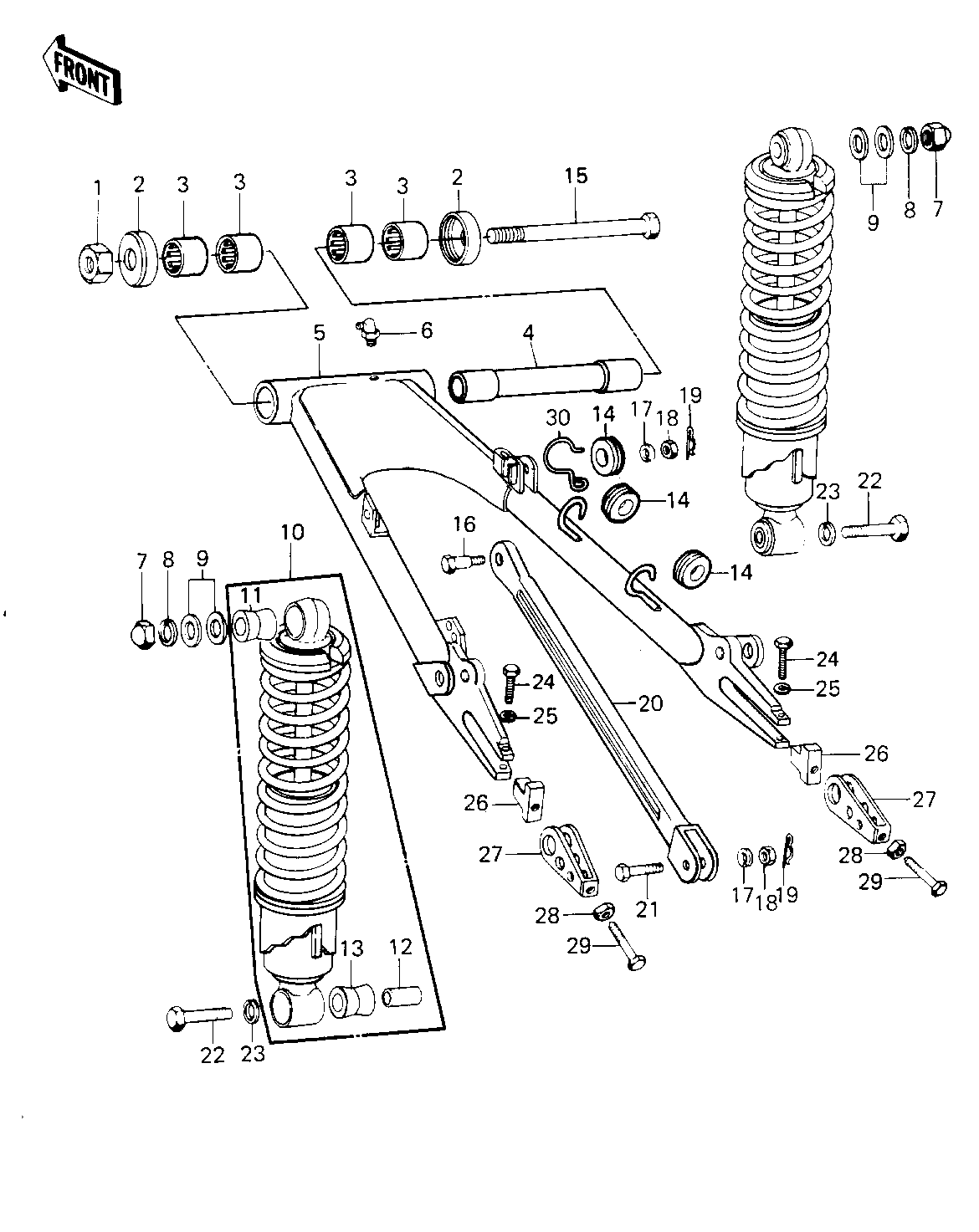

1980 Classic - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-SELF LOCKING 1 92019-012 1
CAP,SWING ARM 2 33035-009 2
BEARING-NEEDLE,HK2216 3 92046-1115 4
SLEEVE,SWING ARM 4 42036-1011 1
SWING ARM 5 33001-1036 1
GREASE NIPPLE 6 92005-002 1
NUT 12MM 7 92020-014 2
WASHER SPRING 12MM 8 461F1200 2
WASHER PLAIN 12MM 9 410B1200 4
SHOCK ABSBR RR 10 45014-1013 2
BUSHING,SHCK ABS RUB 11 45017-018 2
BUSH SHCK ABS PVT SFT 12 45016-003 2
BUSHING,SHCK ABSORBER 13 45017-011 2
DAMPER RUBBER 14 43064-007 3
SHAFT,SWING ARM PIVOT 15 33032-036 1
BOLT,HEX HEAD,10X39 16 92003-218 1
WASHER SPRING 10MM 17 461F1000 2
NUT,10MM 18 314B1000 2
PIN,SNAP 19 554A0800 2
TORQUE LINK,REAR HUB 20 43007-049 1
BOLT,10X47 21 92001-1145 1
BOLT HEX HEAD 10X40 22 113N1040 2
WASHER SPRING 10MM 23 461F1000 2
BOLT 24 92001-1578 2
WASHER SPRING 8MM 25 461F0800 2
STOPPER,CHAIN ADJUST 26 33044-001 2
ADJUSTER,CHAIN 27 33040-066 2
NUT 10MM 28 315B1000 2
BOLT-CHN ADJUST 10MM 29 92001-143 2
CLAMP,BRAKE HOSE 30 92037-1061 1
