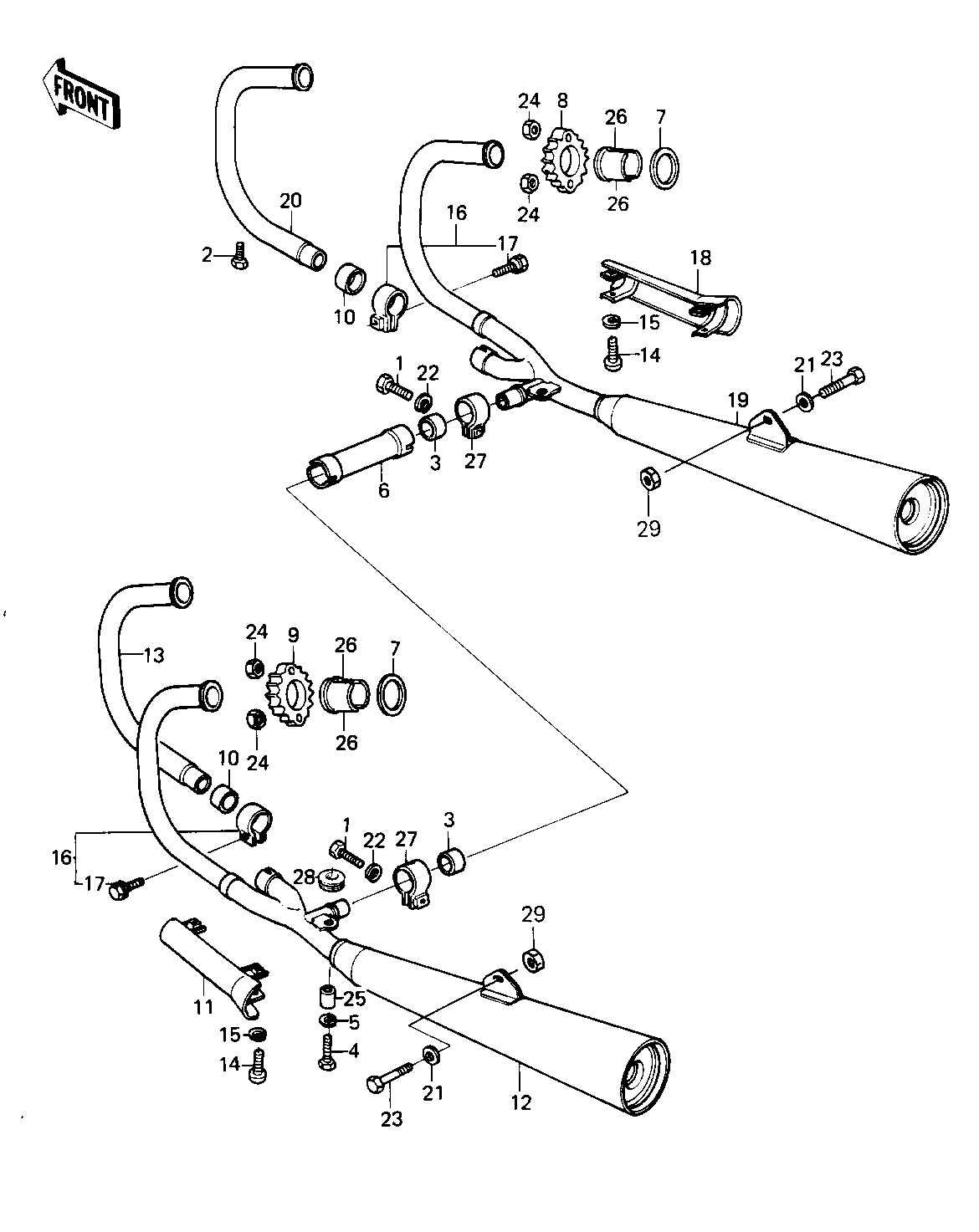

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET 8X25 | 1 | 115G0825 | 2 | ||
| BOLT (6X10) | 2 | 110R0610 | 4 | ||
| GASKET,EXHAUST PIPE C | 3 | 11009-1718 | 2 | ||
| BOLT-SMALL-UPSET,8X30 | 4 | 115G0830 | 2 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 2 | ||
| PIPE,MUFFLER CONNECTN | 6 | 18039-025 | 1 | ||
| GASKET,EXHAUST PIPE H | 7 | 11009-1906 | 4 | ||
| HOLDER,EXHAUST PIPE, | 8 | 18069-1004 | 2 | ||
| HOLDER,EXHAUST PIPE, | 9 | 18069-1005 | 2 | ||
| GASKET,MANIFOLD EXHAU | 10 | 11060-1068 | 2 | ||
| COVER,MUFFLER,L.H | 11 | 14025-1205 | 1 | ||
| MUFFLER,LH | 12 | 18001-1121 | 1 | ||
| PIPE,EXHAUST,L.H INN | 13 | 18049-1018 | 1 | ||
| SCREW PAN HEAD 6X40 | 14 | 220B0640 | 4 | ||
| WASHER SPRING 6MM | 15 | 461F0600 | 4 | ||
| CLAMP,MUFFLER | 16 | 92037-1258 | 2 | ||
| BOLT,8X30 | 17 | 92001-1379 | 2 | ||
| COVER,MUFFLER,R.H | 18 | 14025-1206 | 1 | ||
| MUFFLER,RH | 19 | 18001-1122 | 1 | ||
| PIPE,EXHAUST,R.H INN | 20 | 18049-1019 | 1 | ||
| WASHER,PLAIN,10MM (Canada) | 21 | 410D1000 | 2 | ||
| WASHER SPRING 8MM | 22 | 461F0800 | 2 | ||
| BOLT-HEX HEAD,10X60 | 23 | 113N1060 | 2 | ||
| NUT,LOCK,8MM | 24 | 92017-013 | 8 | ||
| COLLAR,MUFFLER FITT | 25 | 92027-1271 | 2 | ||
| INSERT,EXHAUST PIPE | 26 | 92027-170 | 8 | ||
| CLAMP,CONNECTING PIPE | 27 | 92037-1221 | 2 | ||
| DAMPER RUBBER | 28 | 92075-1042 | 4 | ||
| NUT,LOCK,10MM | 29 | 92019-021 | 2 |
