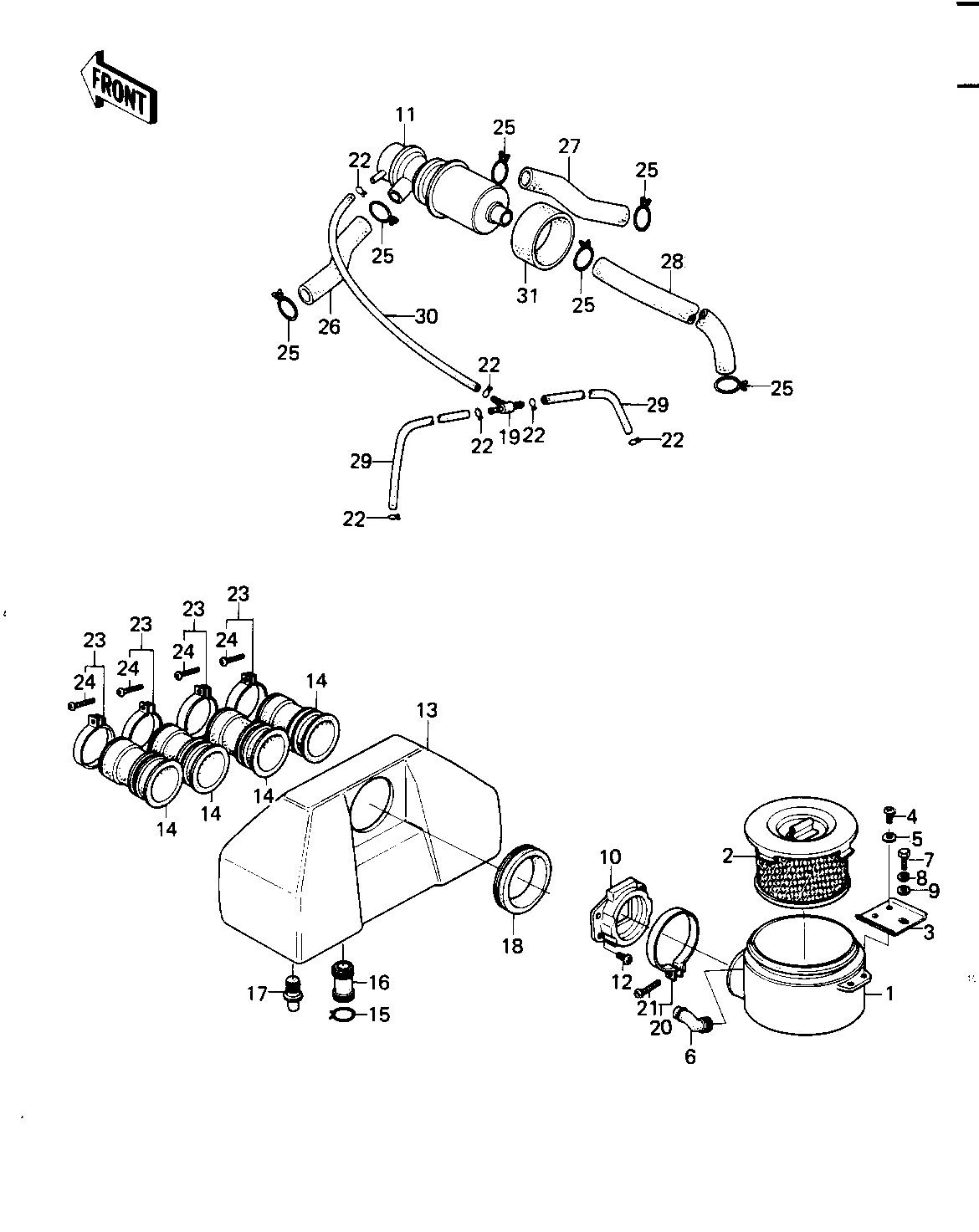

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BODY,AIR CLEANER | 1 | 11011-1053 | 1 | ||
| ELEMENT,AIR CLNR | 2 | 11013-1032 | 1 | ||
| BRACKET,AIR CLEANER | 3 | 11034-1737 | 1 | ||
| SCREW PAN HEAD 6X14 | 4 | 220B0614 | 2 | ||
| WASHER PLAIN 6MM | 5 | 410B0600 | 2 | ||
| TUBE,AIR SWITTING VLV | 6 | 92059-1136 | 1 | ||
| BOLT-UPSET,6X12 | 7 | 112G0612 | 1 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 9 | 411B0600 | 1 | ||
| HOLDER,AIR FLOW METER | 10 | 16065-1032 | 1 | ||
| VALVE ASSY,AIR SWITNG | 11 | 16126-1015 | 1 | ||
| SCREW PAN HEAD 6X12 | 12 | 220B0612 | 4 | ||
| CASE,SURGE TANK | 13 | 11011-1054 | 1 | ||
| DUCT,THROTTLE VALVE | 14 | 14073-1042 | 4 | ||
| CLAMP BREATHER PIPE | 15 | 92037-028 | 1 | ||
| TUBE,BREATHER | 16 | 92059-1119 | 1 | ||
| PLUG | 17 | 92066-1048 | 1 | ||
| SEAL,AIR FLOW METER | 18 | 92093-1043 | 1 | ||
| FITTING,TUBE | 19 | 92005-1017 | 1 | ||
| CLAMP-AIR CLEANER | 20 | 92037-068 | 1 | ||
| SCREW PAN HEAD 6X35 | 21 | 220B0635 | 1 | ||
| CLAMP-PIPE | 22 | 92037-072 | 6 | ||
| CLAMP,HOLDER | 23 | 92037-077 | 4 | ||
| SCREW,PAN HEAD | 24 | 92011-037 | 4 | ||
| CLAMP,BREATHER TUBE | 25 | 92037-213 | 6 | ||
| TUBE | 26 | 92059-1065 | 1 | ||
| TUBE | 27 | 92059-1066 | 1 | ||
| TUBE,14X20X480 | 28 | 92059-1124 | 1 | ||
| TUBE,4X9X110 | 29 | 92059-1131 | 2 | ||
| TUBE,VACUUM,LONG | 30 | 92059-1162 | 1 | ||
| DAMPER,AIR SWITCHNG,V | 31 | 92075-1195 | 1 |
