Parts Diagrams |

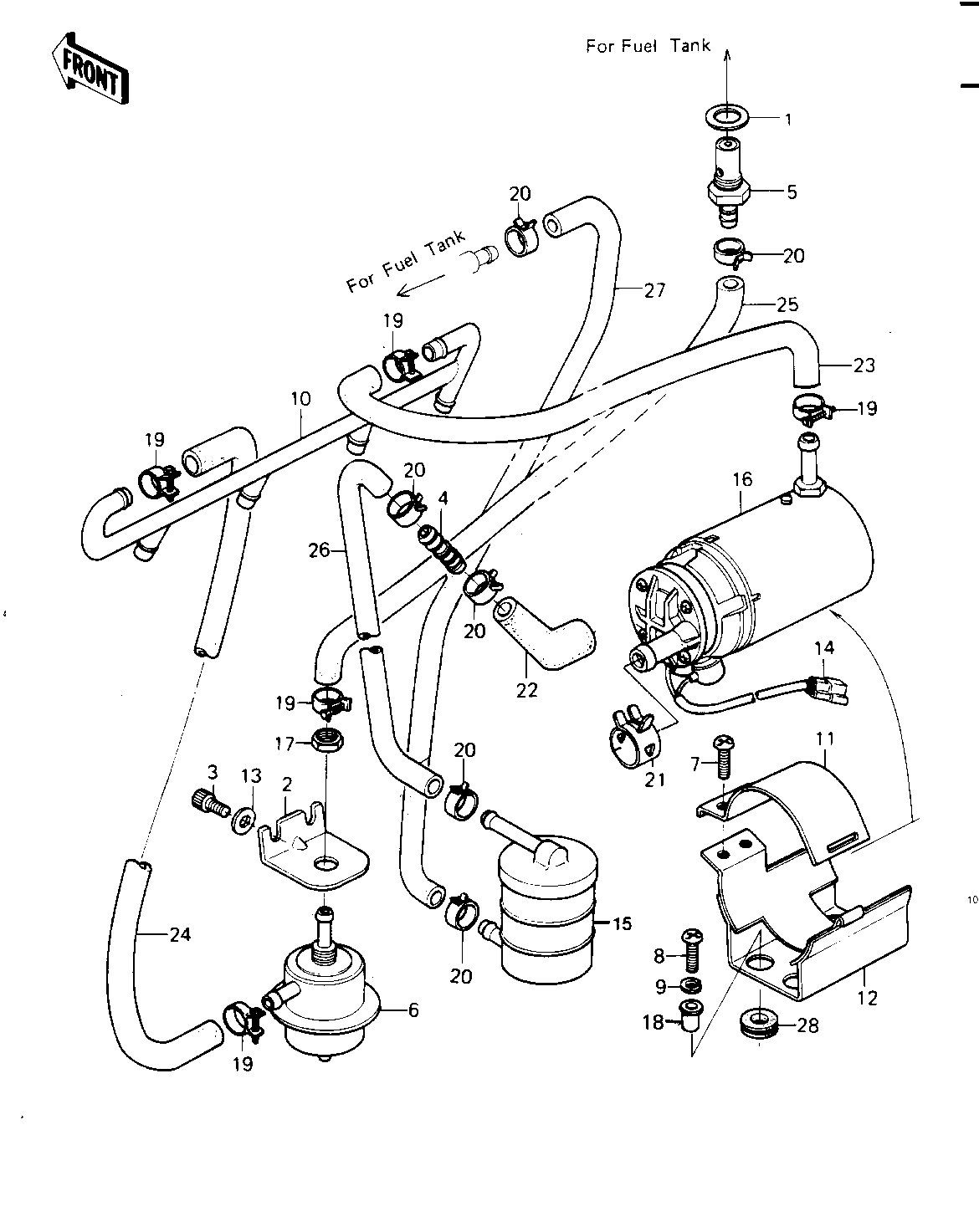

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RELIEF VLV FIT | 1 | 11009-1182 | 1 | ||
| BKT,PRESSURE REGULATO | 2 | 11034-1723 | 1 | ||
| BOLT,SOCKET,5X8 | 3 | 120P0508A | 2 | ||
| CONNECTOR,FUEL PUMP | 4 | 13159-1006 | 1 | ||
| VALVE ASSY,RELIEF | 5 | 16130-1002 | 1 | ||
| REGULATOR-FUEL | 6 | 16162-1002 | 1 | ||
| SCREW PAN HEAD 6X20 | 7 | 220B0620 | 2 | ||
| SCREW PAN HEAD 6X20 | 8 | 220B0620 | 4 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 4 | ||
| PIPE ASSY | 10 | 31064-1002 | 1 | ||
| BKT,FUEL PUMP FITTING | 11 | 11034-1721 | 1 | ||
| BKT,FUEL PUMP FITTING | 12 | 11034-1722 | 1 | ||
| WASHER PLAIN 5MM | 13 | 410B0500 | 2 | ||
| WIRE,FUEL PUMP LEAD | 14 | 26011-1076 | 1 | ||
| FILTER,FUEL | 15 | 49019-1001 | 1 | ||
| PUMP ASSY,FUEL | 16 | 49040-1001 | 1 | ||
| NUT,12M/M | 17 | 92015-1101 | 1 | ||
| COLLAR | 18 | 92027-194 | 4 | ||
| CLAMP | 19 | 92037-1178 | 5 | ||
| CLAMP | 20 | 92037-1181 | 6 | ||
| CLAMP | 21 | 92037-1206 | 1 | ||
| TUBE | 22 | 92059-1120 | 1 | ||
| TUBE,7.5X13.5X272 | 23 | 92059-1121 | 1 | ||
| TUBE,7.5X13.5X285 | 24 | 92059-1122 | 1 | ||
| TUBE | 25 | 92059-1134 | 1 | ||
| TUBE,7.6X14X140 | 26 | 92059-1146 | 1 | ||
| TUBE,7.6X14X360 | 27 | 92059-1147 | 1 | ||
| DAMPER RUBBER | 28 | 92075-277 | 4 |
