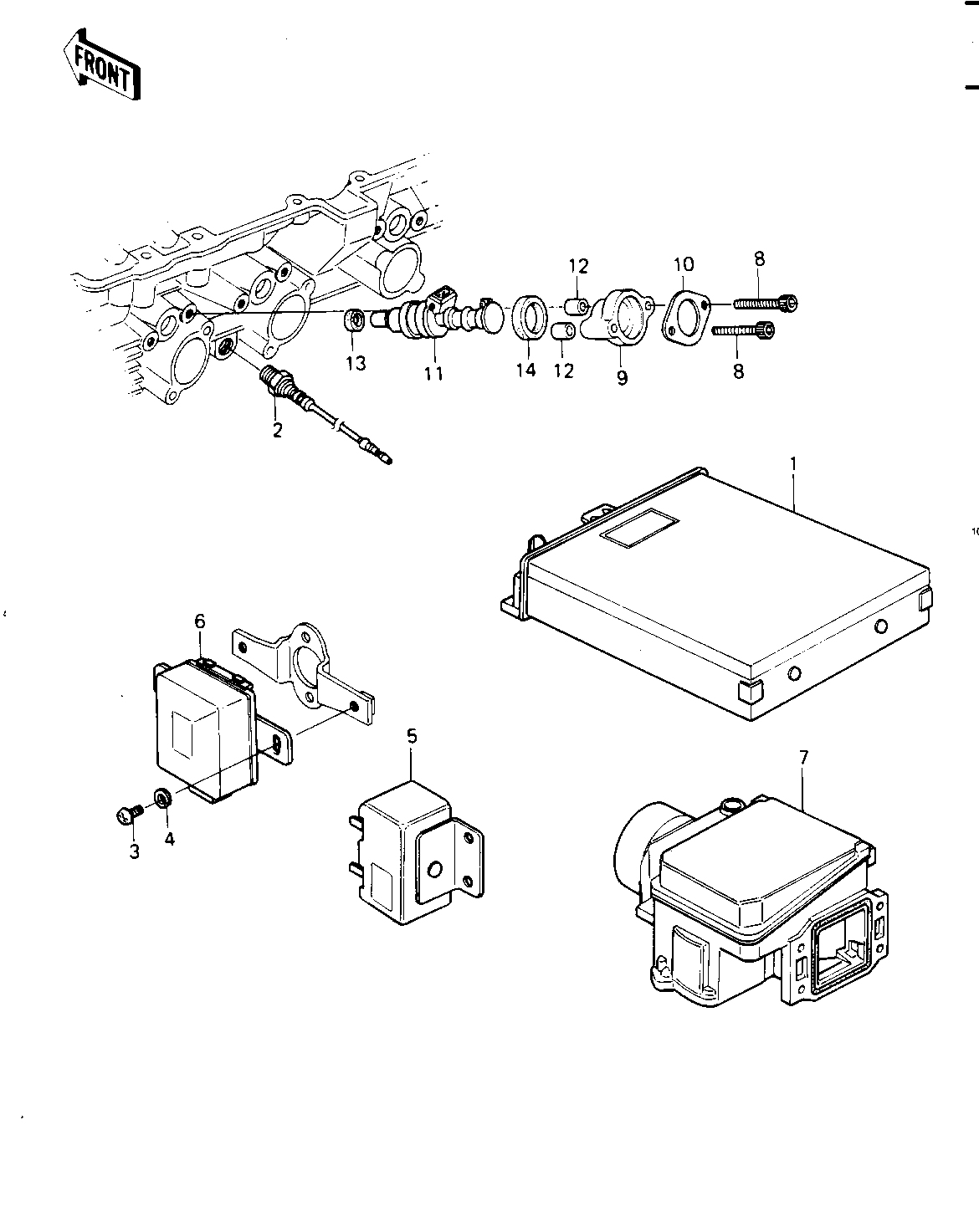

1980 Classic - INJECTORS/ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CONTROL UNIT,ELECTRO | 1 | 21175-1001 | 1 | ||
| SENSOR,TEMPERATURE | 2 | 21176-1001 | 1 | ||
| SCREW PAN HEAD 4X8 | 3 | 220B0408 | 2 | ||
| WASHER SPRING 4MM | 4 | 461F0400 | 2 | ||
| RELAY ASSY | 5 | 27002-1007 | 1 | ||
| SWITCH ASSY,THROTTLE | 6 | 27004-1006 | 1 | ||
| METER,AIR FLOW | 7 | 28011-1009 | 1 | ||
| BOLT,SOCKET,5X40 | 8 | 120P0540A | 8 | ||
| HOLDER,FUEL INJECTOR | 9 | 13091-1076 | 4 | ||
| PLATE,FUEL INJECTOR,B | 10 | 13169-1434 | 4 | ||
| INJECTOR,FUEL | 11 | 49033-1001 | 4 | ||
| COLLAR,FUEL INJECTOR | 12 | 92027-1259 | 8 | ||
| INSULATOR,FUEL INJECT | 13 | 92055-1082 | 4 | ||
| INSULATOR,FUEL INJECT | 14 | 92075-1240 | 4 |
