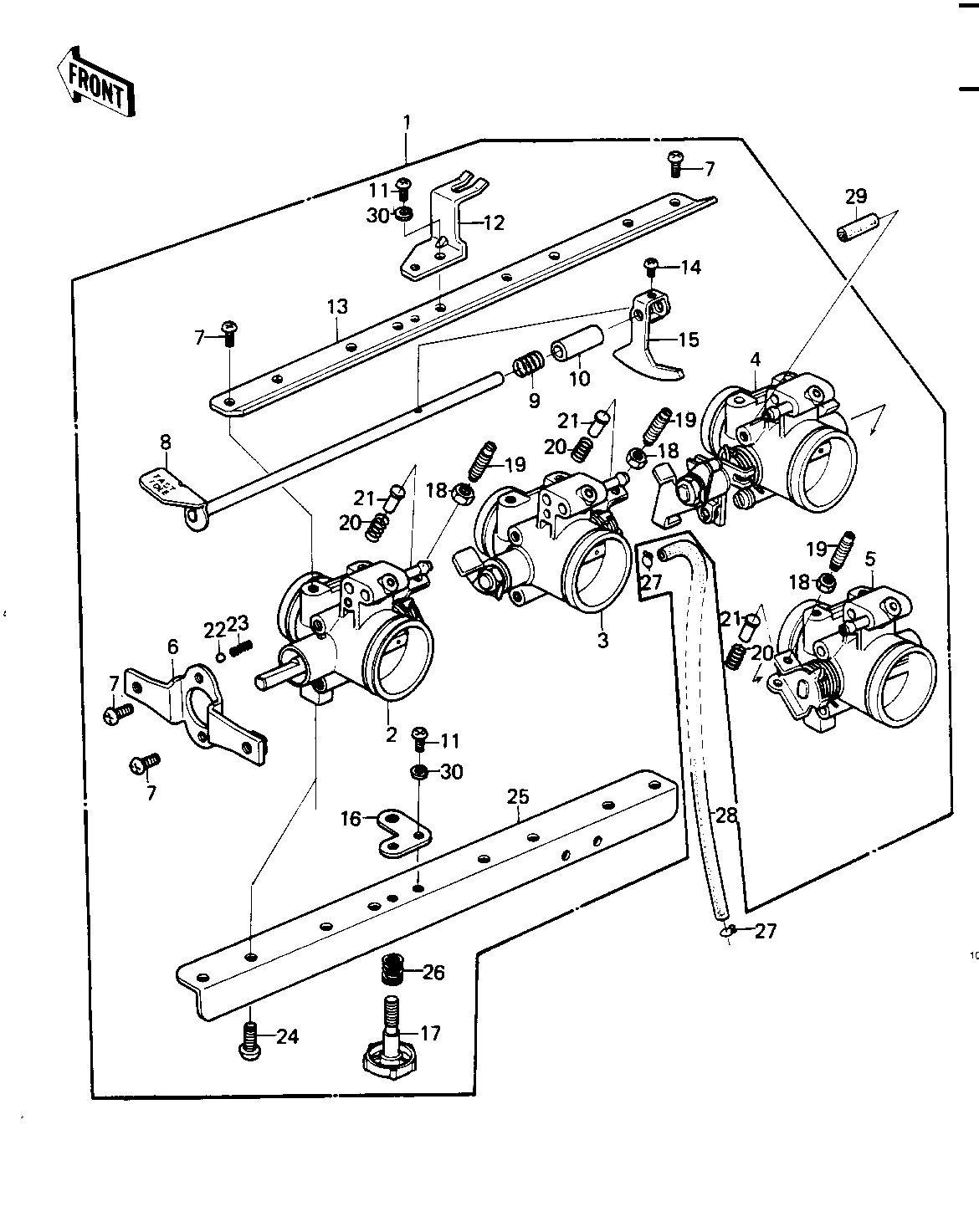

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| THROTTLE ASSY | 1 | 16163-1001 | 1 | ||
| THROTTLE,L.H,OUTSIDE | 2 | 16163-1002 | 1 | ||
| THROTTLE,L.H,INSIDE | 3 | 16163-1003 | 1 | ||
| THROTTLE,R.H,INSIDE | 4 | 16163-1004 | 1 | ||
| THROTTLE,R.H,OUTSIDE | 5 | 16163-1005 | 1 | ||
| BRACKET,THROTTLE SWIT | 6 | 11034-1811 | 1 | ||
| SCREW PAN HEAD 5X10 | 7 | 220B0510 | 10 | ||
| SHAFT ASSY,FAST IDLE | 8 | 13234-1003 | 1 | ||
| SPRING,THROTTLE ADJST | 9 | 16022-010 | 1 | ||
| PIPE | 10 | 32032-1433 | 1 | ||
| SCREW PAN HEAD 5X8 | 11 | 220B0508 | 2 | ||
| BRACKET,THROTTLE.CABL | 12 | 11034-1812 | 1 | ||
| PLATE,STAY,UPPER | 13 | 13169-1280 | 1 | ||
| SCREW,PAN HEAD,5X7 | 14 | 16046-007 | 1 | ||
| LEVER,FAST IDLE | 15 | 13168-1067 | 1 | ||
| BRACKET,IDLING ADJUST | 16 | 11034-1813 | 1 | ||
| BOLT,IDLING ADJUST | 17 | 92001-1331 | 1 | ||
| NUT,THROTTLE VLV ADST | 18 | 92015-1119 | 3 | ||
| BOLT,THROTTLE VLV AJS | 19 | 92001-1332 | 3 | ||
| SPRING,THROTTLE VALVE | 20 | 92081-1259 | 3 | ||
| PIN,THROTTLE VALVE | 21 | 92043-1079 | 3 | ||
| BALL,STEEL,1/8" | 22 | 600A0400 | 1 | ||
| SPRING,FAST IDLE SHFT | 23 | 92081-1260 | 1 | ||
| SCREW PAN HEAD 6X14 | 24 | 220B0614 | 8 | ||
| PLATE,STAY,LOWER | 25 | 13169-1279 | 1 | ||
| SPRING,IDLING ADJUST | 26 | 92081-1261 | 1 | ||
| CLAMP-PIPE | 27 | 92037-072 | 2 | ||
| TUBE,4X9X290 | 28 | 92059-1043 | 1 | ||
| RUBBER PLUG | 29 | 92068-006 | 1 | ||
| WASHER SPRING 5MM | 30 | 461F0500 | 2 |
| THROTTLE ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| THROTTLE,L.H,OUTSIDE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| THROTTLE,L.H,INSIDE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| THROTTLE,R.H,INSIDE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| THROTTLE,R.H,OUTSIDE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,THROTTLE SWIT | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X10 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SHAFT ASSY,FAST IDLE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJST | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X8 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,THROTTLE.CABL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,STAY,UPPER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,5X7 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FAST IDLE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IDLING ADJUST | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,IDLING ADJUST | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,THROTTLE VLV ADST | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,THROTTLE VLV AJS | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE VALVE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN,THROTTLE VALVE | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BALL,STEEL,1/8" | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,FAST IDLE SHFT | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLATE,STAY,LOWER | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,IDLING ADJUST | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP-PIPE | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,4X9X290 | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER PLUG | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
