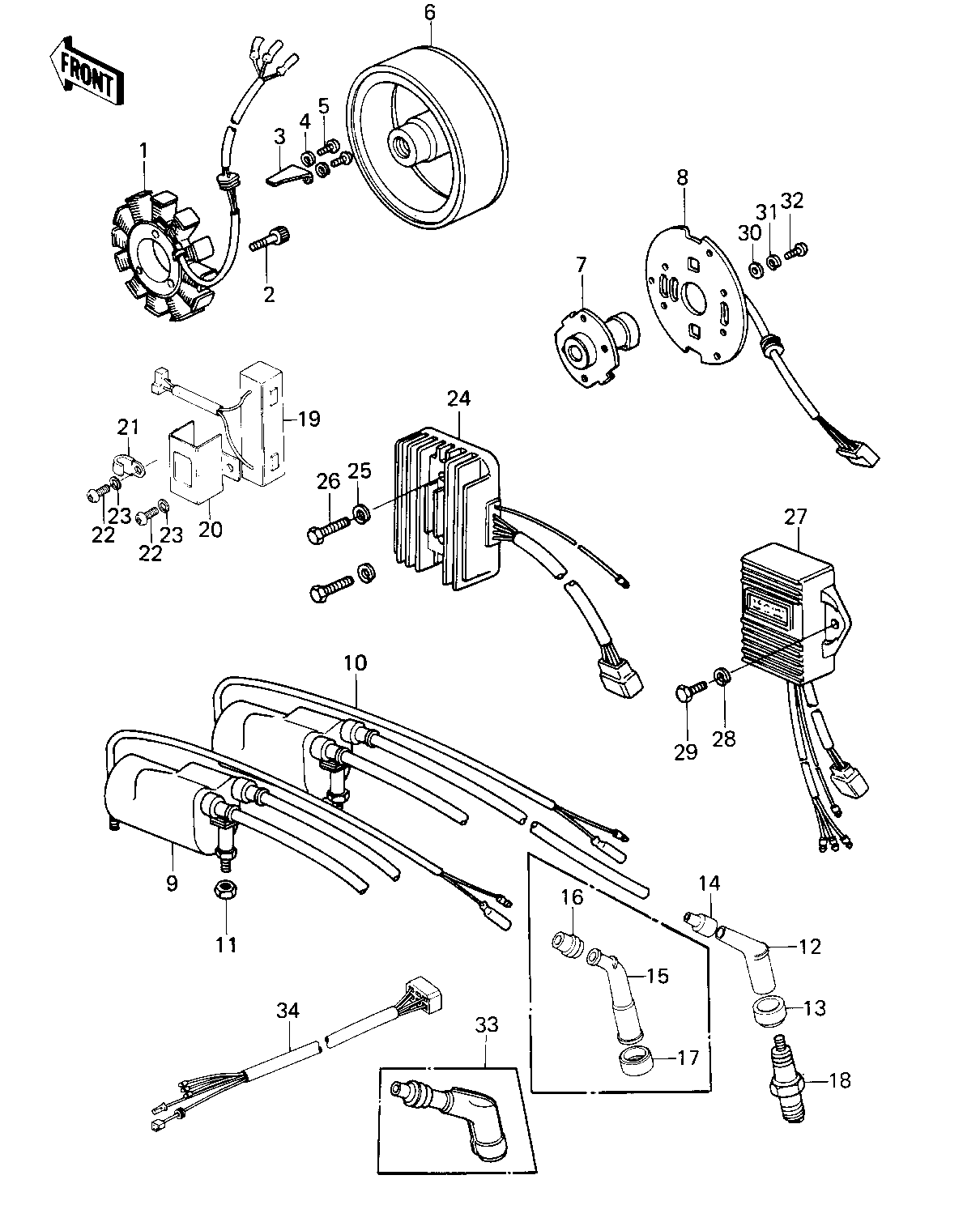

1979 Shaft - IGNITION/GENERATOR/REGULATOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR ASSY 1 21003-1015 1
BOLT,SOCKET,5X25 2 120P0525A 3
CLAMP,GENERATOR WIRE 3 92037-1122 1
WASHER SPRING 5MM 4 461F0500 2
SCREW PAN HEAD 5X12 5 220B0512 2
ROTOR 6 21007-1011 1
ADVANCER ASSY,SPARK 7 21148-1009 1
COIL-PULSING 8 59026-1012 1
COIL,IGNITION,#1 & #4 9 21121-1021 1 NO. 1 & 4
COIL,IGNITION,#2 & #3 10 21121-1022 1 NO. 2 & 3
NUT,LOCK 6MM 11 92017-014 4
CAP-SPARK PLUG,RTFM20 12 21130-1007 2 NO. 1 & 4
GROMMET-PLUG CAP,A 13 21131-004 2 NO. 1 & 4
GROMMET,SPARK PLG CAP 14 21132-005 2 NO. 1 & 4
CAP-SPARK PLUG 15 21130-1010 2 NO. 2 & 3
GROMMET,HIGH TENSION 16 21131-005 2 NO. 2 & 3
GROMMET,PLUG CAP 17 21131-006 2 NO. 2 & 3
SPARK PLUG B8ES 18 B8ES 4 LOCAL PROCUREMENT ITEM
RESISTOR 19 28018-1020 1
BRACKET,RESISTOR 20 11034-1555 1
CLAMP,WIRING HARNESS 21 21126-008 1
SCREW PAN HEAD 6X12 22 220B0612 2
WASHER SPRING 6MM 23 461F0600 2
REGULATOR,VOLTAGE 24 21066-1008 1
WASHER SPRING 6MM 25 461F0600 2
BOLT-UPSET 26 112G0625 2
IGNITER 27 21119-5001 1 LEAD WIRE (RED) = 700 M/M
IGNITER 27 21119-5001 1 LEAD WIRE (RED) = 750 M/M
WASHER SPRING 6MM 28 461F0600 2
BOLT-UPSET 6X14 29 112B0614 2
WASHER PLAIN 5MM 30 410B0500 3
WASHER SPRING 5MM 31 461F0500 3
SCREW PAN HEAD 5X12 32 220B0512 3
WIRING HARNESS,LEAD 34 26001-1071 1
