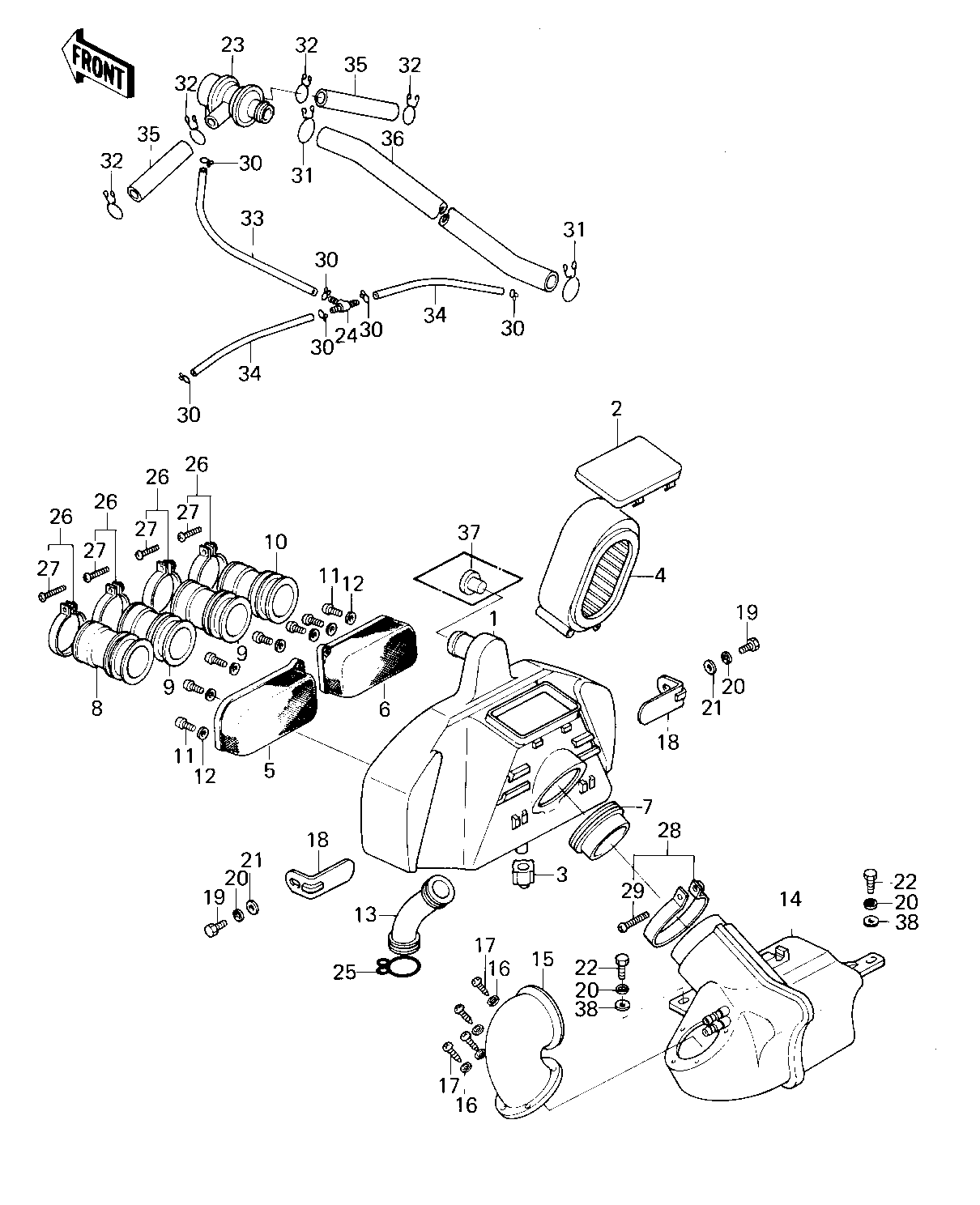

1979 Shaft - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BODY,AIR CLEANER 1 11011-1055 1
CAP,AIR CLEANER 2 11012-1066 1
CAP,DRAIN 3 11012-1083 1
ELEMENT,AIR CLNR 4 11013-1015 1
PLATE,CARBURETOR HOLD 5 11040-002 1
PLATE,CARBURETOR HOLD 6 11040-003 1
DUCT,AIR CLEANER 7 14073-1018 1
DUCT,AIR CLEANER,#1 8 14073-1022 1 #1
DUCT,AIR CLEANER,#2,3 9 14073-1023 2 #2,#3
DUCT,AIR CLEANER,#4 10 14073-1024 1 #4
SCREW-PAN-CROS 11 220C0412 8
WASHER,PLAIN,4M/M 12 92022-1041 8
TUBE,BLOW-BY 13 92059-1060 1
BODY,SILENCER 14 11011-1027 1
DUCT,SILENCER 15 14073-1016 1
WASHER PLAIN 5MM 16 411B0500 4
SCREW,5X12 17 92009-1051 4
BRACKET,AIR CLEANER 18 11034-1333 2
BOLT-UPSET,6X12 19 112G0612 2
WASHER SPRING 6MM 20 461F0600 4
WASHER PLAIN 6MM 21 411B0600 2
BOLT-UPSET,6X16 22 112G0616 2
VALVE ASSY,AIR SWITCH 23 16126-1014 1
FITTING,TUBE 24 92005-1017 1
CLAMP BREATHER PIPE 25 92037-028 1
CLAMP-INLET PIPE 26 92037-061 4
SCREW,PAN HEAD 27 92011-037 4
CLAMP-AIR CLEANER 28 92037-068 1
SCREW PAN HEAD 6X35 29 220B0635 1
CLAMP-PIPE 30 92037-072 6
CLAMP 31 92037-1076 2
CLAMP,BREATHER TUBE 32 92037-213 4
TUBE,VACUUM,LONG 33 92059-1162 1
TUBE,VACUUM,LONG 34 92059-1162 2
TUBE,14X20X90 35 92059-1061 2
TUBE,19X25X300 36 92059-1062 1
WASHER,6.5X16X2 38 92022-1565 2
