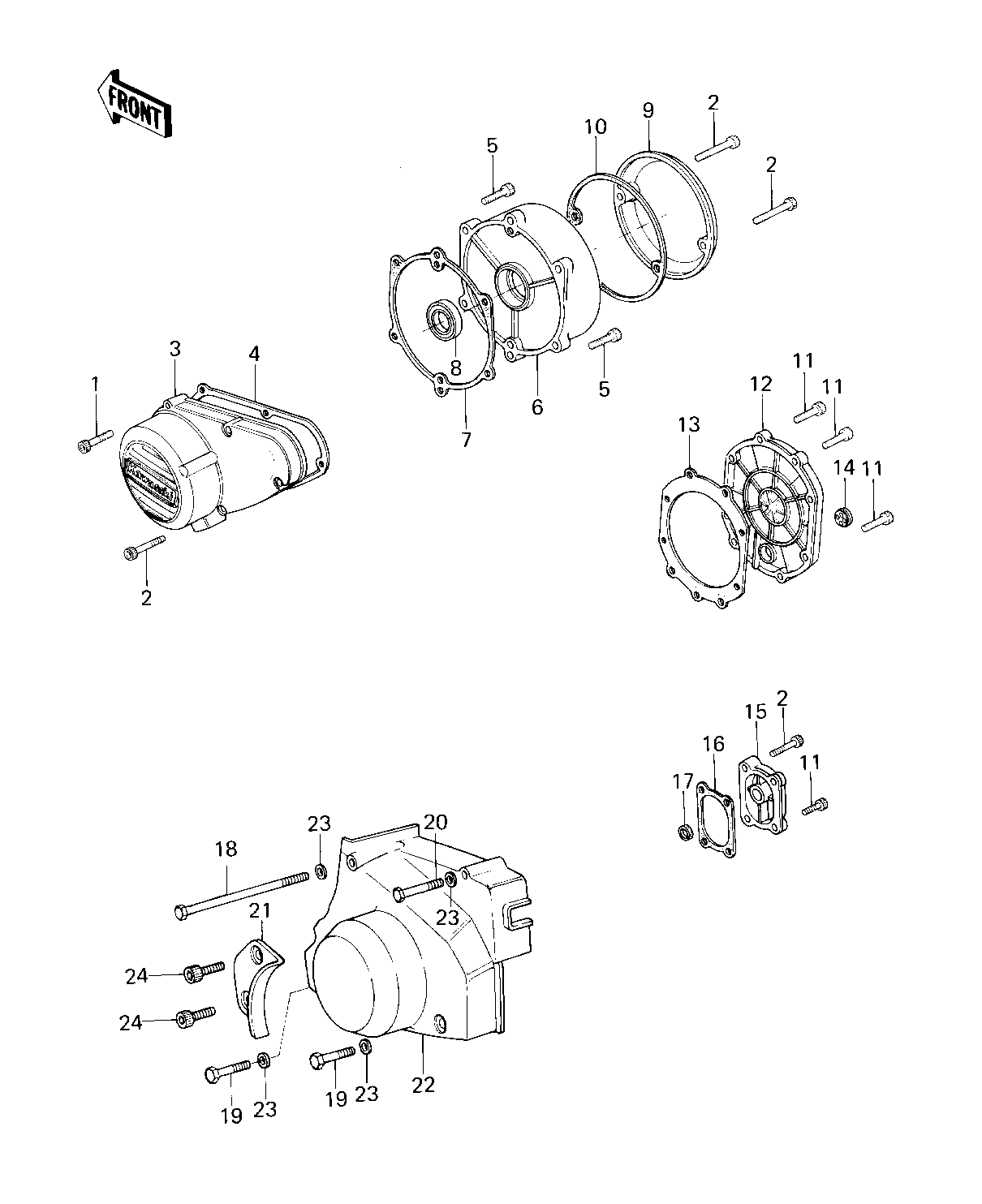

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,SOCKET,6X30 | 1 | 120P0630 | 6 | ||
| BOLT,SOCKET,6X40 | 2 | 120P0640 | 6 | ||
| COVER,GENERATOR | 3 | 14031-1015 | 1 | ||
| GASKET,GENERATOR COVE | 4 | 11060-1075 | 1 | ||
| BOLT,SOCKET,6X22 | 5 | 120P0622 | 6 | ||
| COVER,R.H ENGINE | 6 | 14032-083 | 1 | ||
| GASKET,RH ENGINE COVE | 7 | 11060-1071 | 1 | ||
| OIL SEAL,S25407R | 8 | 92050-047 | 1 | ||
| COVER,CENTACK BREAKER | 9 | 14025-1037 | 1 | ||
| GASKET,POINT CAP | 10 | 14050-006 | 1 | ||
| BOLT,6X25 | 11 | 120P0625 | 11 | ||
| COVER,CLUTCH | 12 | 14032-1006 | 1 | ||
| GASKET,CLUTCH | 13 | 14046-024 | 1 | ||
| GAUGE,OIL LEVEL | 14 | 52015-004 | 1 | ||
| COVER,KICKSTARTER, | 15 | 14032-075-21 | 1 | F.BLACK | |
| GASKET,KICK COVER | 16 | 14046-025 | 1 | ||
| OIL SEAL,SC22325 | 17 | 92049-1048 | 1 | ||
| BOLT-UPSET,6X125 | 18 | 112G06125 | 1 | ||
| BOLT-UPSET | 19 | 112G0625 | 2 | ||
| BOLT-UPSET | 20 | 112G0645 | 1 | ||
| CAP,CLUTCH RELEASE AJ | 21 | 11012-1064 | 1 | ||
| COVER,GEAR CASE | 22 | 14025-1092 | 1 | ||
| WASHER PLAIN 6MM | 23 | 410B0600 | 4 | ||
| BOLT,6X14 | 24 | 120P0614 | 2 |
| BOLT,SOCKET,6X30 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X40 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COVER,GENERATOR | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COVE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COVER,R.H ENGINE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,RH ENGINE COVE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,S25407R | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CENTACK BREAKER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,POINT CAP | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| COVER,CLUTCH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,KICKSTARTER, | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F.BLACK |
| GASKET,KICK COVER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,SC22325 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X125 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,CLUTCH RELEASE AJ | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GEAR CASE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
