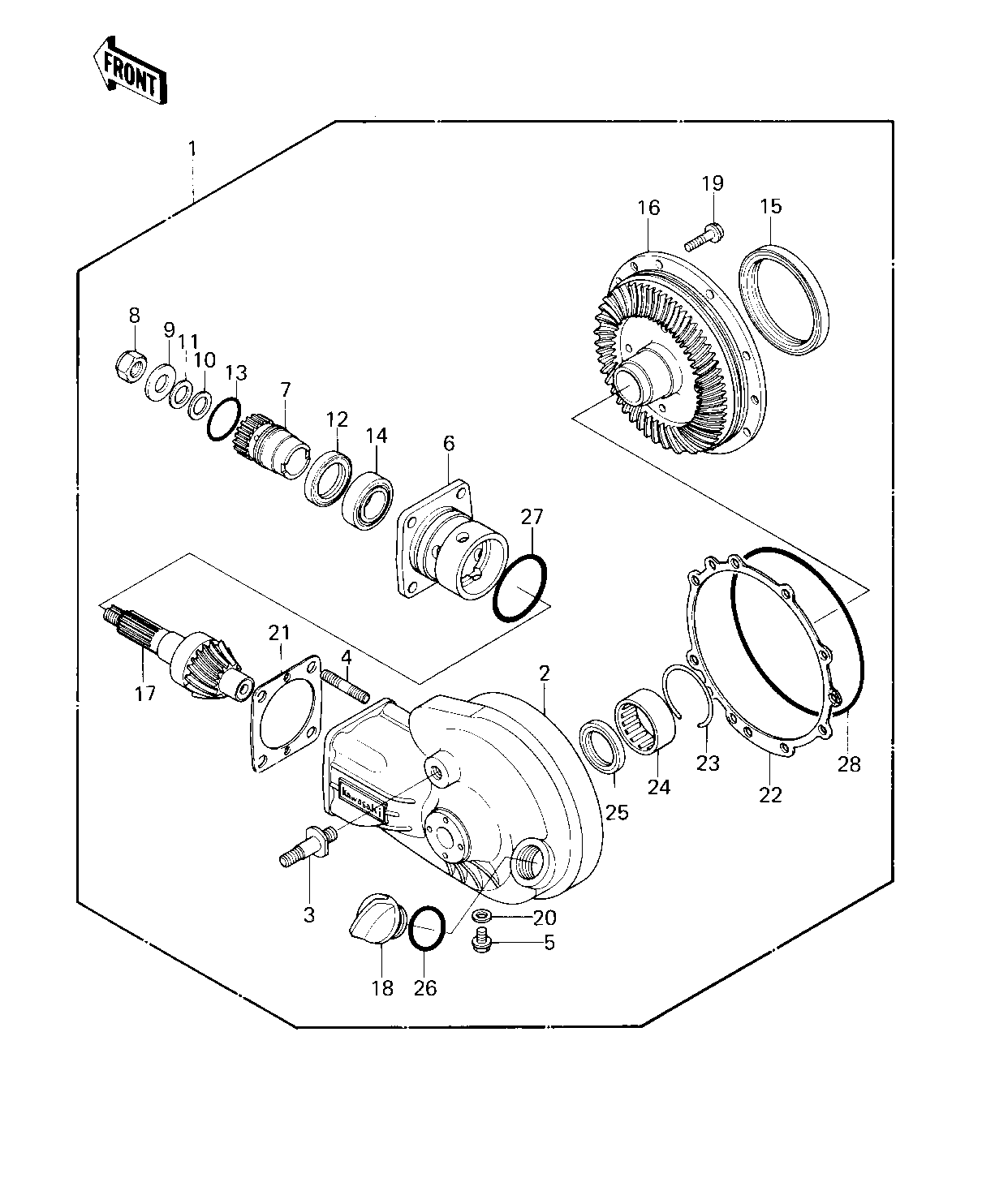

1979 Shaft - FINAL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR ASSY,FINAL 1 13101-1005 1
CASE ASSY,FINAL GEAR 2-4 11021-1008 1
STUD 3 92004-1020 1
STUD,10X30 4 92004-1024 4
BOLT,FLANGE 5 130B0812 1
HOUSING.BEARING 6 41046-1009 1
COUPLING,PINION GEAR 7 42034-1013 1
NUT,16M/M 8 92015-1059 1
WASHER 9 92022-1105 1
SHIM 10 92025-1027 AR
SHIM 10 92025-1028 AR
SHIM 10 92025-1029 AR
SHIM 10 92025-1030 AR
SHIM 10 92025-1031 AR
SHIM 11 92025-1032 AR
SHIM 11 92025-1033 AR
SHIM 11 92025-1034 AR
SHIM 11 92025-1035 AR
SHIM 11 92025-1036 AR
SHIM,0.10T 11 92025-1065 AR
SHIM,0.70T 11 92025-1069 AR
SHIM,0.80T 11 92025-1070 AR
SHIM,1.00T 11 92025-1071 AR
OIL SEAL,SC32487 12 92049-1033 1
"0" RING,I.D=32.7MM 13 92055-1037 1
BRG,ROLLER,4T-32005 14 92116-1004 1
OIL SEAL,S-831009HS 15 92049-1034 1
GEAR SET,FINAL BEVEL 15-17 13101-5028 1
CAP 18 16115-1003 1
BOLT,8X28 19 92001-1095 8
WASHER 20 92022-1086 1
SHIM,0.15T 21 92025-1052 AR
SHIM,0.50T 21 92025-1053 AR
SHIM,0.60T 21 92025-1054 AR
SHIM,0.70T 21 92025-1055 AR
SHIM,0.80T 21 92025-1056 AR
SHIM,0.90T 21 92025-1057 AR
SHIM,1.00T 21 92025-1058 AR
SHIM,1.20T 21 92025-1059 AR
SHIM,0.15T 22 92025-1060 AR
SHIM,0.50T 22 92025-1061 AR
SHIM,0.60T 22 92025-1062 AR
SHIM,0.70T 22 92025-1063 AR
SHIM,0.80T 22 92025-1064 AR
SHIM,0.10T 22 92025-1065 AR
SHIM,1.00T 22 92025-1066 AR
SHIM,1.20T 22 92025-1067 AR
RING,SNAP 23 92033-1020 1
BEARING 24 92046-1020 1
OIL SEAL 25 92049-1025 1
"0" RING,31MM 26 92055-049 1
"0" RING,I.D=57.6MM 27 92055-1038 1
"0" RING,I.D=150.4MM 28 92055-1039 1
