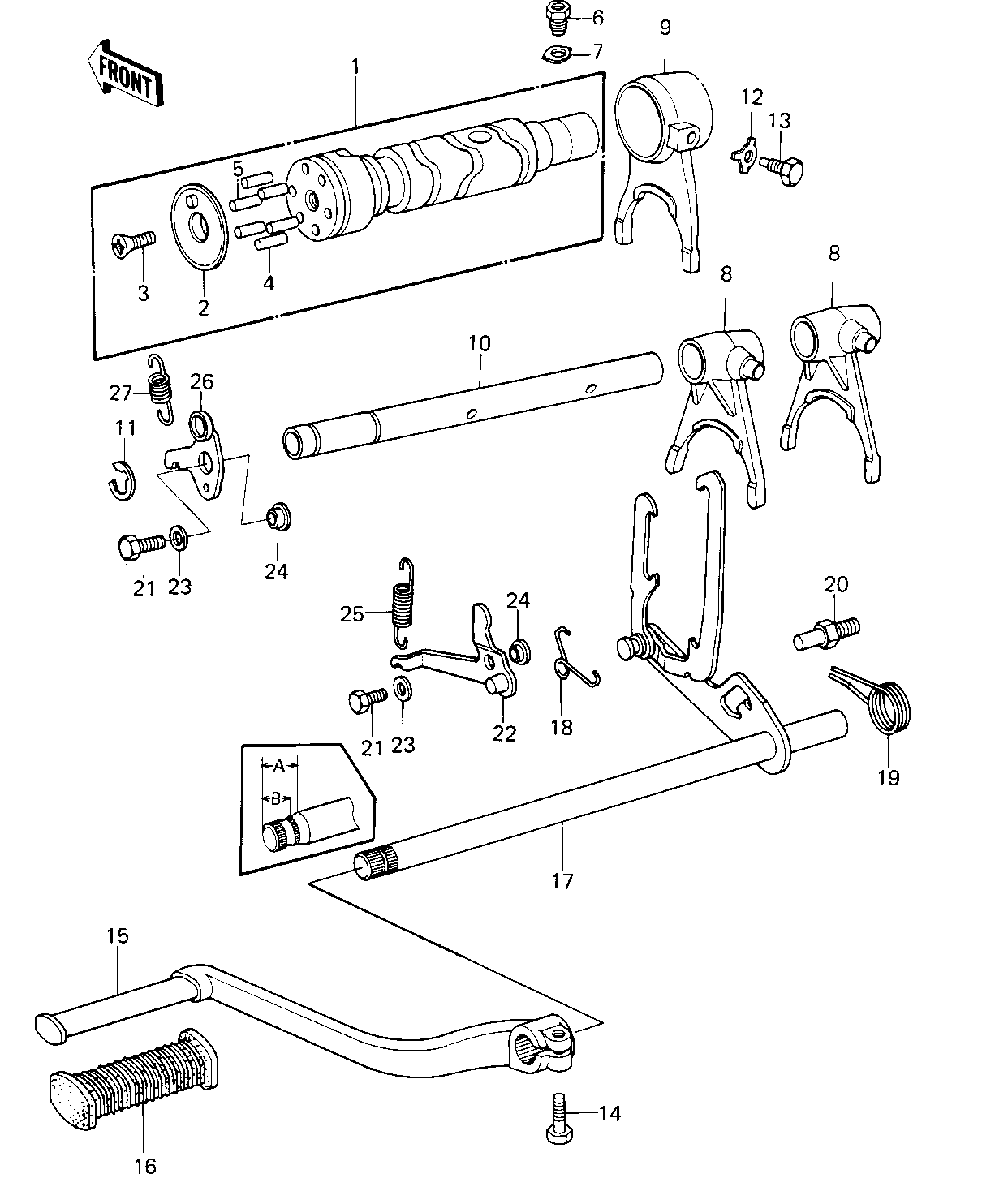

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM ASSY,GEAR CHANGE | 1 | 13239-1022 | 1 | ||
| HOLDER,CHANGE DRUM | 2 | 13091-1088 | 1 | ||
| SCREW CNTSNK HD 6X20 | 3 | 221B0620 | 1 | ||
| PIN GEAR CHANGE DRUM | 4 | 92042-014 | 5 | L=15.8M/M | |
| PIN-CHANGE DRUM | 5 | 92042-020 | 1 | L=17.8M/M | |
| BOLT,CHG DRUM POSITN | 6 | 92001-1052 | 1 | ||
| WASHER,LOCK | 7 | 92024-047 | 1 | ||
| FORK,SELECTOR,4TH&TOP | 8 | 13140-045 | 2 | ||
| FORK,SELECTOR,3RD | 9 | 13140-046 | 1 | ||
| ROD,SHIFT | 10 | 13209-011 | 1 | ||
| CIRCLIP 12MM | 11 | 480J1200 | 1 | ||
| WASHER LOCK 10MM | 12 | 92031-001 | 1 | ||
| PIN SELECT FORK GUIDE | 13 | 92043-016 | 1 | ||
| BOLT-UPSET | 14 | 112G0625 | 1 | ||
| PEDAL ASSY,GEAR CHNG | 15 | 13156-1023 | 1 | USE FOR 13161-1011 | |
| PEDAL,CHANGE | 15 | 13156-1038 | 1 | USE FOR 13161-1019 | |
| DAMPER RUBR GEAR CHNG | 16 | 92075-1175 | 1 | ||
| LEVER ASSY,GEAR CHANG | 17-19 | 13161-1019 | 1 | ||
| LEVER ASSY,GEAR CHANG | 17-19 | 13161-1019 | 1 | E/NO. 009621~ | |
| SPRING,KICK PAWL | 18 | 92083-018 | 1 | ||
| SPRING,CHG PEDL RTRN | 19 | 92083-028 | 1 | ||
| BOLT,RETURN SPRING | 20 | 92001-1401 | 1 | ||
| BOLT-UPSET | 21 | 112G0618 | 2 | ||
| LEVER,GEAR POSITIOING | 22 | 13168-1039 | 1 | ||
| WASHER,6.5X16X2 | 23 | 92022-1565 | 2 | ||
| BUSHING,GEAR POSITION | 24 | 92028-1058 | 2 | ||
| SPRING,GEAR POSITION | 25 | 92081-1148 | 1 | ||
| LEVER,NEUTRAL POSITON | 26 | 13236-1011 | 1 | ||
| SPRING RATCHET PA | 27 | 92081-003 | 1 |
| DRUM ASSY,GEAR CHANGE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CHANGE DRUM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW CNTSNK HD 6X20 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN GEAR CHANGE DRUM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | L=15.8M/M |
| PIN-CHANGE DRUM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | L=17.8M/M |
| BOLT,CHG DRUM POSITN | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FORK,SELECTOR,4TH&TOP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FORK,SELECTOR,3RD | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SHIFT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 12MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 10MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN SELECT FORK GUIDE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL ASSY,GEAR CHNG | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 13161-1011 |
| PEDAL,CHANGE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 13161-1019 |
| DAMPER RUBR GEAR CHNG | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,GEAR CHANG | |
| REF # | 17-19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,GEAR CHANG | |
| REF # | 17-19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | E/NO. 009621~ |
| SPRING,KICK PAWL | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHG PEDL RTRN | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,RETURN SPRING | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER,GEAR POSITIOING | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X2 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,GEAR POSITION | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,GEAR POSITION | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,NEUTRAL POSITON | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING RATCHET PA | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
