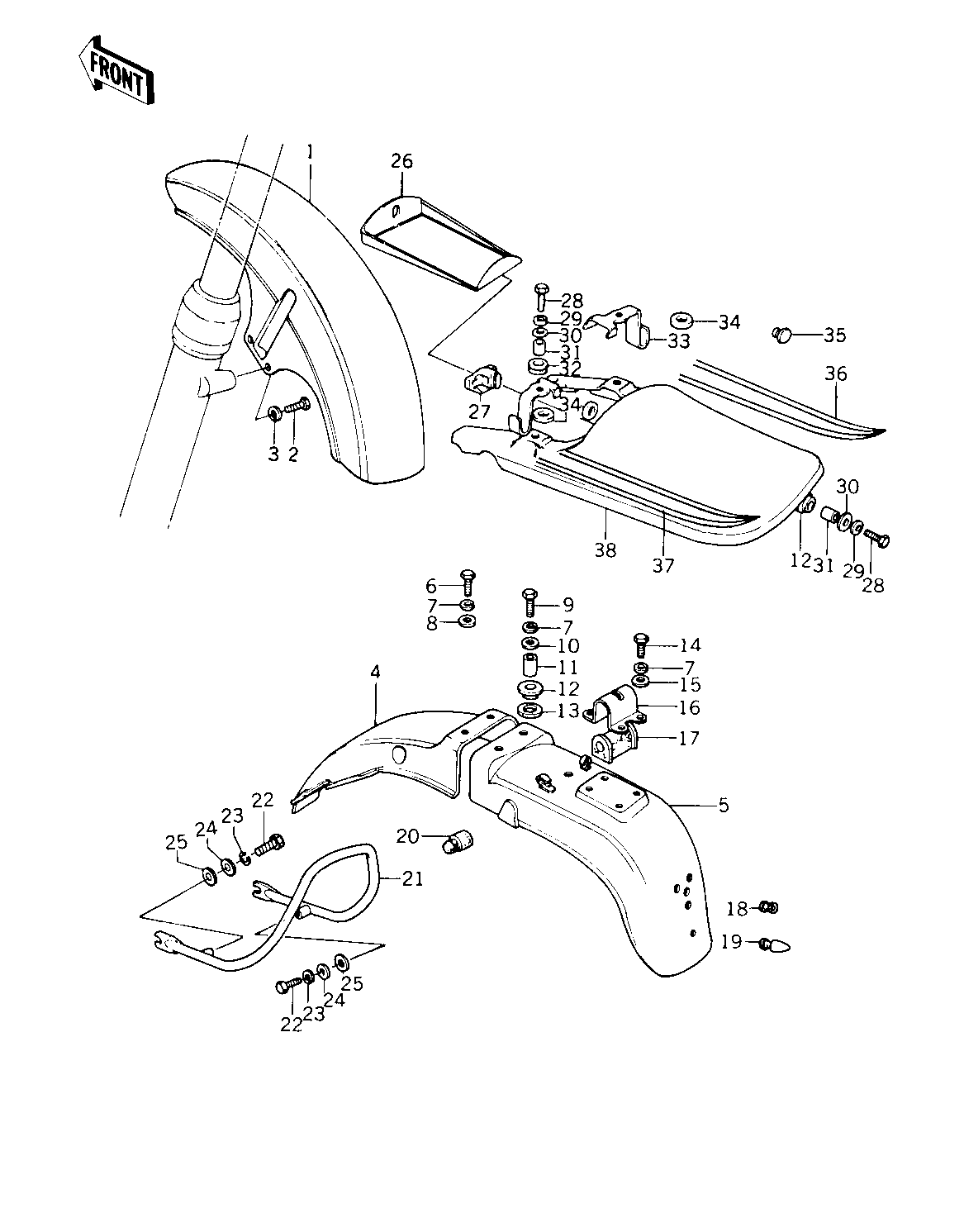

1976 LTD - FENDERS/SEAT COVER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR 1 35004-1047 1
FENDER-FR 1 35004-1047 1
BOLT-UPSET,6X16 2 112G0616 4
WASHER SPRING 6MM 3 461F0600 4
FENDER-RR 4 35022-137 1
FENDER-RR 5 35022-151 1
BOLT-UPSET 6X14 6 112B0614 2
WASHER SPRING 6MM 7 461F0600 2
WASHER PLAIN 8 92022-024 2
BOLT-HEX HEAD,6X32 9 110N0632 2
WASHER,PLAIN,7MM 10 92022-228 2
COLLAR,REAR FENDER 11 92027-162 2
RUBBER,FENDER COVER 12 92075-174 2
DAMPER RUBBER 13 92075-175 2
BOLT-UPSET,6X16 14 112G0616 4
WASHER PLAIN 6MM 15 411B0600 4
UNAVAILABLE IN PRICE BOOK 16 36026-006 1
DAMPER RUBBER,RR FEN 17 92075-132 1
GROMMET HARNESS 10MM 18 92071-019 1
RUBBER,LICENSE PLATE 19 92075-176 1
DAMPER RUBBER,RR FEN 20 92075-135 2
REAR STAY 21 35032-040 1
BOLT-UPSET,10X22 22 112B1022 2
WASHER SPRING 10MM 23 461F1000 2
WASHER PLAIN 10MM 24 411B1000 2
WASHER-PL-10.5X26X2. 25 92022-044 2
CASE 26 32099-018 1
PLUG,CASE RUBBER 27 92074-024 1
BOLT-UPSET 28 112G0625 4
WASHER SPRING 6MM 29 461F0600 4
WASHER,PLAIN,7MM 30 92022-228 4
COLLAR,REAR FENDER 31 92027-162 4
RUBBER,FENDER COVER 32 92075-174 4
BRACKET,HELMET HOLDE 33 32122-010 1
DAMPER RUBBER 34 92075-175 4
PLUG,BACKREST HOLE 35 92074-022 2
DECAL RH TAIL 36 56029-137 1
DECAL LH TAIL 37 56029-136 1
REAR FENDER COVER 38 53043-013-8B 1
