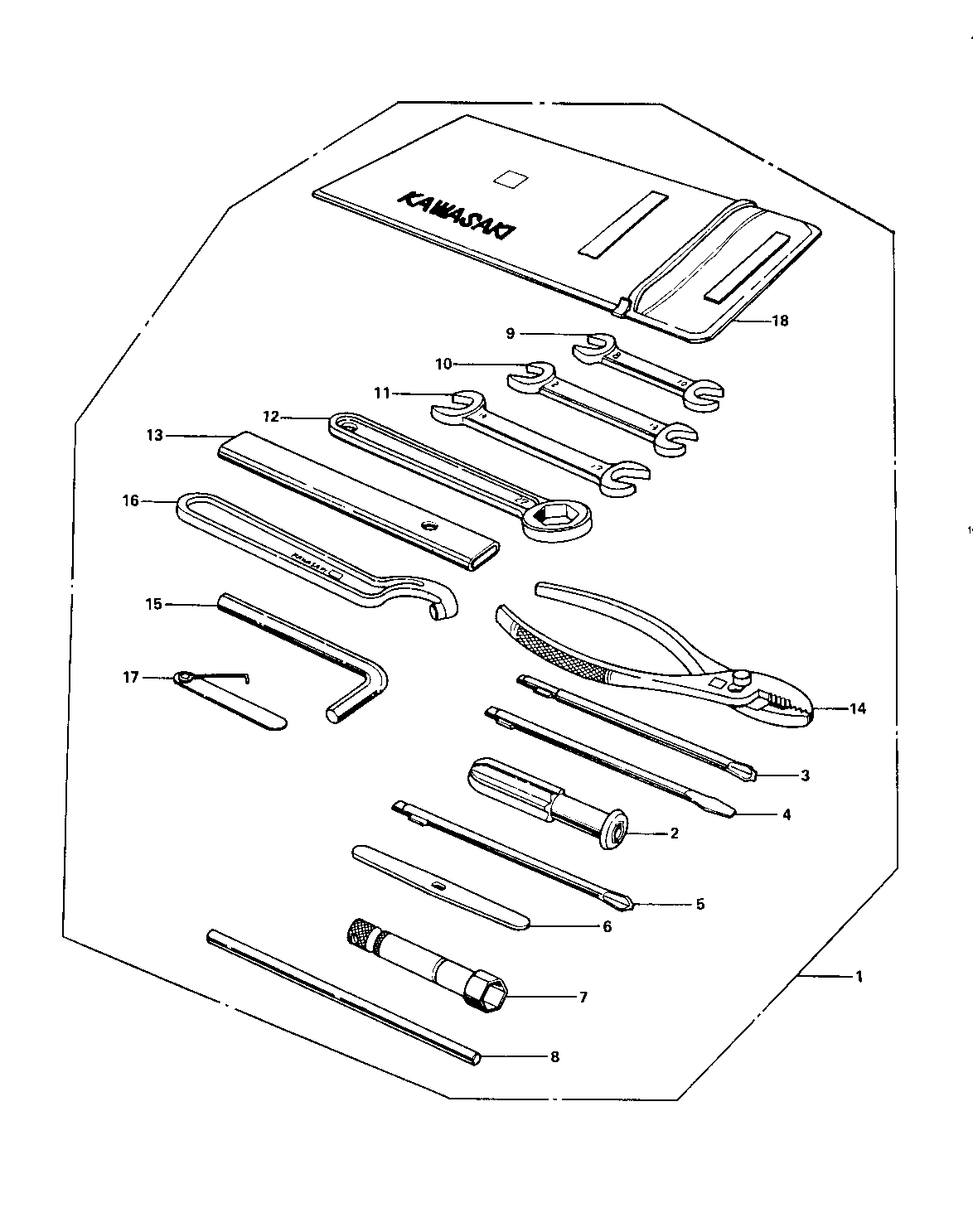

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| *** N.L.A.*** (Canada) | 1 | 56007-029 | 1 | ||
| 92106-1001 (Canada) | 2 | 92106-004 | 1 | ||
| TOOL-DRIVER | 3 | 92107-006 | 1 | ||
| 92107-1052 (Canada) | 4 | 92107-007 | 1 | ||
| 92107-1002 (Canada) | 5 | 92107-008 | 1 | ||
| LEVER,SCREW DRIVER | 6 | 92111-006 | 1 | ||
| WRENCH,SPARK PLUG | 7 | 92108-008 | 1 | ||
| BAR,SPARK PLUG WRENCH | 8 | 92111-005 | 1 | ||
| WRENCH,OPEN,8X10 | 9 | 92126-001 | 1 | ||
| WRENCH,OPEN END,12X13 | 10 | 92126-002 | 1 | ||
| TOOL-WRENCH,OPEN END, | 11 | 92126-003 | 1 | ||
| OOL-WRENCH,BOX END,2 | 12 | 92109-009 T | 1 | ||
| TOOL-WRENCH,BOX END,2 | 13 | 92111-004 | 1 | ||
| PLIERS,160MM | 14 | 92112-003 | 1 | ||
| WRENCH,ALLEN,10MM | 15 | 92127-001 | 1 | ||
| 92110-1035 (Canada) | 16 | 92108-007 | 1 | ||
| GAUGE,THICKENSS | 17 | 92128-001 | 1 | ||
| BAG,TOOL | 18 | 56008-006 | 1 |
