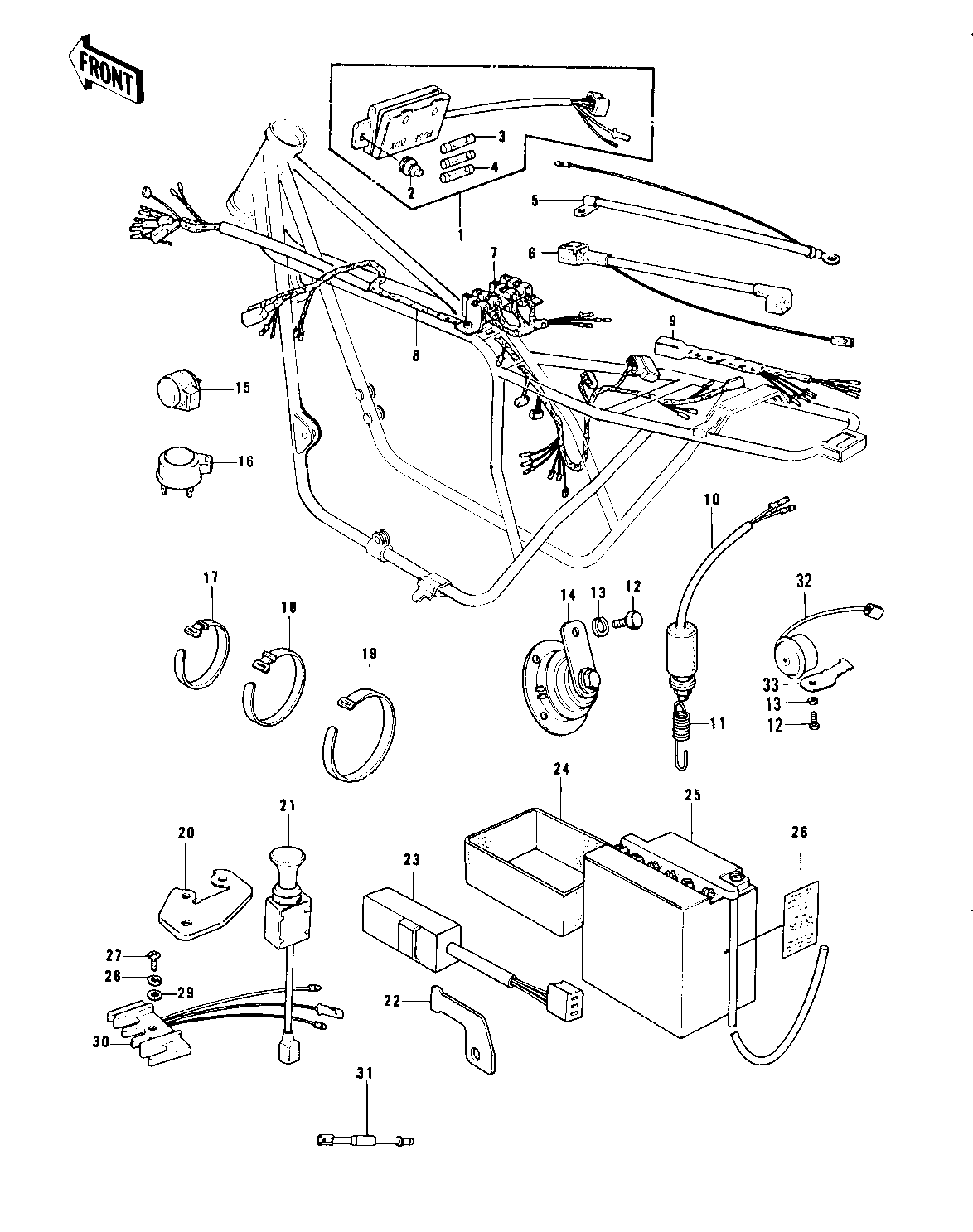

1976 KZ900-A4 - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE ASSY 1 26004-035 1
DAMPER RUBBER,FUSE 2 92075-279 1
FUSE-20A 3 26006-005 2
FUSE 10A 4 26006-003 3
WIRE,BATTERY GROUND 5 26010-043 1
WIRE,STARTER LEAD 6 26010-042 1
WIRING HARNESS,CENTER 7 26002-057 1
WIRING HARNESS,MAIN 8 26001-135 1
WIRING HARNESS,REAR 9 26002-031 1
SWITCH-BRAKE LAMP 10 27010-017 1
SPRING BRAKE LAMP SW 11 27011-009 1
BOLT-SMALL-UPSET,8X16 12 110B0816 2
WASHER SPRING 8MM 13 461F0800 2
HORN 14 27003-065 1
RELAY-TURN SIGNAL 15 27002-011 1
RELAY,TURN SIGNAL 16 27002-016 1
BAND,SHORT 17 92072-030 5
BAND,LONG 18 92072-032 4
BAND,AIR CLEANER 19 92072-073 2
BKT,HAZARD SWITCH 20 32060-019 1
SWITCH,HAZARD 21 27014-008 1
BRACKET,OUTAGE SWITCH 22 32060-014 1
SWITCH,OUTAGE,INDICTR 23 28019-001 1
CASE,BATTERY 24 32099-015 1
YUA BAT YB10L-A2 25 26012-041 1 YB-10
LABEL-WARNING,BATTERY 26 56022-157 1
SCREW PAN HEAD 6X20 27 220B0620 1
WASHER SPRING 6MM 28 461F0600 1
WASHER PLAIN 6MM 29 411B0600 1
REGULATOR,HAZARD 30 21066-024 1
REGULATOR 31 21066-026 1
ALARM,TURN SIGNAL 32 27040-002 1
BRACKET,ALARM 33 27023-005 1
