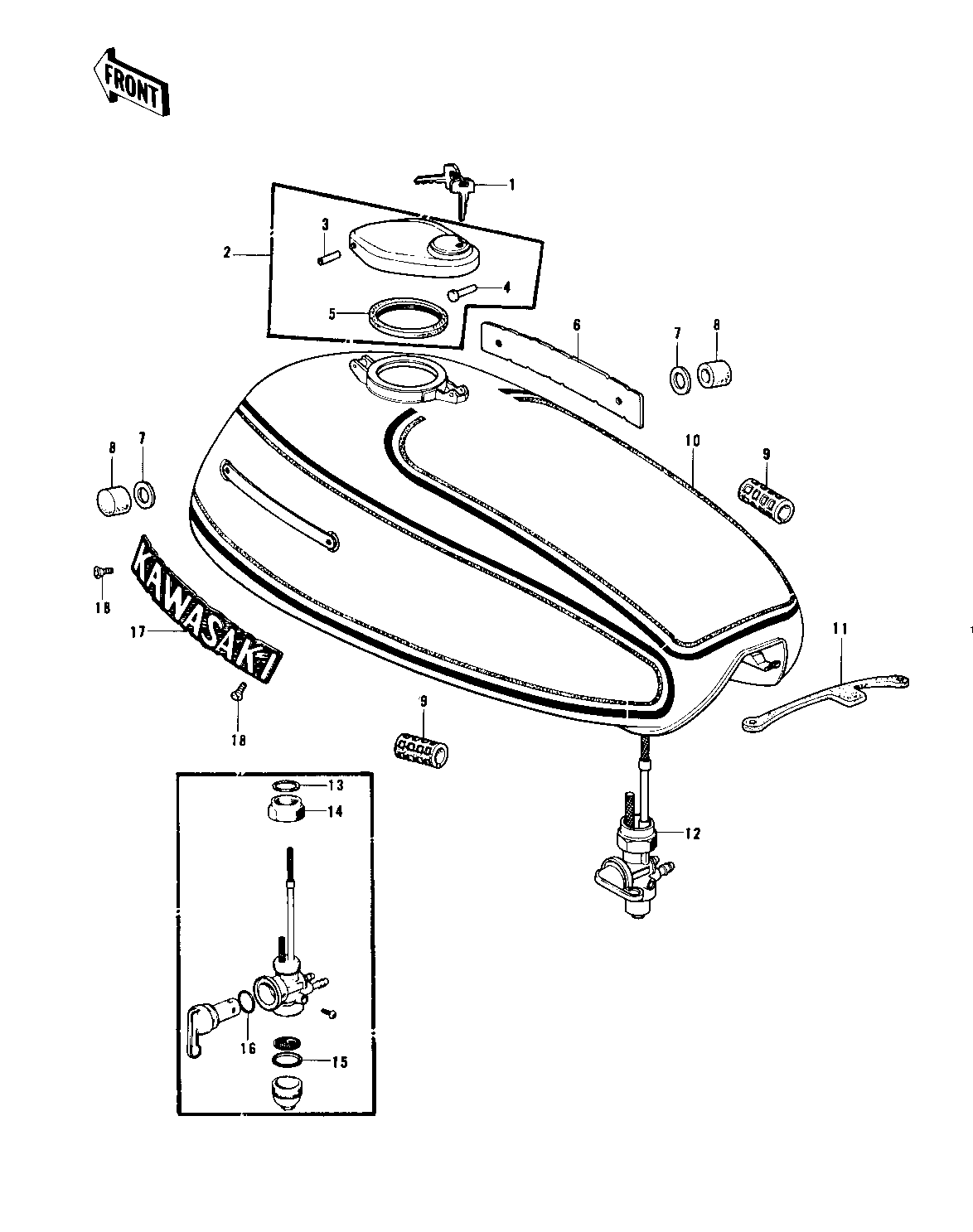

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK | 2 | 51048-012 | 1 | ||
| PIN,CAP HINGE | 3 | 92043-127 | 1 | ||
| PIN,HOOK | 4 | 92043-126 | 1 | ||
| GASKET-FUEL TANK CAP | 5 | 51059-008 | 1 | ||
| EMBLEM,FUEL TANK | 6 | 56014-064 | 1 | ||
| WASHER-PL-10.5X26X2.3 | 7 | 92022-044 | 2 | ||
| DAMPER RUBBER,FL TANK | 8 | 92075-125 | 2 | ||
| DAMPER RUBBER | 9 | 92075-084 | 2 | ||
| TANK-FUEL,D.GREEN | 10 | 51001-107-3M | 1 | ||
| TANK-FUEL,BROWN | 10 | 51001-107-3N | 1 | ||
| BAND,FUEL TANK | 11 | 92072-042 | 1 | ||
| COCK ASSY,FUEL | 12 | 51023-055 | 1 | ||
| FUEL COCK ASSY | 12 | 51023-055 | 1 | ||
| GASKET-FUEL COCK JNT. | 13 | 92065-081 | 1 | ||
| FUEL COCK JOINT NUT | 14 | 51035-009 | 1 | ||
| GASKET FUEL COCK CUP | 15 | 51037-010 | 1 | ||
| "O" RING,14MM | 16 | 670B2014 | 1 | ||
| EMBLEM,FUEL TANK | 17 | 56013-057 | 1 | ||
| SCREW-CSK-CROS | 18 | 92012-003 | 4 |
| CAP,FUEL TANK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,CAP HINGE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,HOOK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL TANK CAP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,FUEL TANK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PL-10.5X26X2.3 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FL TANK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,D.GREEN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,BROWN | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COCK ASSY,FUEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUEL COCK ASSY | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL COCK JNT. | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUEL COCK JOINT NUT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET FUEL COCK CUP | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,14MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,FUEL TANK | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
