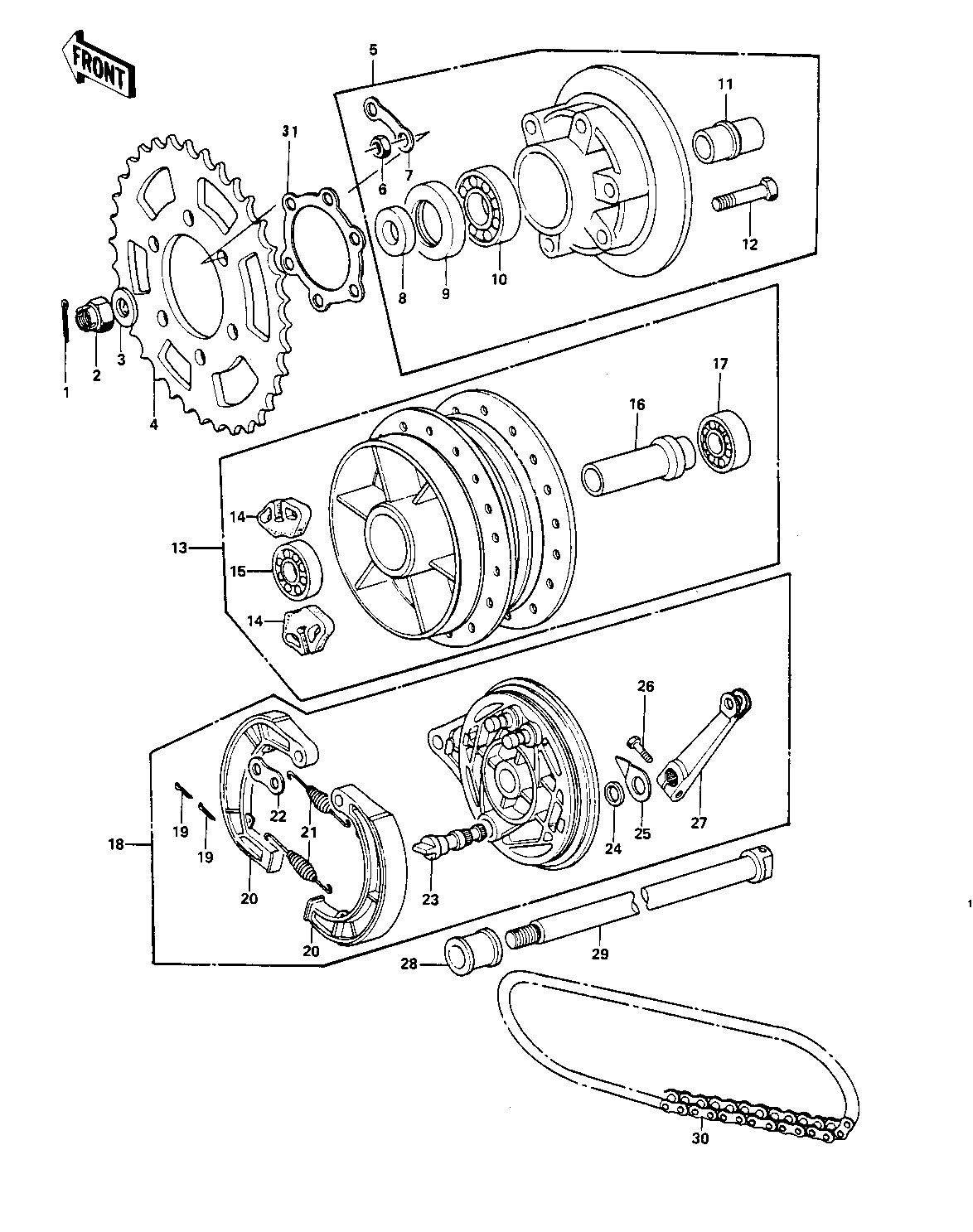

1976 KZ900-A4 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035 1
NUT CASTLE,18MM 2 42045-018 1
WASHER,PLAIN,20MM T= 4.5 3 92022-248 AR
WASHER,PLAIN,20MM T-6.0 3 92022-249 AR
REAR SPROCKET 35T 4 42041-118 1
COUPLING ASSY,RR HUB 5 42008-029 1
COUPLING ASSY,RR BRAK 5 42008-013 AL
NUT 10MM 6 42045-005 6
WASHER-LOCK 7 92088-013 3
COLLAR,RR HUB COUPLNG 8 42037-023 1
OIL SEAL 9 92050-027 1
BALL BEARING,#6206 10 601B6206 1
SLEEV,RR HUB CUPLING 11 42036-015 1
BOLT-REAR SPROCKET 12 92003-087 6
DRUM ASSY,REAR BRAKE 13 42005-030 1
SHOCK DAMPER 14 42014-021 6
BEARING BALL #6304 15 601B6304 1
SPACER-RR HUB BEARING 16 42010-021 1
BALL BEARING,#6304Z 17 601B6304Z 1
PANEL-ASY,RR BRK 18 42006-062 1
PIN COTTER 3.0X25 19 550D3025 2
SHOE,BRAKE 20 41048-016 2
SPRING,BRAKE SHOE 21 41049-007 1
WASHER-BRAKE SHOE 22 41045-006 1
CAM SHAFT,BRAKE 23 41050-017 1
DUST SHIELD-BRAKE CAM 24 41051-003 1
INDICATOR,BRAKE SHOE 25 41085-004 1
BOLT-SMALL-UPSET 8X25 26 115B0825 1
LEVER,REAR BRAKE CAM 27 42029-033 1
COLLAR,REAR AXLE 28 42032-037 1
AXLE,REAR 29 42031-034 1
DR CHAIN 630X92 30 92057-107 1 630X92L
SPACER,REAR HUB 31 92026-108 1 USE WITH 42008-013
