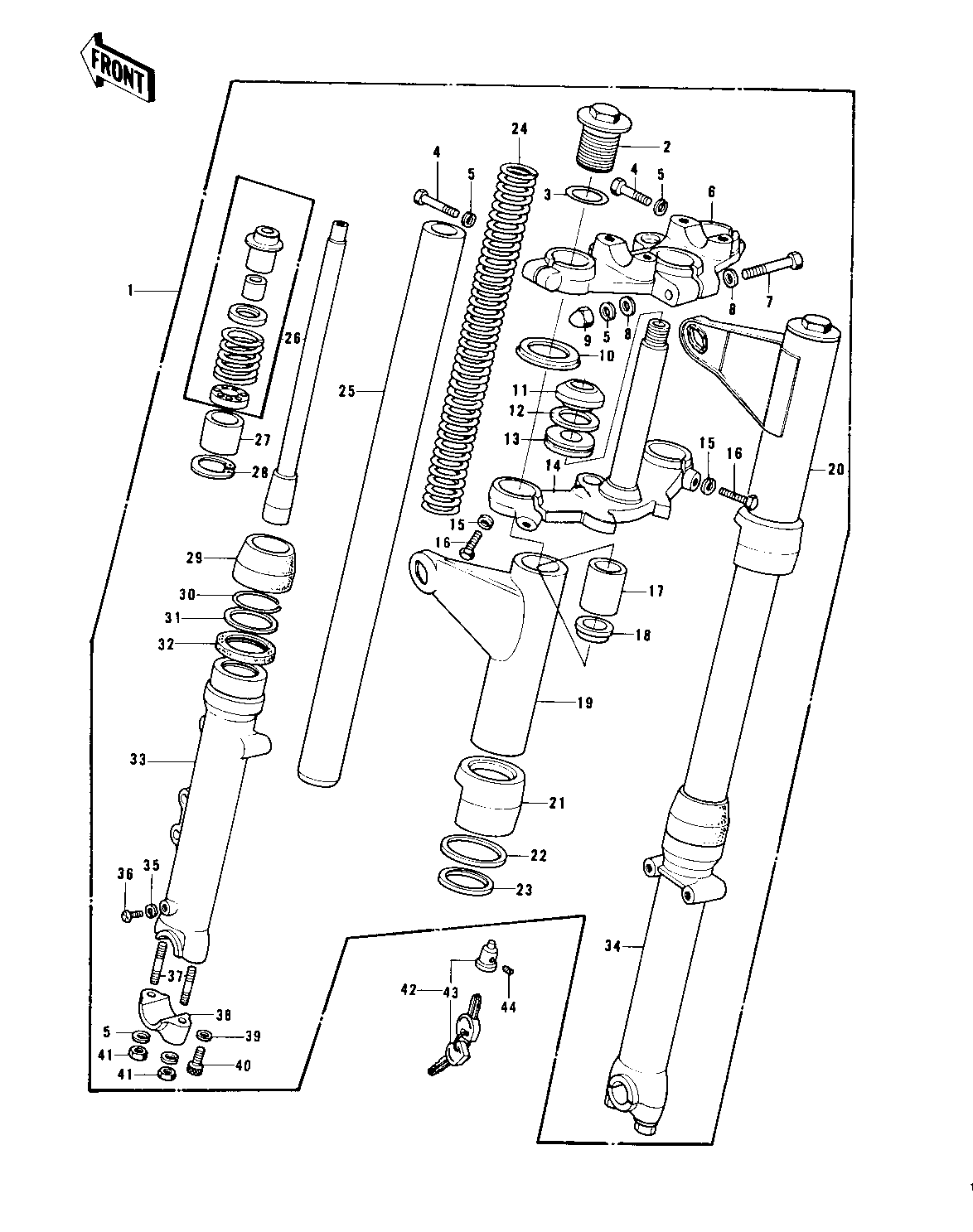

1976 KZ900-A4 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-175 1
BOLT-FORK TOP 2 44062-003 2
'O' RING FORK TOP 3 44046-015 2
BOLT-HEX HEAD 8X35 4 44041-048 2
WASHER SPRING 8MM 5 461F0800 7
HEAD,STEERING 6 44039-073 1
BOLT, HEX HEAD,8MM 7 44041-042 1
WASHER PLAIN 8MM 8 410B0800 2
NUT 8MM 9 92020-007 1
WASHER,FORK COVER 10 44064-005 2
CONE,STEERING STEM 11 92047-012 1
WASHER,PLAIN 12 92022-231 1
OIL SEAL,STEERING STM 13 92056-003 1
STEM,STEERING 14 44037-098 1
WASHER SPRING 12MM 15 461F1200 2
BOLT-HEX HEAD,12X36 16 92003-064 2
SPACER 17 44028-039 2
GUIDE-FORK SPRING 18 44029-019 2
COVER,L.H FORK 19 44033-072 1
COVER,R.H FORK 20 44034-072 1
GUIDE,FORK COVER 21 44064-025 2
WASHER,FORK COU GUID 22 44064-008 2
GASKET,FORK COVER 23 44045-038 2
SPRING,FORK 24 44026-071 2
TUBE,FORK INNER 25 44013-037 2
CYLINDER-FORK 26 44022-027 2
PISTON,FORK 27 44018-009 2
CIRCLIP,FORK PISTON 28 44044-019 2
DUST SHEILD,FORK 29 44010-032 2
CIRCLIP 30 44044-015 2
WASHER-OIL SEAL FIT 31 44043-051 2
SEAL-OIL,FORK OUTER P 32 44009-024 2
TUBE,LH,FORK OUTER 33 44005-063 1
TUBE,RH,FORK OUTER 34 44006-061 1
GASKET FORK DRAIN PLG 35 44045-002 2
SCREW PAN HEAD 4X8 36 220B0408A 2
STUD,8X35 37 172G0835 2
HOLDER,FRONT AXLE 38 44063-014 2
GASKET,FORK CYLINDER 39 44045-034 2
BOLT-FORK CYLINDER 40 44041-040 2
UT,LOCK,8MM 41 92019-022 N 4
LOCK,STEERING 42 27016-048 1
SCREW,SEAT LOCK 44 92014-012 1
