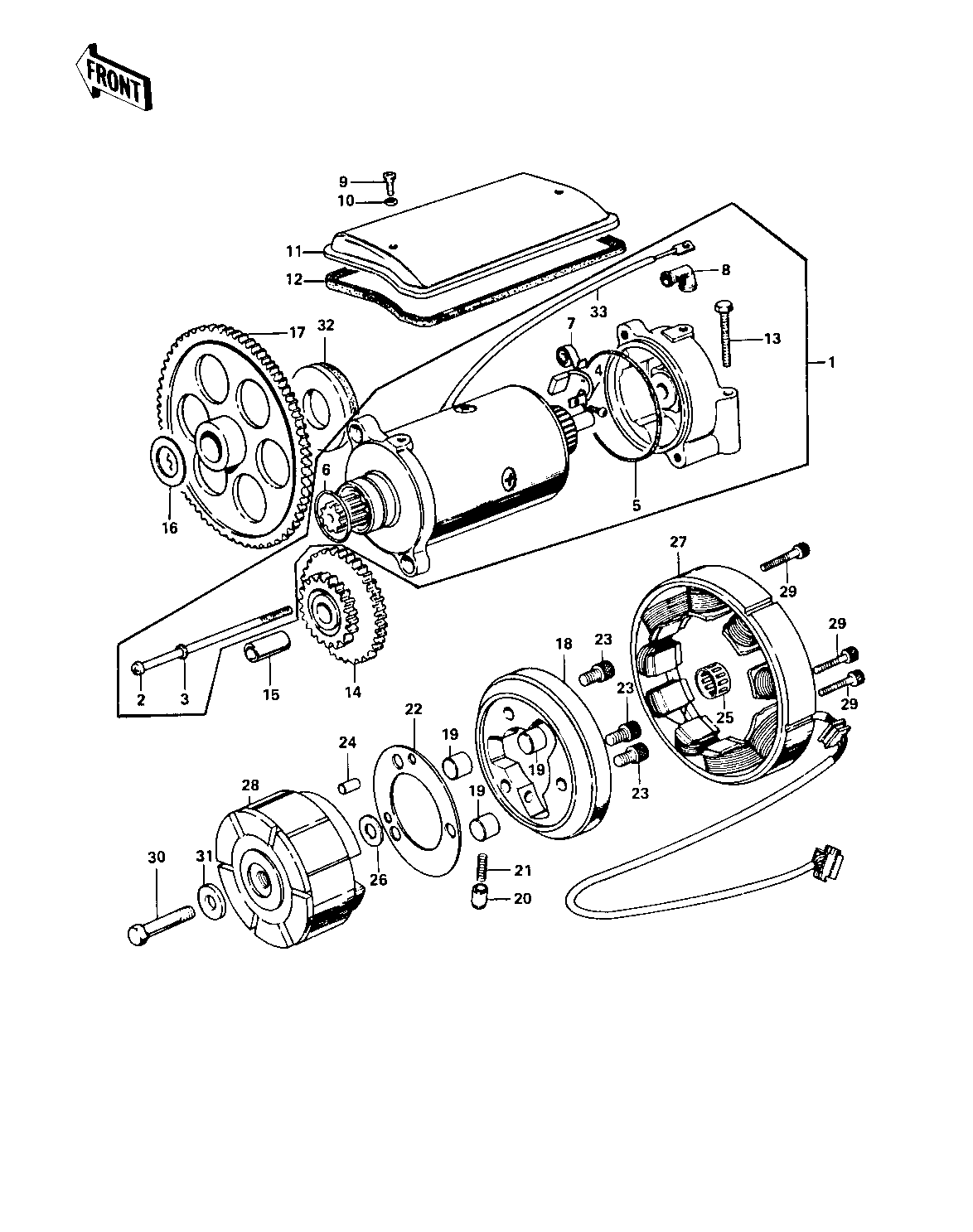

1976 KZ900-A4 - GENERATOR/STARTER MOTOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MOTOR ASSY,STARTER 1 21163-004 1
SCREW,PAN HEAD,6X110 2 21015-005 2
WASHER SPRING 6MM 3 461F0600 2
CARBON BRUSH 4 21039-003 2
"0" RING,STARTING MTR 5 21027-003 1
"0" RING,24 MM 6 21027-004 1
SPRING,CARBON BRUSH 7 21040-003 2
CAP,STARTIN MOTOR TERMINAL 8 21017-017 1
BOLT (6X10) 9 110N0610 2
WASHER PLAIN 6MM 10 410B0600 2
COVER,STARTING MOTOR 11 21165-001 1
GASKET,START MOTOR CV 12 21166-001 1
BOLT HEX HEAD 6X56 13 110B0656 2
GEAR,STARTING MOTOR 19T 70T 14 21167-002 1
PIN-PISTON 15 13002-007 1
WASHER 22MM 16 92026-091 1
GEAR,STARTING CLUTCH 17 21167-003 1
CLUTCH ASSY,STARTING 18 13194-1006 1
ROLLER 15MM 19 92122-001 3
PLUG 20 92043-087 3
SPRING 21 92081-110 3
PLATE,CLUTCH STARTING 22 92026-082 1
BOLT,8X16 23 92003-104 3
PIN,DOWEL,6X22 24 551A0622 1
BEARING,K222620 25 92046-033 1
WASHER,PLAIN,O.D. 35.5 MM 26 92026-092 1
STATOR ASSY 27 21076-023 1
ROTOR 28 21007-032 1
BOLT-SOCKET,6X35,BLAC 29 120Q0635 3
BOLT,8X40 30 114G0840 1
WASHER 8MM 31 92022-218 1
DAMPER RUBBER 6.3T 36MM 32 92075-192 AR
DAMPER RUBBER 7.3T 36MM 32 92075-193 AR
DAMPER RUBBER 8.3T 36MM 32 92075-194 AR
WIRE,LEAD 33 26010-048 1
