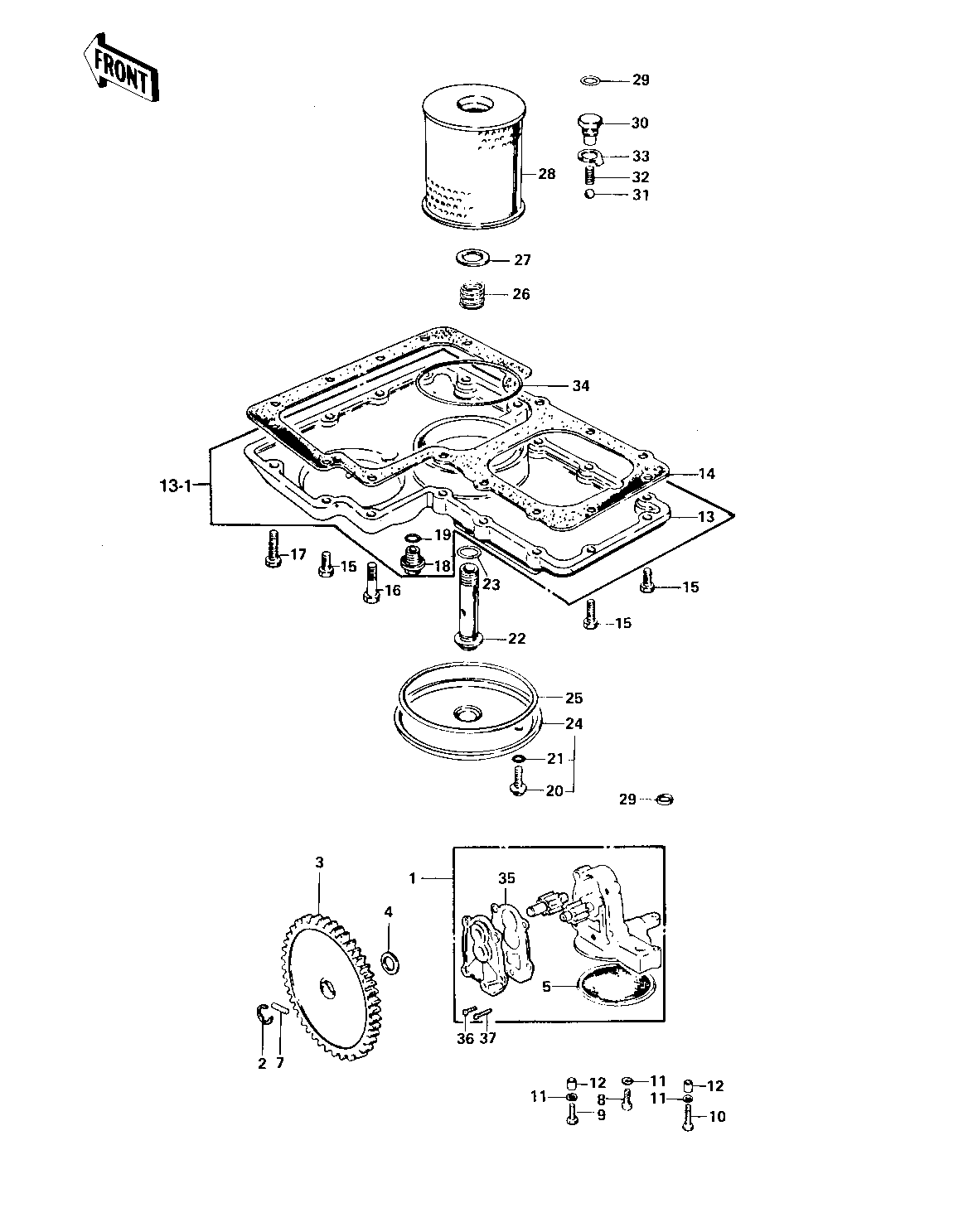

1976 KZ900-A4 - OIL PUMP/OIL FILTER/OIL PAN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-ASSY-OIL 1 16082-069 1
CIRCLIP,7MM 2 482K7000 1
GEAR,OIL PUMP 49T 3 16085-019 1
WASHER,LOCK,16MM 4 92026-080 1
STRAINER,OIL PUMP 5 16111-004 1
SCREW PAN HEAD 5X8 6 220B0508A 3
PIN,DOWEL,3X14 7 551A0134 1
BOLT,FLANGED,6X22 8 92001-163 1
BOLT,HEX HEAD,6X35 9 92001-164 1
BOLT,HEX HEAD,6X45 10 92001-165 1
WASHER PLAIN 6MM 11 410B0600 3
PIN,DOWEL,8X10 12 92042-038 2
PAN-OIL 13 49034-5009 1 NO LONGER AVAILABLE
PAN-OIL 13-1 49034-5009 1
GASKET,OIL PAN 14 16112-002 1
BOLT,FLANGED,6X25 15 92003-178 13
BOLT, HEX HEAD, 6X34 16 92003-159 3
BOLT-FLANGED,6X40 17 92003-179 1
PLUG,OIL DRAIN 18 92001-1183 1
"O" RING,22MM 19 670B2022 1
PLUG,OIL DRAIN 20 92066-024 1
"O" RING,8MM 21 670B1508 1
BOLT,OIL FILTER 22 92001-1074 1
BOLT,OIL FILTER 22 92001-1074 1
"O" RING,22MM 23 670B2022 1
COVER,OIL FILTER 24 16146-001 1
"0" RING,105MM 25 671B25105 1
SPRING,OIL FILTER 26 92081-108 1
WASHER,PLAIN 27 92022-220 1
ELEMENT,OIL FILTER 28 16099-002 1
O RING 29 92055-048 2
BOLT 30 92003-095 1
BALL STEEL 3/8' 31 600A1200 1
SPRING, CHECK VALVE 32 92081-109 1
WASHER,LOCK 33 92024-048 1
"O" RING,91MM 34 92055-052 1
GASKET,OIL PUMP 35 16145-002 1
SCREW PAN HEAD 6X16 36 220B0616 4
SCREW PAN HEAD 6X26 37 220B0628 2
