Parts Diagrams |

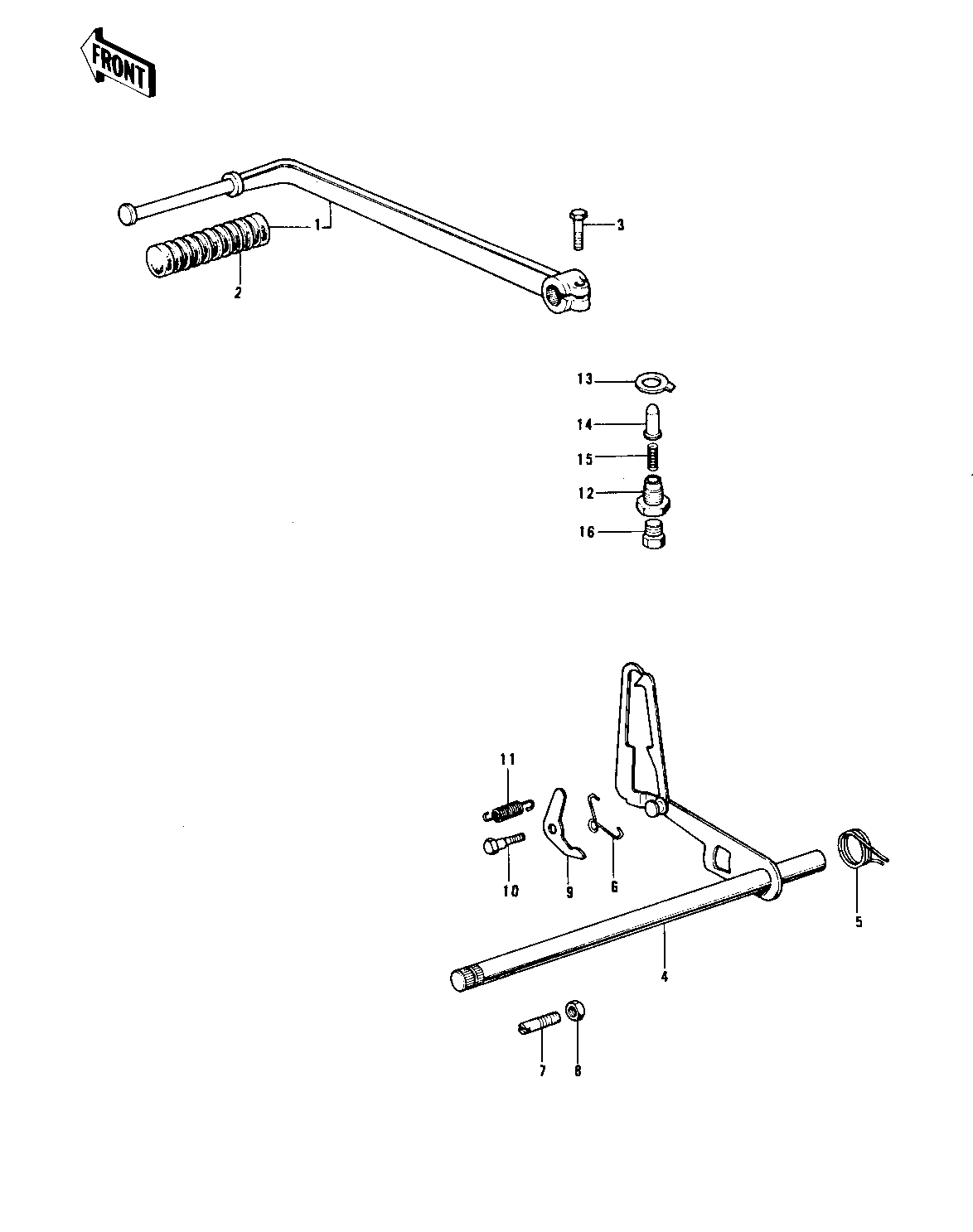

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL ASSY,GEAR CHANG | 1 | 13242-006 | 1 | ||
| RUBBER CHANGE PEDAL | 2 | 13157-004 | 1 | ||
| BOLT,HEX HEAD,6X20 | 3 | 110N0620 | 1 | ||
| LEVER ASSY GEAR CHNG | 4 | 13161-029 | 1 | ||
| SPRING,CHG PEDL RTRN | 5 | 92083-028 | 1 | ||
| SPRING,CHANGE LEVER | 6 | 92083-018 | 1 | ||
| PIN CHANGE PEDAL SPRG | 7 | 92043-057 | 1 | ||
| NUT 8MM | 8 | 312B0800 | 1 | ||
| LEVER,GEAR CHNG DRUM | 9 | 13168-024 | 1 | ||
| BOLT,CHANGE DRUM LEVE | 10 | 92100-1450 | 1 | ||
| SPRING CHNG DRUM LEV | 11 | 92081-051 | 1 | ||
| BOLT,CHG DRUM POSITN | 12 | 92001-112 | 1 | ||
| WASHER,LOCK | 13 | 92024-047 | 1 | ||
| PIN | 14 | 92043-085 | 1 | ||
| SPRING, CHANGE DRUM POSITIONING | 15 | 92081-106 | 1 | ||
| BOLT | 16 | 92001-119 | 1 |
| PEDAL ASSY,GEAR CHANG | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER CHANGE PEDAL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X20 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY GEAR CHNG | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHG PEDL RTRN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHANGE LEVER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN CHANGE PEDAL SPRG | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,GEAR CHNG DRUM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CHANGE DRUM LEVE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING CHNG DRUM LEV | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CHG DRUM POSITN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING, CHANGE DRUM POSITIONING | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
