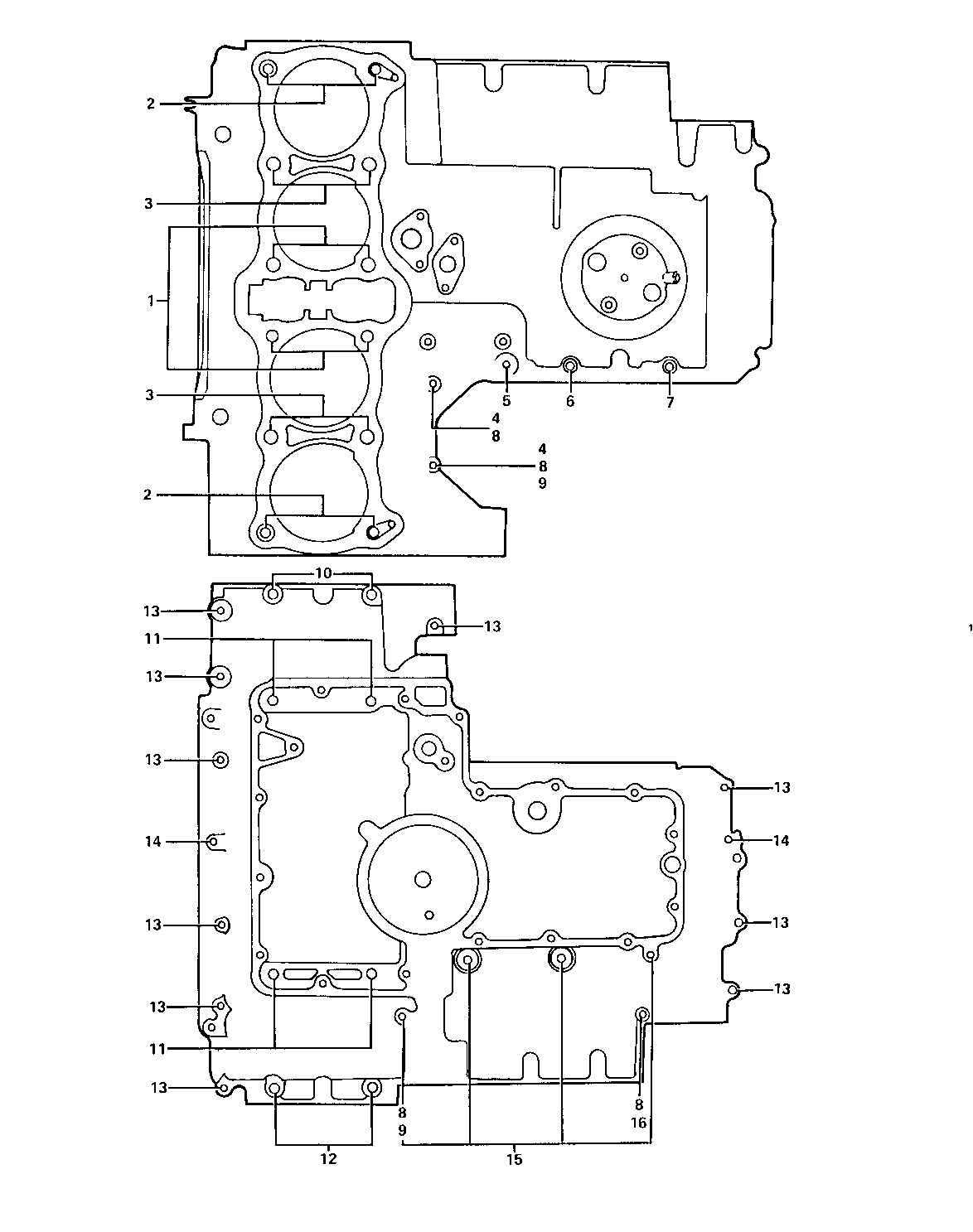

1976 KZ900-A4 - CRANKCASE BOLT & STUD PATTERN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STUD,10X190 | 1 | 92004-1004 | 4 | ||
| STUD,10X133 | 1 | 92004-1004 | 4 | ||
| STUD,10X181 | 2 | 92004-1003 | 4 | ||
| STUD,10X181 | 2 | 92004-1003 | 4 | ||
| STUD,10X156 | 3 | 92004-1002 | 4 | ||
| STUD,10X156 | 3 | 92004-1002 | 4 | ||
| BOLT,HEX HEAD,6X41 | 4 | 92003-109 | 2 | ||
| BOLT,HEX HEAD,6X54 | 5 | 92003-110 | 1 | ||
| BOLT,HEX HEAD,6X99 | 6 | 92003-111 | 1 | ||
| BOLT,HEX HEAD,6X116 | 7 | 92003-113 | 1 | ||
| CLAMP,WIRING HARNESS | 8 | 21126-007 | 2 | ||
| WASHER PLAIN 6MM | 9 | 410B0600 | 1 | ||
| BOLT-FLANGED,8X95 | 10 | 92003-106 | 2 | ||
| BOLT,HEX HEAD,8X72 | 11 | 92003-107 | 4 | ||
| BOLT,HEX HEAD,8X81 | 12 | 92003-108 | 2 | ||
| BOLT,HEX HEAD,6X41 | 13 | 92003-109 | 10 | ||
| BOLT,HEX HEAD,6X54 | 14 | 92003-110 | 2 | ||
| BOLT-FLANGED,6X94 | 15 | 92003-112 | 4 | ||
| BOLT-FLANGED,6X72 | 16 | 92003-114 | 1 |
| STUD,10X190 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X133 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X181 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X181 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X156 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STUD,10X156 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X41 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X54 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X99 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X116 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X95 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X72 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X81 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X41 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X54 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X94 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X72 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
