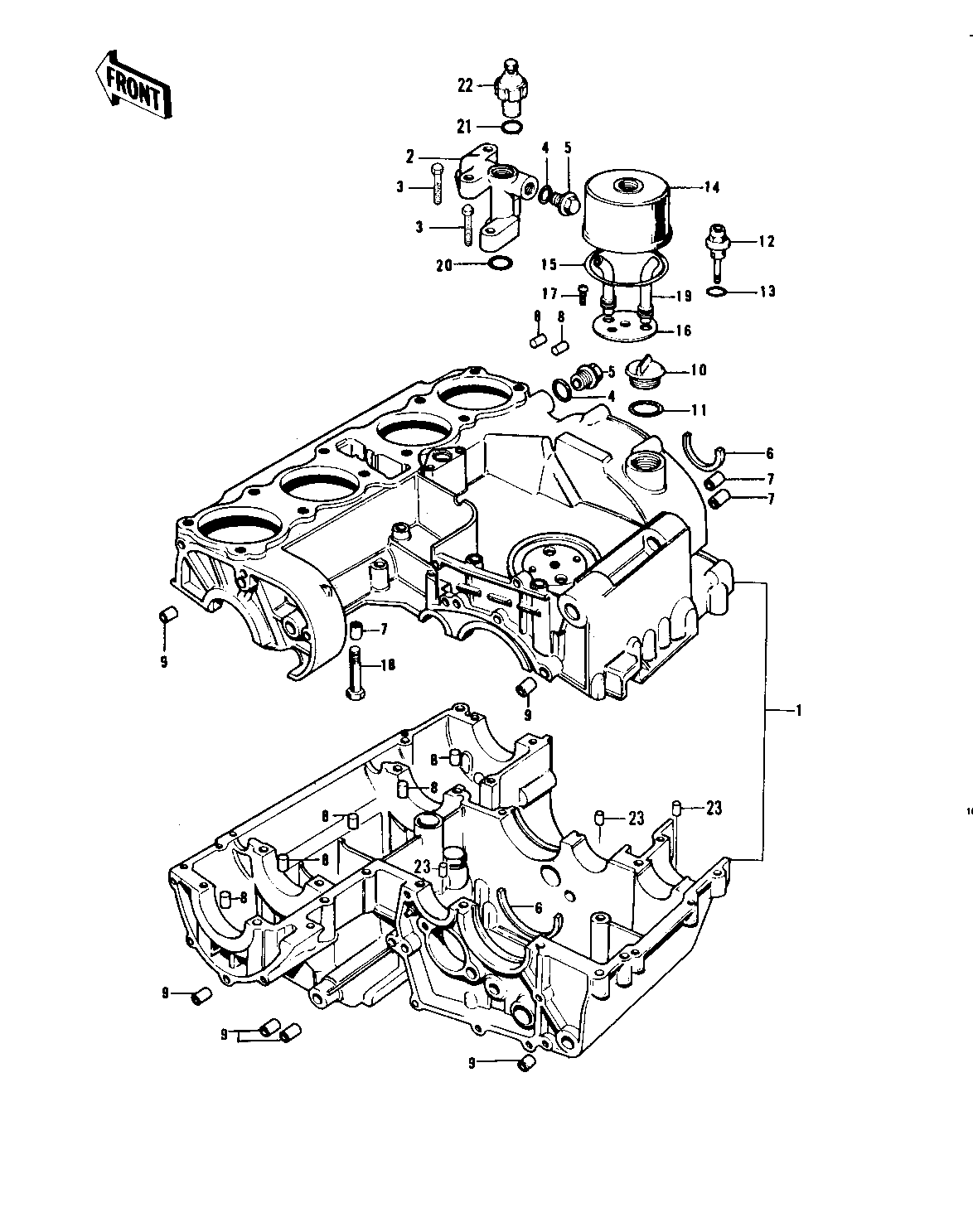

1976 KZ900-A4 - CRANKCASE/BREATHER COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKCASE SET,BUFF FINISH | 1 | 14001-104-2J | 1 | ||
| CRANKCASE SET,BUFF FINISH | 1 | 14001-104-2J | 1 | ||
| CRANKCASE SET | 1 | 14001-5025 | 1 | ||
| PIPE | 2 | 16109-003 | 1 | ||
| BOLT,HEX HEAD,6X35 | 3 | 92001-153 | 4 | ||
| "O" RING,15MM | 4 | 670B2015 | 2 | ||
| PLUG | 5 | 92066-021 | 1 | ||
| RING,BEARNG SET, 62MM | 6 | 14013-1004 | 2 | ||
| PIN,DOWEL,10X14 | 7 | 552A1014 | 4 | ||
| PIN,DOWEL,6X14 | 8 | 610A0614 | 8 | ||
| PIN,DOWEL,6X14 | 9 | 92042-007 | 6 | ||
| PLUG,OIL FILLER | 10 | 16115-013 | 1 | ||
| "0" RING, | 11 | 92055-049 | 1 | ||
| BOLT,BREATHER FITTING | 12 | 92003-098 | 1 | ||
| "0" RING,16MM | 13 | 670B2016 | 1 | ||
| BODY,BREATHER | 14 | 14070-003 | 1 | ||
| "O" RING,BREATHER BODY | 15 | 92055-052 | 1 | ||
| PLATE,BREATHER | 16 | 14068-007 | 1 | ||
| SCREW PAN HEAD 6X18 | 17 | 220B0618 | 2 | ||
| BOLT,HEX HEAD,8X72 | 18 | 92003-107 | 4 | ||
| TUBE | 19 | 92059-118 | 2 | ||
| "0" RING,18MM | 20 | 670B2018 | 2 | ||
| "O" RING | 21 | 92055-055 | 1 | ||
| SWITCH,OIL PRESSURE | 22 | 27010-1013 | 1 | ||
| SWITCH,OIL PRESSURE | 22 | 27010-1013 | 1 | ||
| PIN DOWEL 6MM | 23 | 92042-016 | 3 | NOT USED WITH 14001-052-2J |
