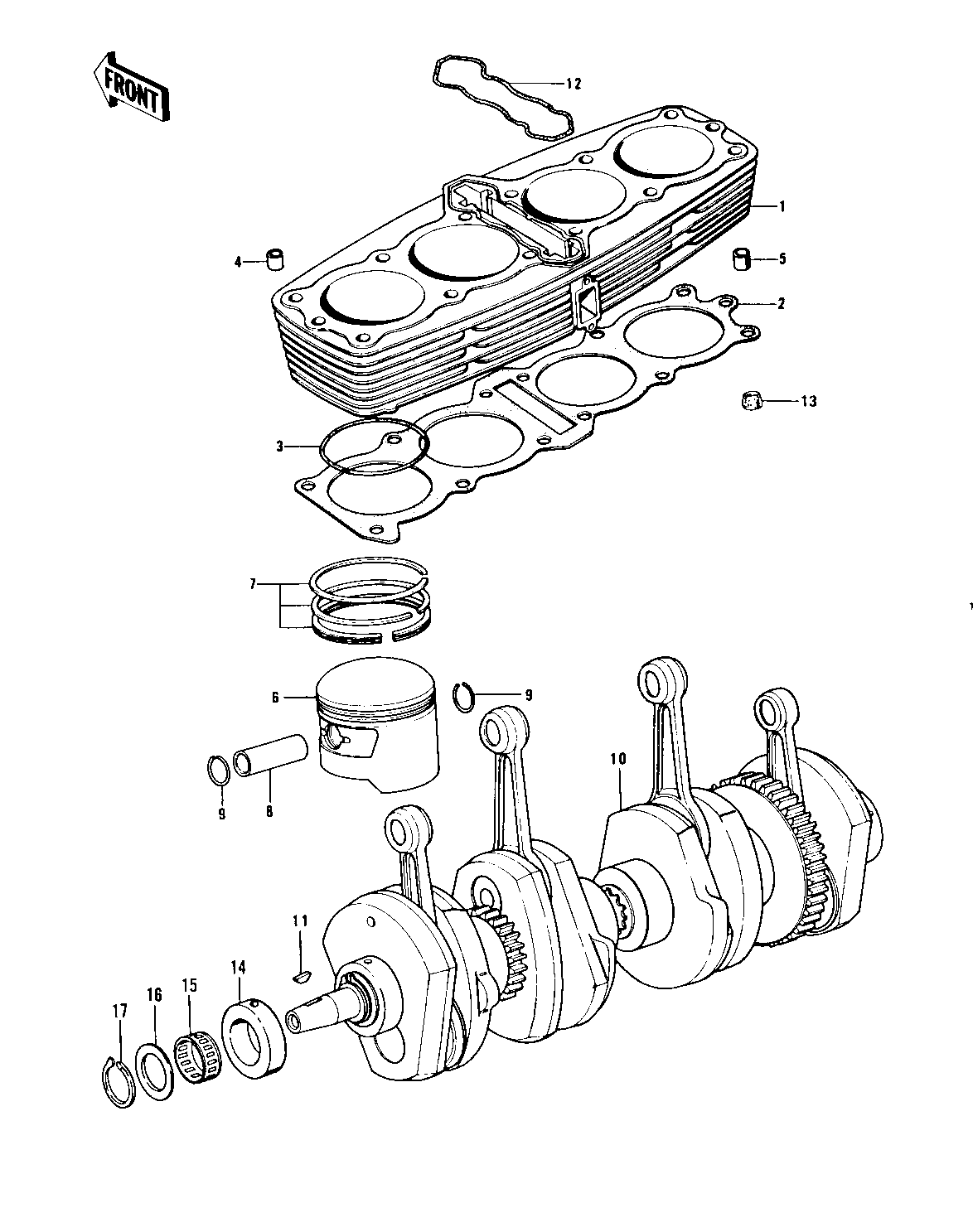

1976 KZ900-A4 - CYLINDER/PISTONS/CRANKSHAFT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER,BARREL | 1 | 11005-136-2H | 1 | ||
| GASKET,CYLINDER BASE | 2 | 11009-030 | 1 | ||
| "O" RING,73MM | 3 | 92055-054 | 4 | ||
| PIN,DOWEL,10X14 | 4 | 552A1014 | 2 | ||
| PIN,DOWEL | 5 | 92042-028 | 2 | ||
| PISTON,STD | 6 | 13001-054 | 4 | ||
| PISTON,0.50MM 0.S | 6 | 13029-058 | (4 | ||
| PISTON,1.00MM 0.S | 6 | 13027-056 | (4 | ||
| RING SET,STD | 7 | 13008-038 | 4 | ||
| RING SET,0.05MM 0.S | 7 | 13025-046 | (4 | ||
| RING SET,1.00MM 0.S | 7 | 13024-046 | (4 | ||
| PIN-PISTON | 8 | 13002-022 | 4 | ||
| CIRCLIP,PISTON PIN | 9 | 92036-021 | 8 | ||
| CRANKSAFT ASSY | 10 | 13031-043 | 1 | ||
| WOODRUFF KEY | 11 | 92038-001 | 1 | ||
| GASKET,CYLINDER RUBER | 12 | 92055-062 | 1 | ||
| PLUG,RUBBER CYLINDER | 13 | 92074-030 | 8 | ||
| BUSHING | 14 | 92028-121 | 2 | ||
| BEARING,NEEDLE,PK304016.8X1 | 15 | 92046-063 | 2 | ||
| WASHER,THRUST | 16 | 92026-079 | 2 | ||
| CIRCLIP,30MM | 17 | 480J3000 | 2 |
