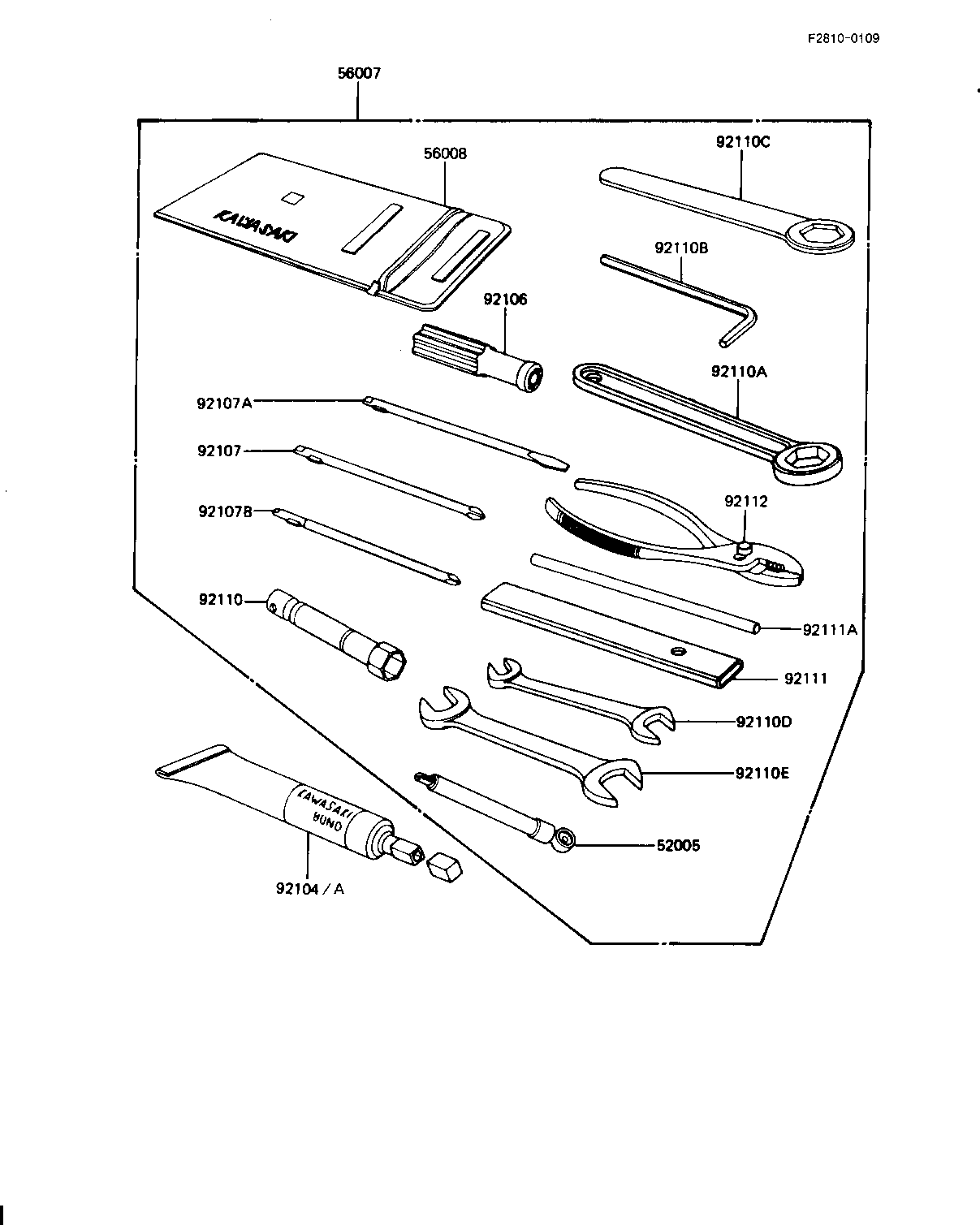

1983 KZ1000-J3 - OWNER TOOLS (KZ1000-J1/J2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GAUGE,AIR | 52005 | 52005-4002 | 1 | ||
| 56007-1121 (Canada) | 56007 | 56007-1139 | 1 | ||
| BAG,TOOL | 56008 | 56008-006 | 1 | ||
| LIQUID GASKET | 92104 | 92104-002 | 1 | ||
| GASKET-LIQUID,BLACK | 92104A | 92104-1003 | 1 | ||
| GRIP,SCREW DRIVER | 92106 | 92106-1001 | 1 | ||
| TOOL-DRIVER | 92107 | 92107-1052 | 1 | ||
| 92107-1052 (Canada) | 92107A | 92107-007 | 1 | ||
| 92107-1002 (Canada) | 92107B | 92107-008 | 1 | ||
| WRENCH,SPARK PLUG | 92110 | 92108-008 | 1 | ||
| TOOL-WRENCH,BOX END,2 | 92110A | 92110-1147 | 1 | ||
| WRENCH,ALLEN | 92110B | 92110-1015 | 1 | ||
| TOOL-WRENCH,BOX END,2 | 92110C | 92110-1148 | 1 | ||
| TOOL-WRENCH,OPEN END | 92110D | 92110-1038 | 1 | ||
| TOOL-WRENCH,OPEN END, | 92110E | 92110-1153 | 1 | ||
| TOOL-WRENCH,OPEN END, | 92111 | 92111-004 | 1 | ||
| BAR,SPARK PLUG WRENCH | 92111A | 92111-005 | 1 | ||
| PLIERS,160MM | 92112 | 92112-003 | 1 |
| GAUGE,AIR | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 56007-1121 (Canada) | |
| REF # | 56007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAG,TOOL | |
| REF # | 56008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LIQUID GASKET | |
| REF # | 92104 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-LIQUID,BLACK | |
| REF # | 92104A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,SCREW DRIVER | |
| REF # | 92106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-DRIVER | |
| REF # | 92107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92107-1052 (Canada) | |
| REF # | 92107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 92107-1002 (Canada) | |
| REF # | 92107B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,SPARK PLUG | |
| REF # | 92110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-WRENCH,BOX END,2 | |
| REF # | 92110A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,ALLEN | |
| REF # | 92110B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-WRENCH,BOX END,2 | |
| REF # | 92110C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-WRENCH,OPEN END | |
| REF # | 92110D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-WRENCH,OPEN END, | |
| REF # | 92110E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TOOL-WRENCH,OPEN END, | |
| REF # | 92111 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAR,SPARK PLUG WRENCH | |
| REF # | 92111A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLIERS,160MM | |
| REF # | 92112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
