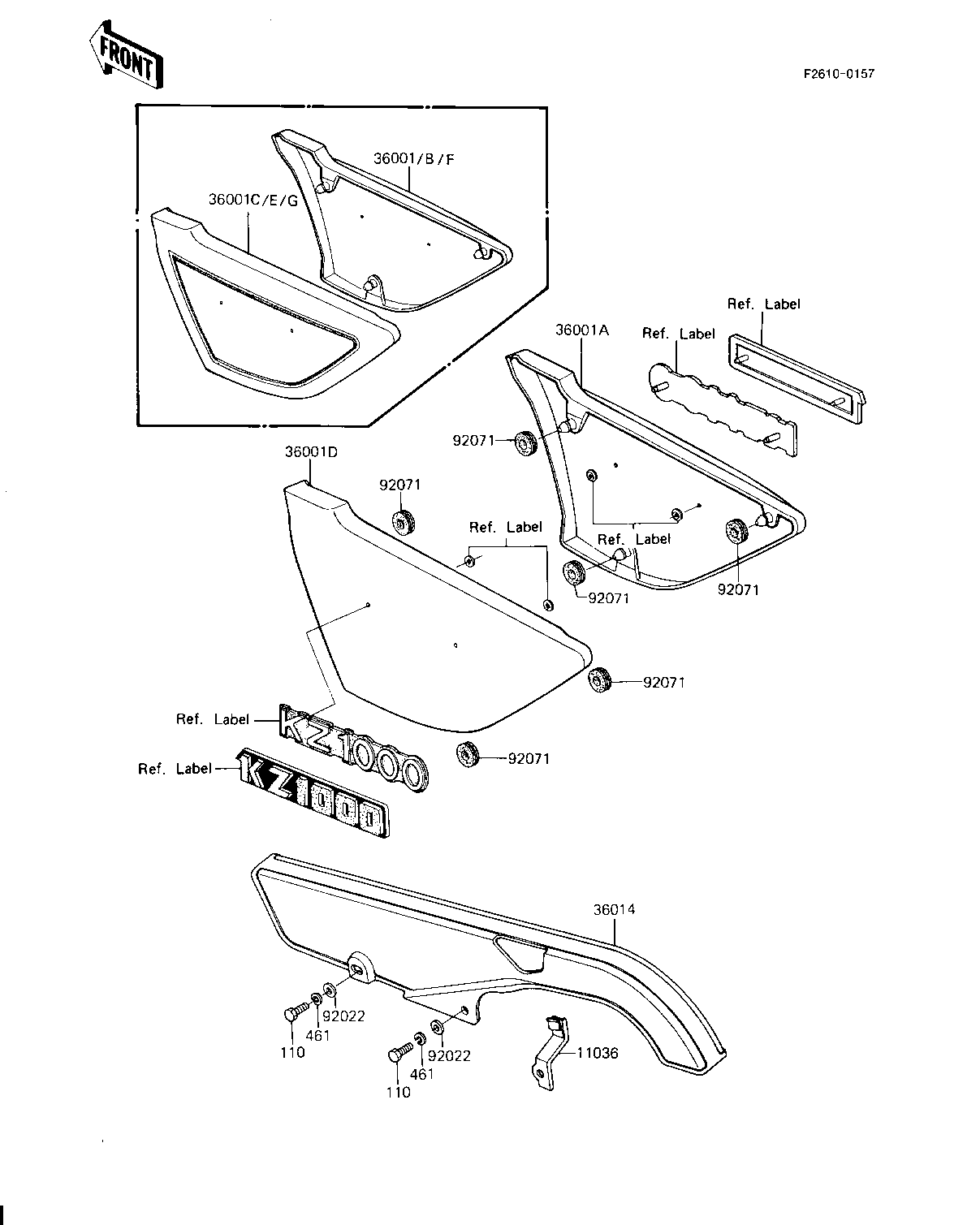

1983 KZ1000-J3 - SIDE COVERS/CHAIN COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-A,CHAIN CASE | 11036 | 11036-1615 | 1 | ||
| COVER-SIDE,RH,EBONY (Canada) | 36001A | 36001-1108-H8 | 1 | ||
| COVER-SIDE,LH,EBONY (Canada) | 36001D | 36001-1109-H8 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1061 | 1 | ||
| WASHER 6.5X20X1.6T | 92022 | 92022-125 | 2 | ||
| GROMMET | 92071 | 92071-056 | 6 | ||
| UNAVAILABLE IN PRICE BOOK | 110 | 11080616 | 2 | ||
| UNAVAILABLE IN PRICE BOOK | 461 | 46150600 | 2 |
| BRACKET-A,CHAIN CASE | |
| REF # | 11036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,EBONY (Canada) | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,EBONY (Canada) | |
| REF # | 36001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
