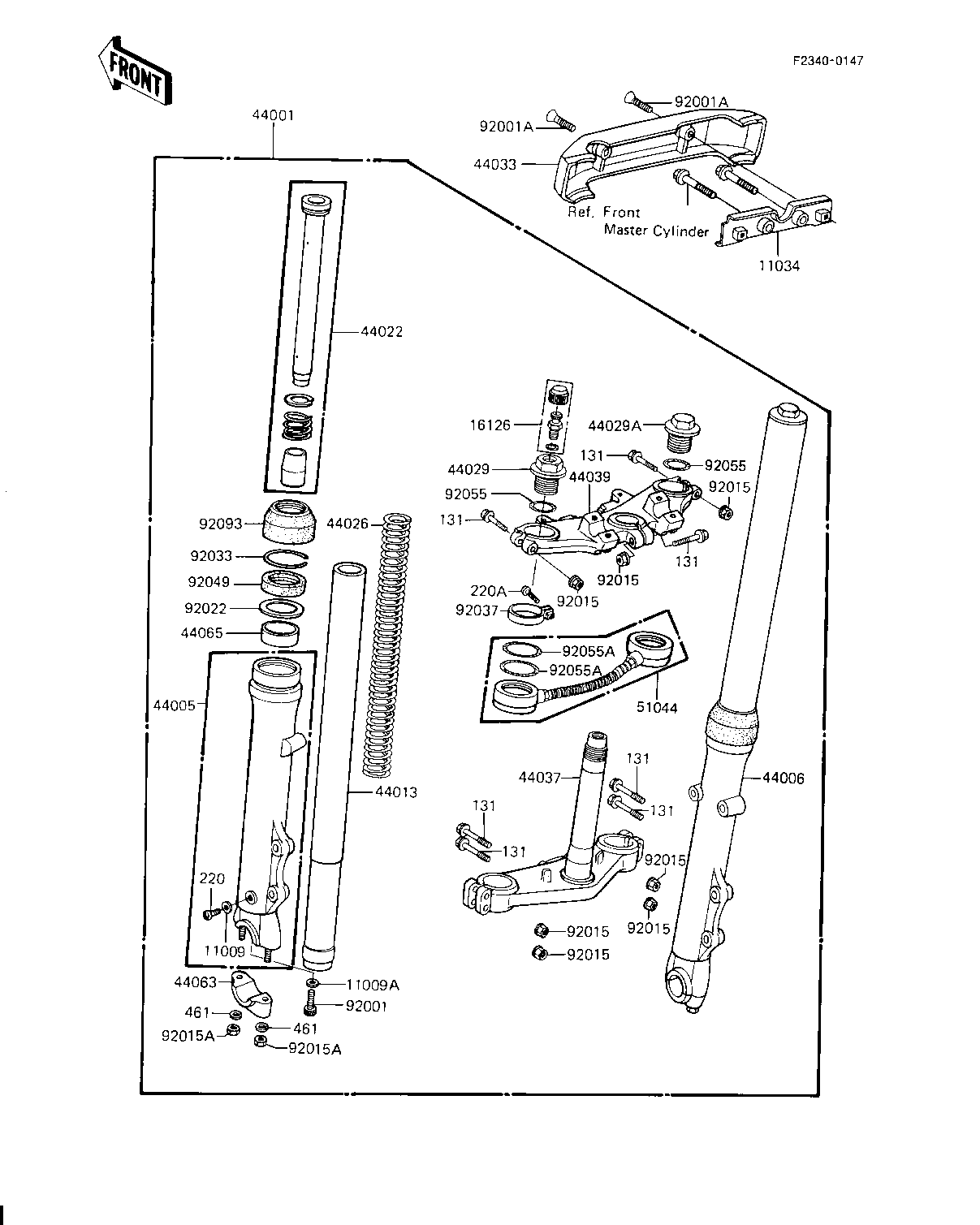

1983 KZ1000-J3 - FRONT FORK (KZ1000-J3) (CANADA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET FORK DRAIN PLG | 11009 | 44045-002 | 2 | ||
| GASKET,FORK CYLINDER | 11009A | 44045-057 | 2 | ||
| BRACKET,FORK COVER | 11034 | 11034-1842 | 1 | ||
| VALVE AIR | 16126 | 16126-1052 | 1 | ||
| FORK-FRONT (Canada) | 44001 | 44001-1409 | 1 | ||
| TUBE,LH,FORK OUTER | 44005 | 44005-1094 | 1 | ||
| TUBE,RH,FORK OUTER | 44006 | 44006-1094 | 1 | ||
| PIPE-FORK INNER (Canada) | 44013 | 44013-1115 | 2 | ||
| CYLINDER-FORK | 44022 | 44022-1044 | 2 | ||
| SPRING-FRONT FORK (Canada) | 44026 | 44026-1193 | 2 | ||
| SEAT-FORK SPRING,LH | 44029 | 44029-1044 | 1 | ||
| SEAT-FORK SPRING,RH | 44029A | 44029-1045 | 1 | ||
| COVER,FORK | 44033 | 44033-1053 | 1 | ||
| HOLDER-FORK UNDER | 44037 | 44037-1072 | 1 | ||
| HOLDER-FORK UPPER | 44039 | 44039-1070 | 1 | ||
| HOLDER-FRONT AXLE | 44063 | 44063-1006 | 2 | ||
| BUSHING-FRONT FORK,OU | 44065 | 44065-1091 | 2 | ||
| TUBE-ASSY,AIR,FORK (Canada) | 51044 | 51044-1028 | 1 | ||
| BOLT-FORK CYLINDER | 92001 | 44041-040 | 2 | ||
| SCREW-CSK-RD-CROS | 92001A | 222C0518 | 2 | ||
| NUT-8MM | 92015 | 92015-1022 | 7 | ||
| NUT,LOCK,8MM | 92015A | 92015-1124 | 4 | ||
| WASHER,FORK OUT PIPE | 92022 | 92022-1262 | 2 | ||
| SNAP RING,FORK OUTER | 92033 | 92033-1047 | 2 | ||
| SEAL-OIL,FORK OUTER T | 92049 | 92049-1295 | 2 | ||
| "0" RING,FORK TOP | 92055 | 92055-1051 | 2 | ||
| RING-O,ROD | 92055A | 92055-1369 | 4 | ||
| SEAL | 92093 | 92093-1051 | 2 | ||
| BOLT,FLANGED,8X55 | 131 | 130G0855 | 7 | ||
| SCREW PAN HEAD 4X8 | 220 | 220B0408 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 |
