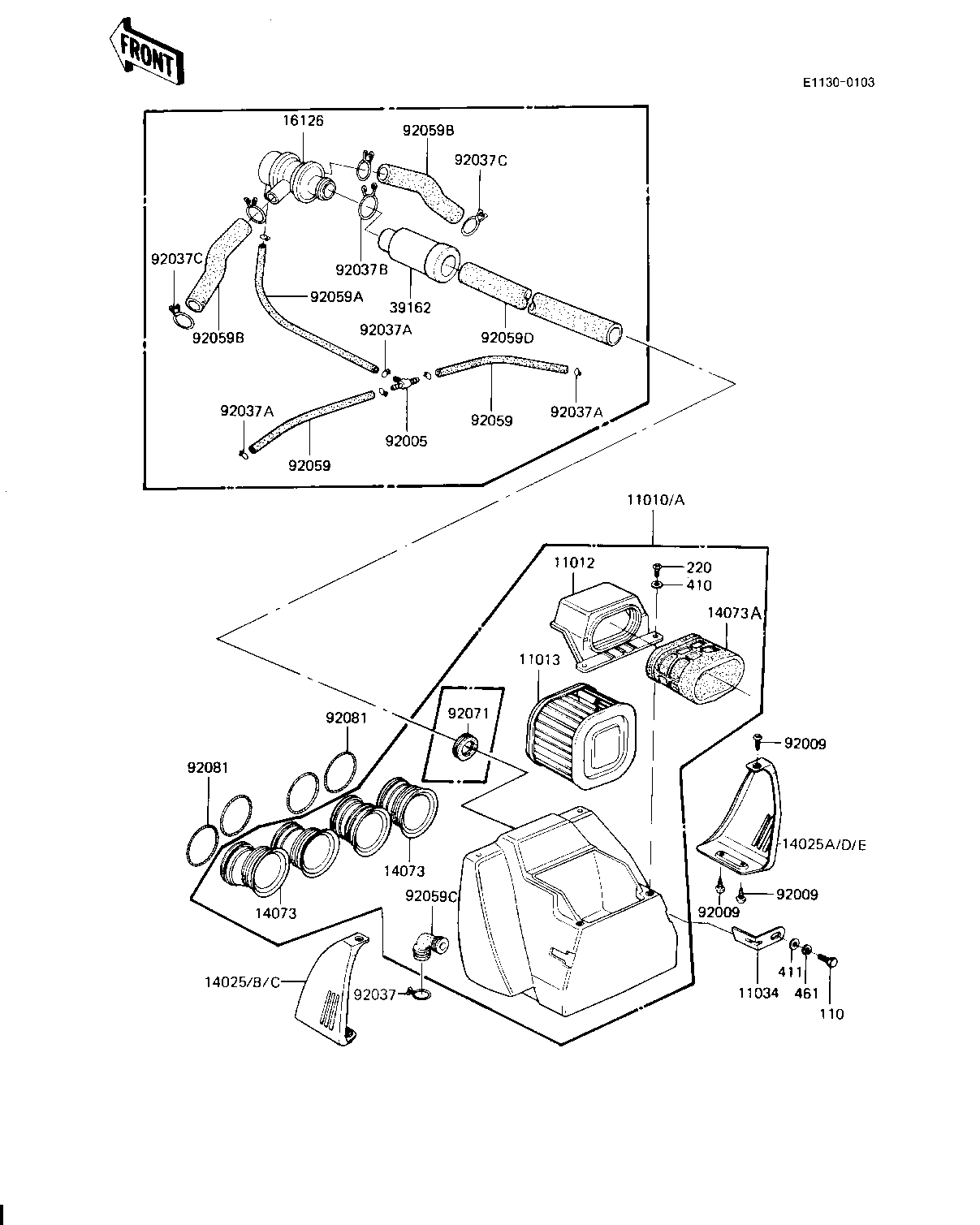

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER-ASSY-AIR (Canada) | 11010A | 11010-1112 | 1 | CN | |
| CAP,AIR FILTER | 11012 | 11012-1167 | 1 | ||
| ELEMENT,AIR CLNR | 11013 | 11013-1037 | 1 | ||
| BRACKET,AIR CLEANER | 11034 | 32070-038 | 2 | ||
| COVER,AIR FILTER,LH,B | 14025B | 14025-1507 | 1 | ||
| COVER,AIR FILTER,RH,B | 14025D | 14025-1508 | 1 | ||
| DUCT,AIR FILTER,OUTLE | 14073 | 14073-1048 | 4 | ||
| DUCT,AIR FILTER,INTAK | 14073A | 14073-1049 | 1 | ||
| SCREW,TAPPING,5X12,BL | 92009 | 92009-1138 | 6 | ||
| CLAMP BREATHER PIPE | 92037 | 92037-028 | 1 | ||
| TUBE,AIR FILTER | 92059C | 92059-1156 | 1 | ||
| SPRING,COIL,BLACK | 92081 | 92081-1457 | 4 | ||
| BOLT-UPSET,6X12 | 110 | 112G0612 | 2 | ||
| SCREW PAN HEAD 6X12 | 220 | 220B0612 | 2 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 2 | ||
| WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 2 |
| FILTER-ASSY-AIR (Canada) | |
| REF # | 11010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,AIR CLEANER | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,LH,B | |
| REF # | 14025B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,RH,B | |
| REF # | 14025D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER,OUTLE | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER,INTAK | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X12,BL | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP BREATHER PIPE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,AIR FILTER | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL,BLACK | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
