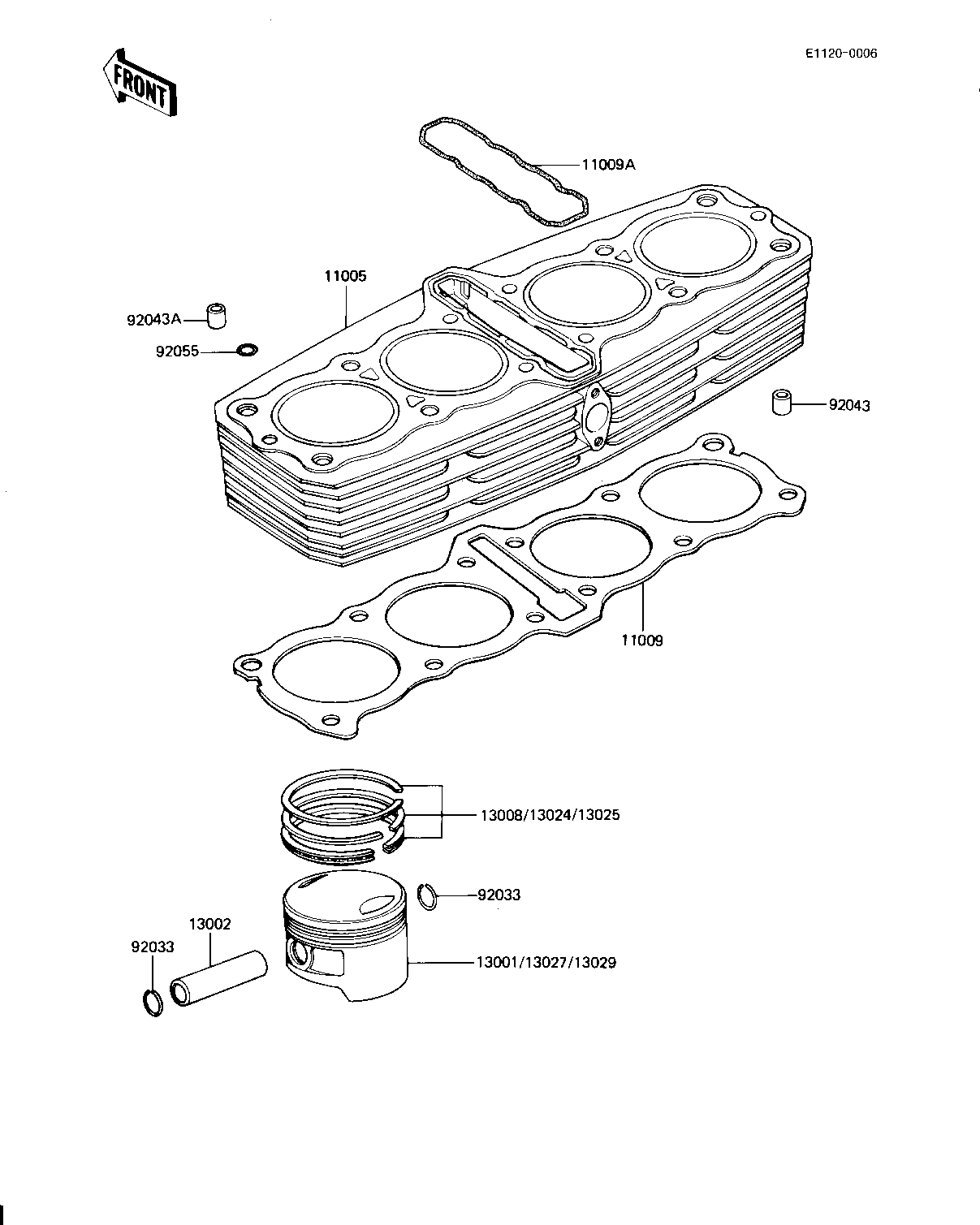

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE,BLACK | 11005 | 11005-1323 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11060-1067 | 1 | ||
| GASKET,CYLINDER | 11009A | 11009-1208 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-1119 | 4 | ||
| PIN-PISTON | 13002 | 13002-1013 | 4 | ||
| RING-SET-PISTON | 13008 | 13008-5035 | 4 | ||
| RING SET,1.10 O/S | 13024 | 13024-5018 | 4 | ||
| RING SET,050 0/S | 13025 | 13025-5018 | 4 | ||
| PISTON-ENGINE LL,O/S | 13027 | 13027-1056 | 4 | ||
| PISTON-ENGINE L,O/S | 13029 | 13029-1058 | 4 | ||
| RING-SNAP | 92033 | 92033-1054 | 8 | ||
| PIN,11X14X12.3 | 92043 | 92043-1266 | 2 | ||
| PIN,DOWEL,10X8.2X14 | 92043A | 92043-1037 | 2 | ||
| RING-0,0D=18.5MM | 92055 | 92055-1148 | 4 |
