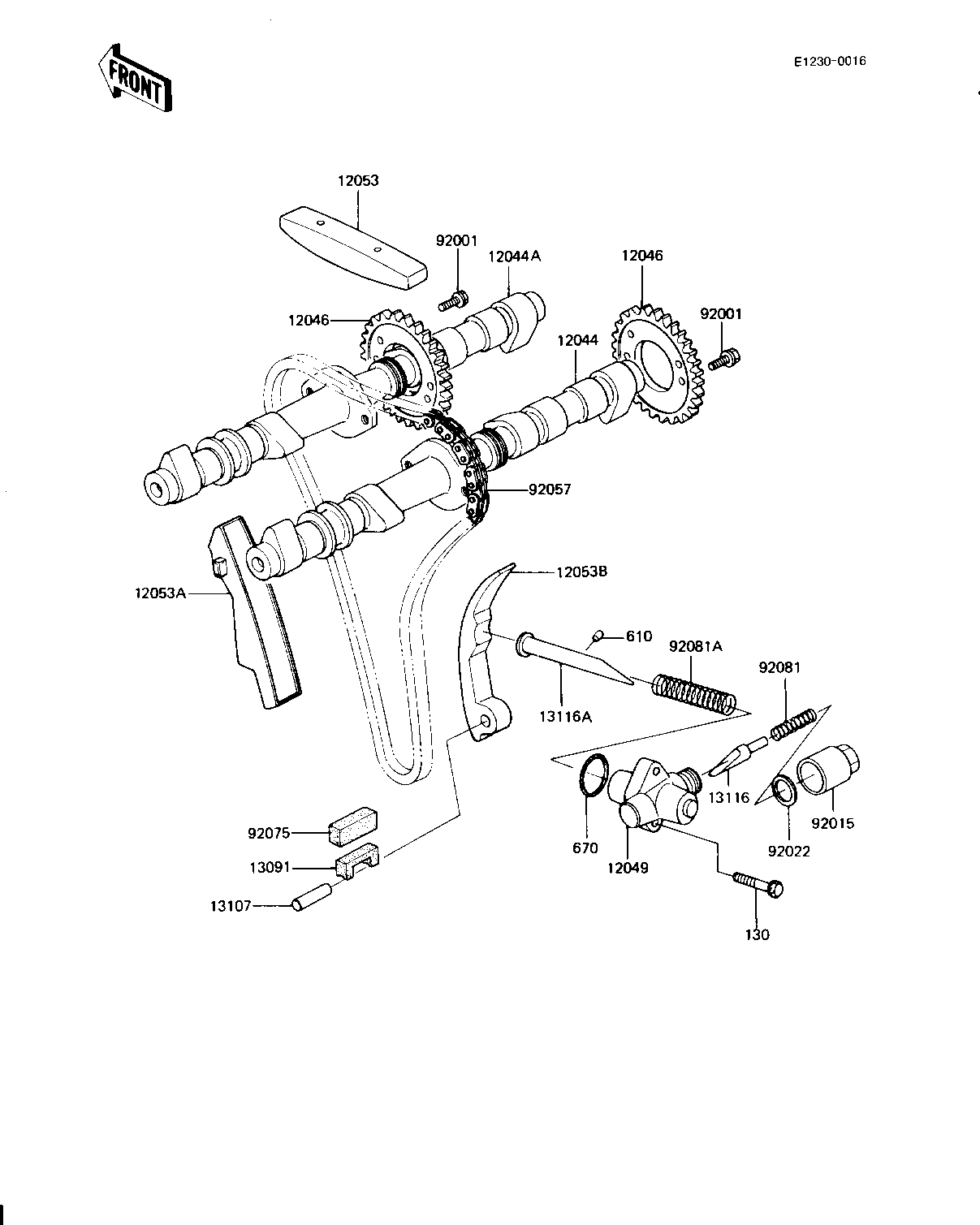

1983 KZ1000-J3 - CAMSHAFTS/CHAIN/TENSIONER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAMSHAFT-VALVE,INLET | 12044 | 12044-1031 | 1 | ||
| CAMSHAFT-VALVE,EXHAUS | 12044A | 12044-1036 | 1 | ||
| SPROCKET,CAMSHAFT EXH | 12046 | 12046-1025 | 2 | ||
| TENSIONER,CAM CHAIN | 12049 | 12049-1009 | 1 | ||
| GUIDE-CHAIN,CAM,FR | 12053A | 12053-1048 | 1 | ||
| GUIDE-CHAIN,CAM,RR | 12053B | 12053-1049 | 1 | ||
| HOLDER,CAM CHAIN GUID | 13091 | 13091-1084 | 1 | ||
| SHAFT,8X28 | 13107 | 13107-1020 | 1 | ||
| ROD,PUSH,CAM CHAIN | 13116 | 13116-1012 | 1 | ||
| ROD-PUSH,TENSIONER | 13116A | 13116-1038 | 1 | ||
| BOLT,SPROCKET FITTING | 92001 | 92003-208 | 4 | ||
| CAP,TENSIONER,18M/M | 92015 | 92015-1100 | 1 | ||
| WASHER,18.3X24X1.4T | 92022 | 92022-1175 | 1 | ||
| CHAIN,CAMSHAFT,75-010 | 92057 | 92057-1052 | 1 | ||
| DAMPER | 92075 | 92075-1270 | 1 | ||
| SPRING,TENSIONER | 92081 | 92081-1302 | 1 | ||
| SPRING,TENSIONER | 92081A | 92081-1380 | 1 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
| PIN DOWEL 4X8 | 610 | 610A0408 | 1 | ||
| "O" RING,22M/M | 670 | 670E2022 | 1 |
| CAMSHAFT-VALVE,INLET | |
| REF # | 12044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT-VALVE,EXHAUS | |
| REF # | 12044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,CAMSHAFT EXH | |
| REF # | 12046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TENSIONER,CAM CHAIN | |
| REF # | 12049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,CAM,FR | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,CAM,RR | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CAM CHAIN GUID | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,8X28 | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,PUSH,CAM CHAIN | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH,TENSIONER | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SPROCKET FITTING | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CAP,TENSIONER,18M/M | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,18.3X24X1.4T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAMSHAFT,75-010 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENSIONER | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENSIONER | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,22M/M | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
