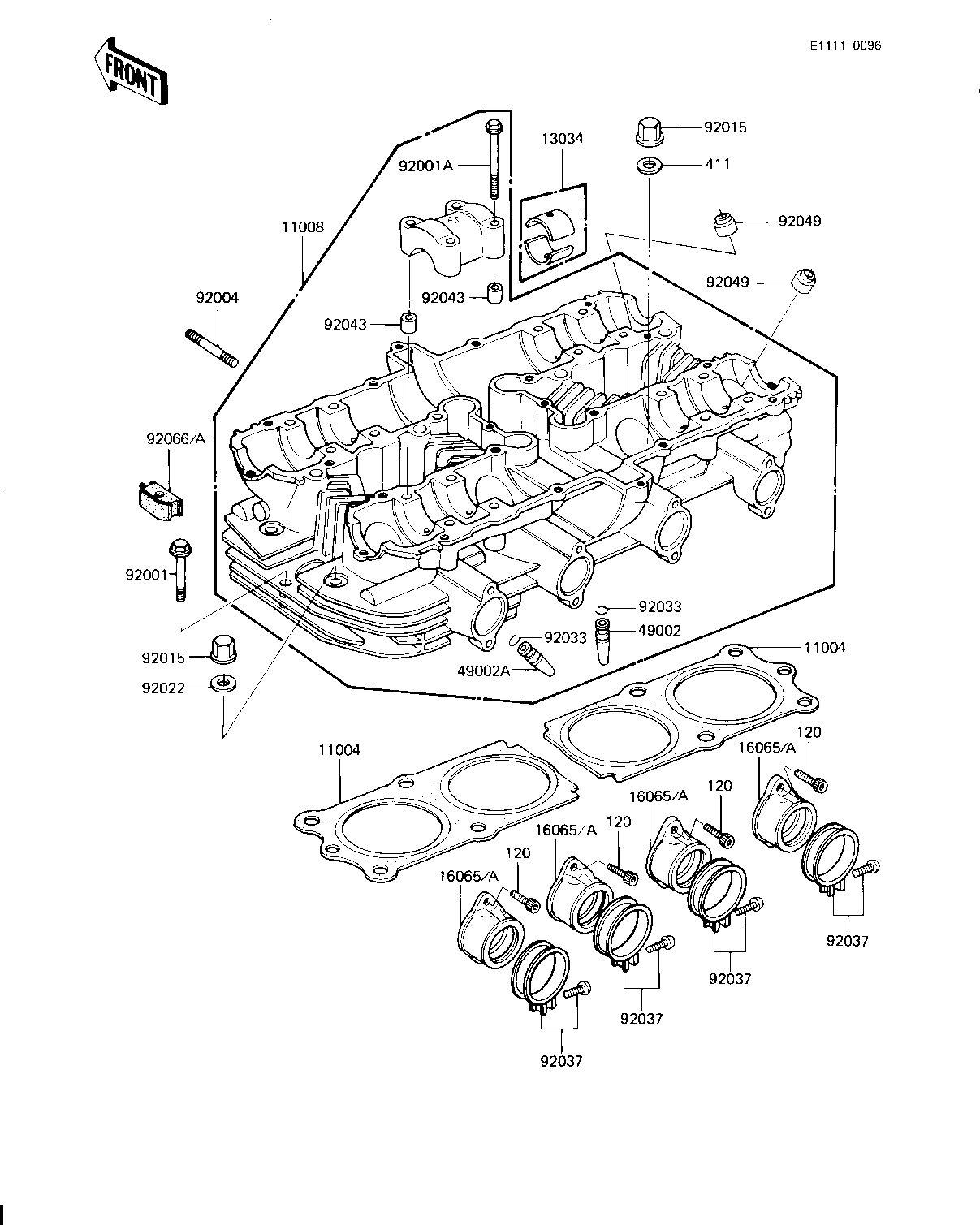

1983 KZ1000-J3 - CYLINDER HEAD

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1222 2
HEAD-COMP-CYLINDER,BL 11008 11008-1015 1
BUSHING,CAMSHAFT 13034 13034-030 16
HOLDER-CARBERTOR 16065A 16065-1131 4
GUIDE,INLET VALVE 49002 12013-009 4
GUIDE,EXHAUST VALVE 49002A 49002-1002 4
BOLT,HEX HEAD,6X45 92001 92003-092 2
BOLT,6X43 92001A 92002-1881 16
STUD,8X30 92004 92004-1069 8
NUT,CYLINDER HEAD 92015 92015-076 12
WASHER,10.5X22X1.6 92022 92022-1005 4
CIRCLIP-VALVE 92033 92036-023 8
CLAMP,ID=53,BLACK 92037 92037-1304 4
PIN-DOWEL 92043 92042-007 8
OIL SEAL,RV37129.5 92049 92049-016 8
PLUG,CYLINDER HEAD CO 92066A 92066-1104 4
BOLT-SOCKET,6X16,BLAC 120 120S0616 8
WASHER PLAIN 10MM 411 411B1000 8
