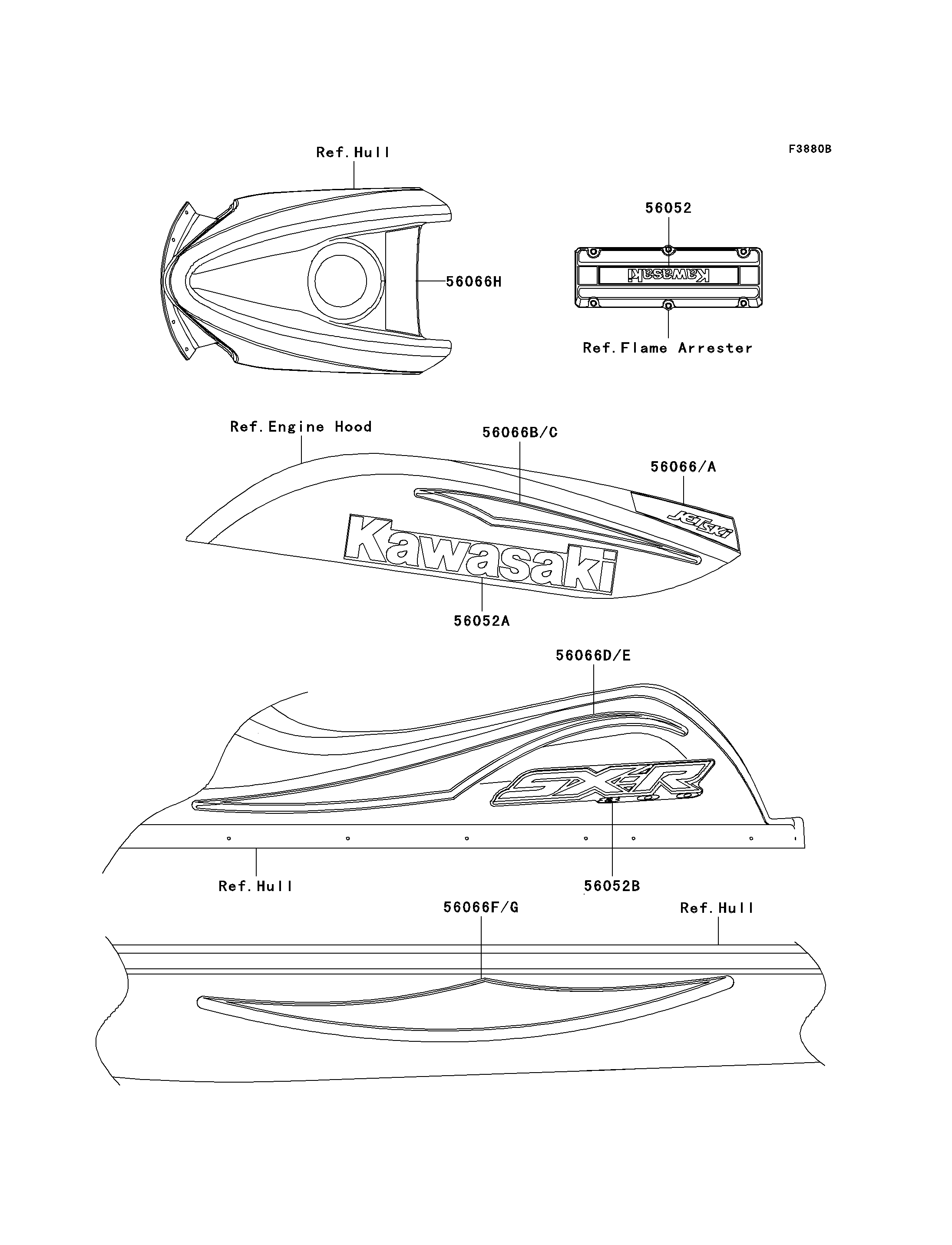

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-3807 | 1 | ||
| MARK,ENGINE HOOD,KAWASAKI | 56052A | 56052-3823 | 1 | ||
| MARK,DECK,SX-R 800 | 56052B | 56052-3825 | 2 | ||
| PATTERN,ENGINE HOOD,UPP,LH | 56066 | 56066-3794 | 1 | ||
| PATTERN,ENGINE HOOD,UPP,RH | 56066A | 56066-3795 | 1 | ||
| PATTERN,ENGINE HOOD,LWR,LH | 56066B | 56066-3802 | 1 | ||
| PATTERN,ENGINE HOOD,LWR,RH | 56066C | 56066-3803 | 1 | ||
| PATTERN,DECK,LH | 56066D | 56066-3804 | 1 | ||
| PATTERN,DECK,RH | 56066E | 56066-3805 | 1 | ||
| PATTERN,HULL,LH | 56066F | 56066-3806 | 1 | ||
| PATTERN,HULL,RH | 56066G | 56066-3807 | 1 | ||
| PATTERN,NOSE COVER | 56066H | 56066-3808 | 1 |
