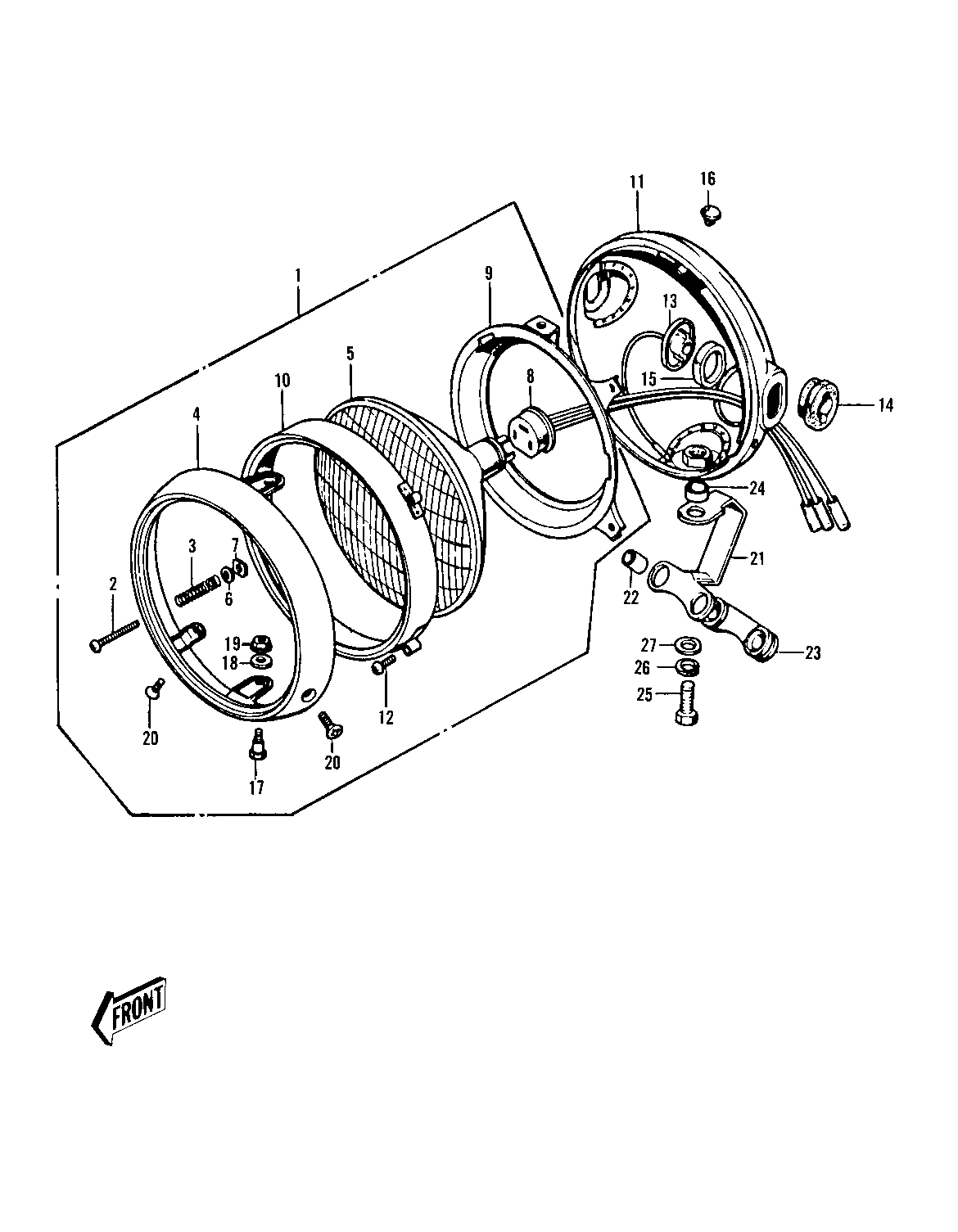

1974 Z1 - HEADLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT,HEAD 1 23003-017
SCREW FORCUS ADJUST 2 23019-021
SPRING FOCUS ADJUST 3 23014-005
RIM,HEAD LAMP 4 23006-038
SEALD BEAM UNIT 5 23007-041
WASHER 6 23021-004
NUT,4MM 7 23020-018
SOCKET ASSY,HEAD LAMP 8 23008-037
RING,HEAD LAMP MOUNT 9 23074-001
RING,HEAD LAMP MOUNT 10 23072-001
BODY-COMP-HEAD LAMP 11 23005-1015-21
SCREW PAN HEAD 3X12 12 220B0312A
COLLAR 13 23076-005
DAMPER RUBBER A 14 23066-001 Z1/A
DAMPER RUBBER 14 23066-015 Z1-B
DAMPER RUBBER 15 23066-005 Z1/A
DAMPER RUBBER 15 23066-016 Z1-B
PLUG REAR FENDER RUBB 16 92074-006
SCREW-PAN HEAD,5X12 17 23019-023
WASHER-PLAIN,5MM 18 23021-012
NUT,HEAD LAMP RIM FIT 19 23020-023
SCREW,PAN HEAD,5X14 20 23019-022
BRAKET,HEAD LAMP 21 23064-009 - F/NO. 55500
COLLAR,REAR FENDER 22 92027-162 Z1/A
COLLAR 22 92027-241 Z1-B
DAMPER RUBBER,HD LAMP 23 92075-127 - F/NO. 55500
COLLER,HEAD LAMP 24 92027-167 - F/NO. 55500
BOLT,HEX HEAD,8X18 25 110B0818 - F/NO. 55500
WASHER SPRING 8MM 26 461F0800 - F/NO. 55500
WASHER PLAIN 8MM 27 411B0800 - F/NO. 55500
