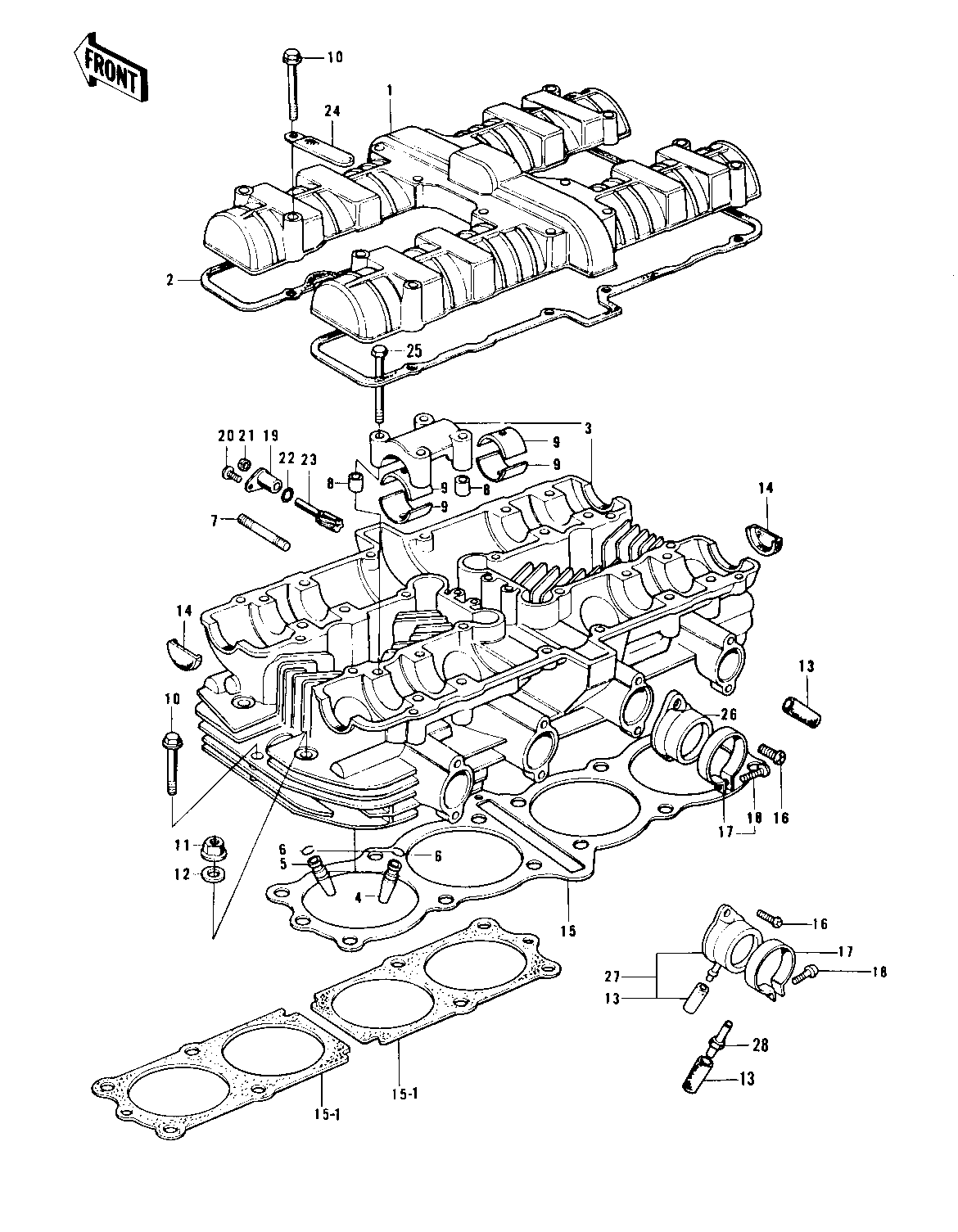

1974 Z1 - CYLINDER HEAD/COVER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,CYLINDER HEAD 1 14025-1119 Z1
COVER,CYLINDER HEAD 1 11022-012-2H Z1-A
GASKET,CYL HEAD COVER 2 11023-006
CYLINDER HEAD 3 11002-012 Z1
CYLINDER HEAD,BARREL 3 11002-016-2H Z1-A/B
GUIDE,INLET VALVE 4 12013-001
GUIDE,INLET VALVE 4 12013-001
GUIDE, EXHAUST VALVE 5 12013-002
GUIDE, EXHAUST VALVE 5 12013-002
CIRCLIP-VALVE 6 92036-023 Z1
CIRCLIP-VALVE 6 92036-023 Z1-A/B
STUD,6X46 7 92004-049
PIN-DOWEL 8 92042-007
BUSHING,CAMSHAFT 9 13034-030
BOLT,HEX HEAD,6X45 10 92003-092
NUT,CYLINDER HEAD 11 92015-076 Z1
NUT,CYLINDER HEAD 11 92015-076 Z1-A/B
WASHER,PLAIN,10MM 12 92022-215
RUBBER PLUG 13 92068-006
PLUG,CAM SHAFT 14 92066-017
GASKET,CYLINDER HEAD 15 11004-052 Z1
GASKET,CYLINDER HEAD 15-1 11004-066
SCREW PAN HEAD 6X18 16 220B0618
CLAMP,HOLDER 17 92037-077
SCREW PAN HEAD 5X20 18 220B0520
GUIDE,TACHOMETER GEAR 19 92087-5001
SCREW PAN HEAD 6X12 20 220B0612
OIL SEAL 21 92050-075
"O"RING 10MM 22 670B1510
GEAR,TACHOMETER,10T 23 13223-011
CLAMP,WIRING HARNESS 24 21126-008
BOLT,HEX HEAD,6X45 25 92003-092
HOLDER-R.H CARBRETOR 26 16065-028 Z1, --E/NO. 002200
HOLDER-R.H CARBRETOR 26 16065-028 Z1, E/NO. 002201--
HOLDER-R.H CARBRETOR 26 16065-028 Z1-A/B
HOLDER-R.H CARBRETOR 27 16065-028 Z1, --E/NO. 002200
HOLDER,CARBURETOR,L.H 27 16065-029 Z1, E/NO. 002201--
HOLDER,CARBURETOR,L.H 27 16065-029 Z1-A/B
NIPPLE 28 92005-005 Z1, --E/NO. 002200
