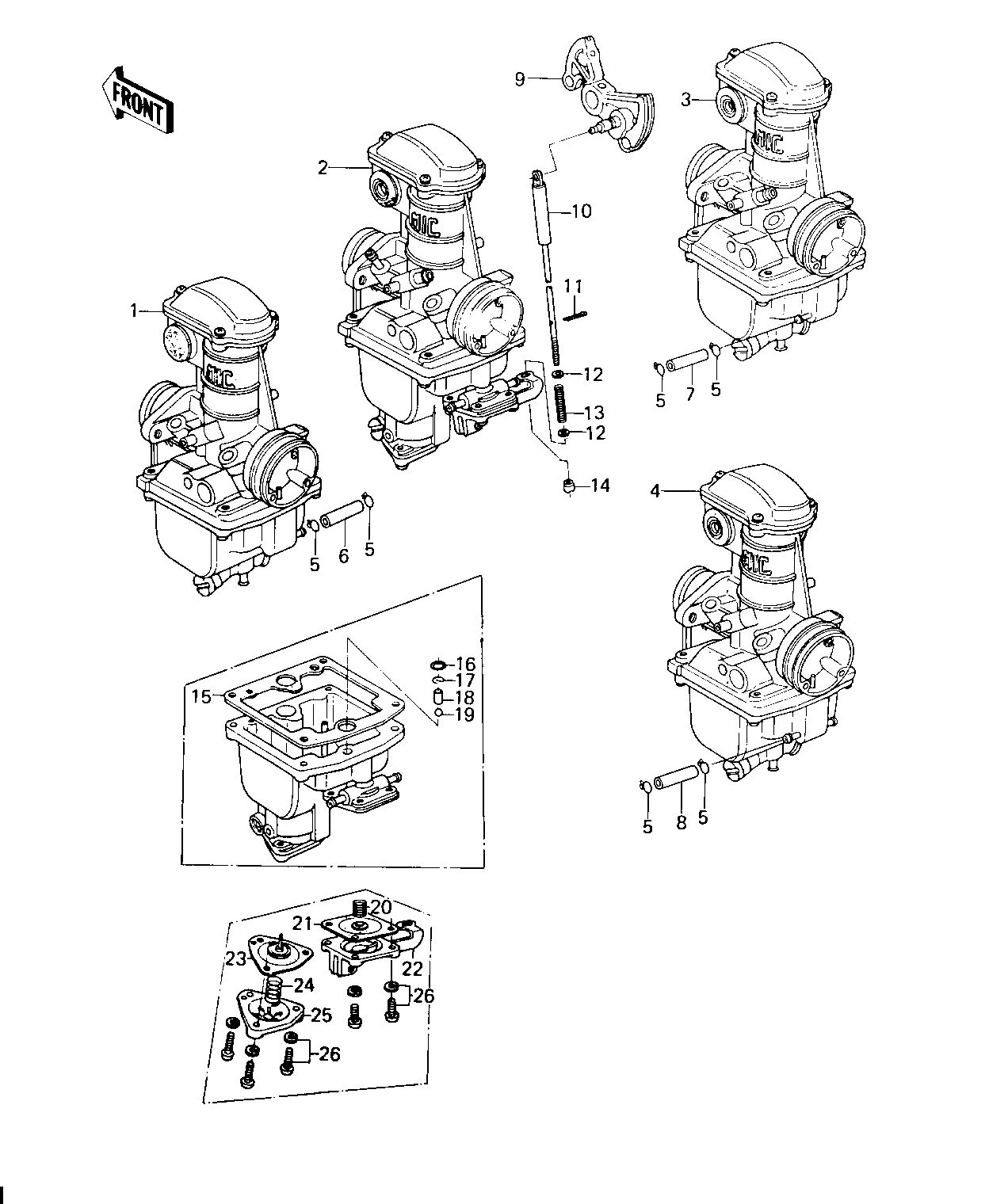

1979 SR - CARBURETORS/ACCELERATOR PUMP (USA) (KZ65
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CARBURETOR,L.H,OUTSID | 1 | 16001-1122 | 1 | ||
| CARBURETOR,L.H,INSIDE | 2 | 16001-1123 | 1 | ||
| CARBURETOR,R.H,INSIDE | 3 | 16001-1124 | 1 | ||
| CARBURETOR,R.H,OUTSID | 4 | 16001-1125 | 1 | ||
| CLAMP,TUBE | 5 | 92037-1124 | 6 | ||
| TUBE,3.5X7.5X47.5 | 6 | 92059-1072 | 1 | ||
| TUBE,3.5X7.5X64.5 | 7 | 92059-1071 | 1 | ||
| TUBE,3.5X7.5X47.5 | 8 | 92059-1072 | 1 | ||
| PULLEY,THROTTLE CABLE | 9 | 13236-1014 | 1 | ||
| ROD ASSY,PUMP | 10 | 46102-1007 | 1 | ||
| COTTER PIN,1.0X6 | 11 | 550D1006 | 1 | ||
| WASHER,PUMP ROD | 12 | 92022-1138 | 2 | ||
| SPRING,PUMP ROD | 13 | 92081-1138 | 1 | ||
| NUT,PUMP ROD | 14 | 92015-1075 | 1 | ||
| GASKET,FLOAT CHAMBER | 15 | 11009-1562 | 4 | ||
| "0" RING,MAIN JET COV | 16 | 16038-016 | 4 | ||
| CLAMP,SPRING,CHECK VL | 17 | 92037-1123 | 4 | ||
| WEIGHT,PUMP,CHECK VLV | 18 | 13042-1004 | 4 | ||
| BALL,STEEL,CHECK VALV | 19 | 92140-1003 | 4 | ||
| SPRING,PUMP DIAPHRAGM | 20 | 92081-1139 | 1 | ||
| DIAPHRAGM,PUMP | 21 | 43028-1012 | 1 | ||
| COVER ASSY,PUMP | 22 | 14025-1139 | 1 | ||
| DIAPHRAGM,SENSOR | 23 | 43028-1010 | 1 | ||
| SPRING,SENSOR DIAPHRA | 24 | 92081-1137 | 1 | ||
| COVER,SENSOR | 25 | 14025-1121 | 1 | ||
| SCREW-PAN-WS-CROS | 26 | 223B0414 | 7 |
